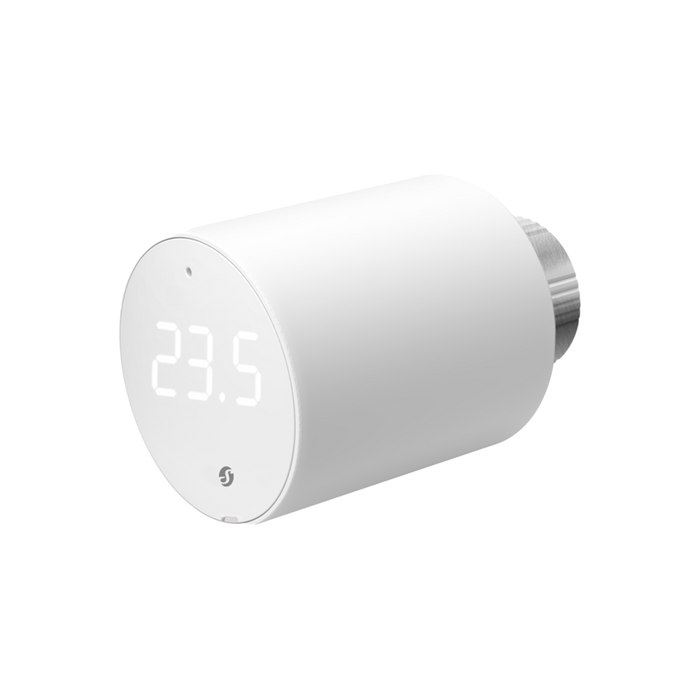

Shelly BLU TRV – Smart Thermostatic Radiator Valve (Bluetooth + Zigbee)
📘 Setup / Configuration Guide: Setting up the Shelly BLU Gateway
Setting up the Shelly TRV
Overview
Smart thermostatic radiator valve with Bluetooth and Zigbee connectivity for precise local temperature control.
Supports manual adjustment, smart scheduling, and integration with Shelly and Zigbee networks.
Key Features
• Bluetooth-operated with Wi-Fi via included Shelly BLU Gateway Gen3
• Zigbee connectivity for extended compatibility
• Manual temperature control via rotary dial
• ±0.1 °C adjustment precision
• Boost mode for rapid heating
• Rotatable digital display
• Up to 2-year battery life (2 × AA batteries included)
• Smart scheduling with daily programs
• Supports Shelly BLU H&T and Door/Window sensors
Specifications
| Item | Details |
|---|---|
| Model | Shelly BLU TRV |
| Connectivity | Bluetooth 4.2, Zigbee 3.0, Wi-Fi (via Gateway) |
| Battery | 2 × AA 1.5 V (included), up to 2 years |
| Gateway Power | 5 V DC via USB Type-A (< 1 W typical, 5 W peak) |
| Wi-Fi Frequency | 2.4 GHz (2412–2472 MHz) |
| Wi-Fi Range | Up to 50 m (outdoors) / 30 m (indoors) |
| Bluetooth Range | Up to 30 m (outdoors) / 10 m (indoors) |
| Mounting | M30 / 15 thread |
| Material | Nickel-plated brass ring |
| Operating Temp | −20 °C to +60 °C |
| Humidity | 25–80 % RH |
| Display | Rotatable digital screen with control dial |
Installation Notes

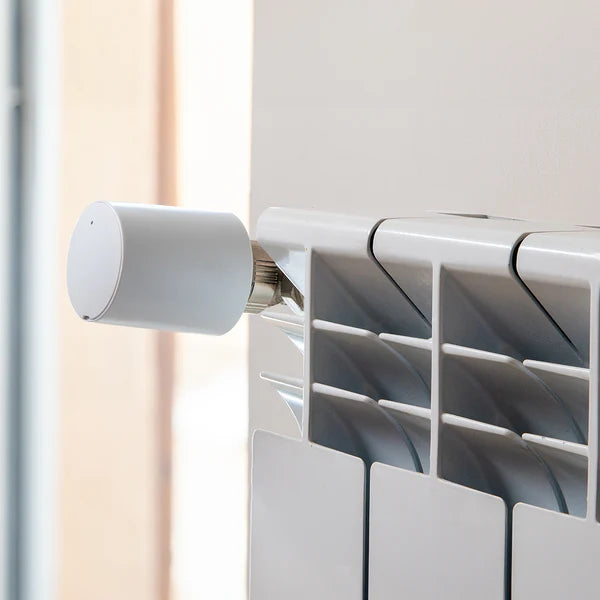

- Mount on a standard M30 radiator valve.
- Pair via Bluetooth, then connect through the included Shelly BLU Gateway Gen3 for Wi-Fi access.
- Optional external sensors can be linked for enhanced temperature control.
