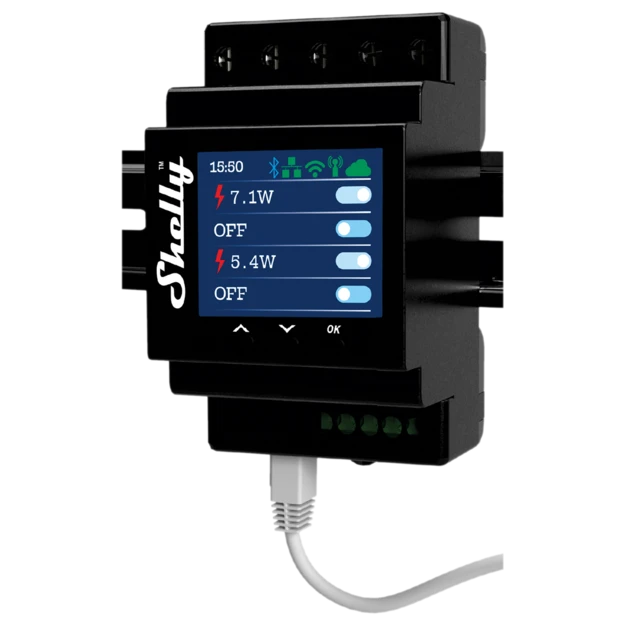

Shelly Pro 4PM

Original price £104.99 - Original price £104.99
Original price
£104.99
£104.99 - £104.99
Current price £104.99
Professional 4-channel DIN rail relay with power metering
  • LAN, Wi-Fi, and Bluetooth connection

  • 4 outputs, 16A each. Total device maximum of 40A

  • Precise power metering

  • Overpower and overvoltage protection of the load.

  • DIN rail mountable

  • 1.8-inch color screen with navigation keys

  • 1- phase control

  • Easy control through the Shelly app, various protocols, and platforms, as well as voice assistant

Specifications

POWER
Power supply AC 110-230V ±10%, 50/60Hz
Maximum load up to 16A per channel with up to 40A for the whole device
Power supply DC No
Channels 4 Channel
SPECIAL FUNCTIONS
Roller shutter mode No
Device temperature protection Yes
Overload protection Yes
Power measurement Yes
FEATURES
HTTP/HTTPS webhooks Yes
Custom scripts (mJs) Yes
Operational temperature -20°C to + 40 °C
Device power consumption < 4 W
Intelligent On/Off Yes
Local and remote control Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
UL Listed option No
CONNECTIVITY
Wireless Yes
Wi-Fi Protocol 802.11 b/g/n
Wi-Fi Radio frequency 2412 - 2484 MHz
Wi-Fi Radio signal power 1mW
Wi-Fi Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
Bluetooth Yes
Ethernet Yes
DIMENSIONS
Size 90mm x 52mm x 57mm
