HAS-H3: Fanless Home Assistant Server Pre-installed (Intel J4125, 4GB Ram, 128GB SSD)
Home Assistant Server - Ready to go
Building on the success of the HAS-T4 and HAS-T5, we bring you the higher spec HAS-H3!
This mini-computer comes preinstalled with Home Assistant so you can get on with setting up and managing your smart home!
Specs
The HAS-H3 is equipped with:
an Intel® Celeron J4125 Processor (4 Cores, 4 Threads, Base 2.0 GHz up to 2.7 GHz)
4 GB DDR4 RAM
128 GB SSD
Home Assistant Operating System (pre-installed)

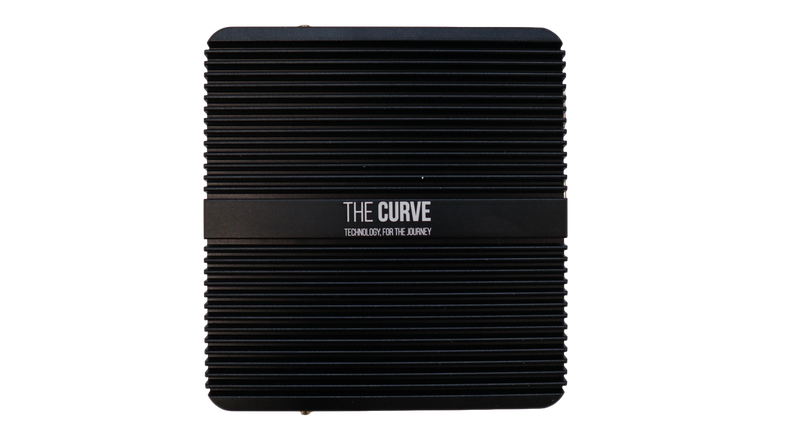

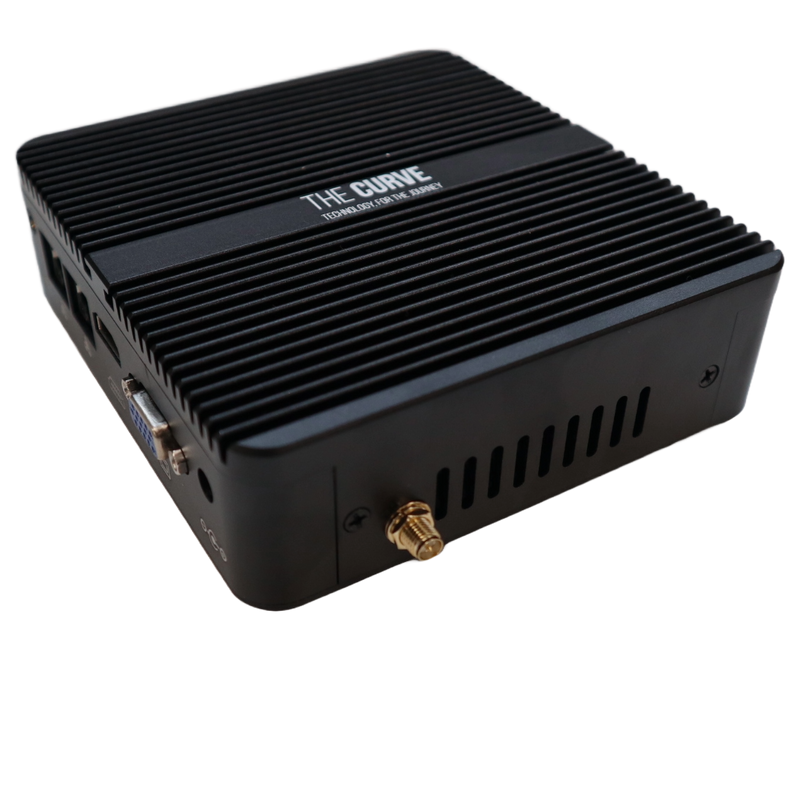

Utilising a compact, fanless mini-computer with excellent heat dissipation, silent operation, and robust industrial-grade design — ideal for reliable 24/7 smart-home control.
Connectivity Options
-

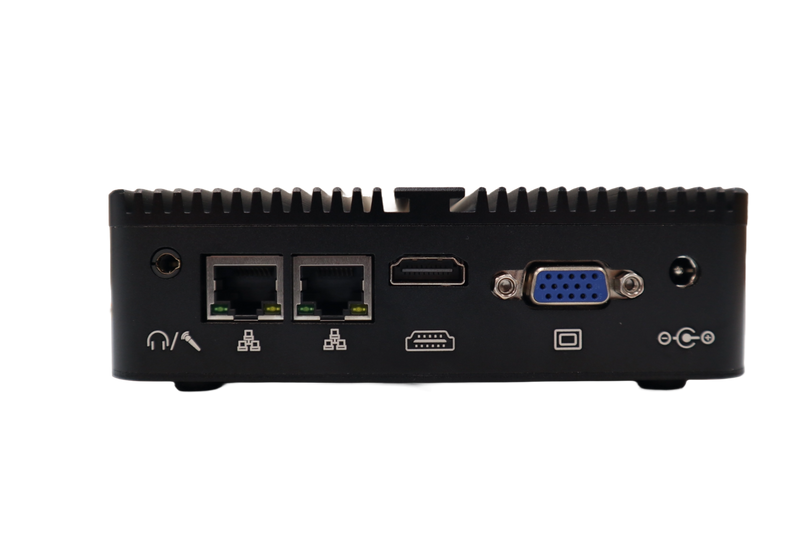

2 × Gigabit Ethernet (LAN)
-
1 × DC Jack (12 V, 3 A, UK Power Supply included)
-

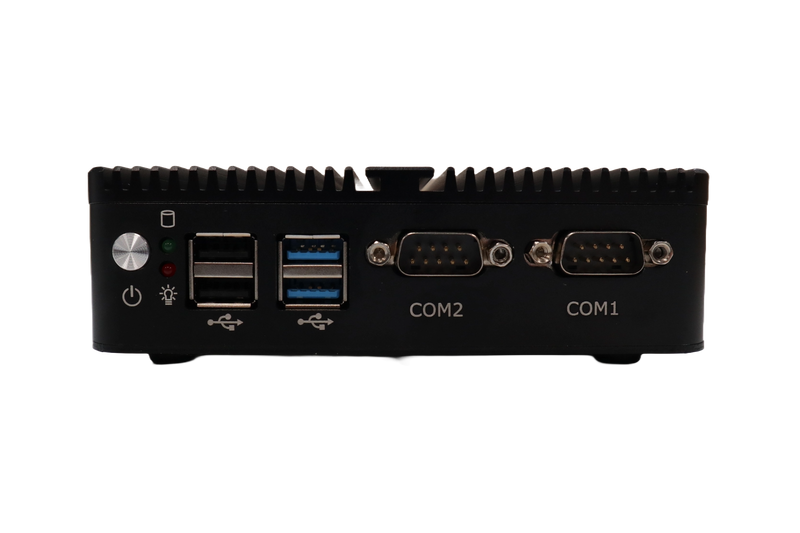

2 × USB 3.0
-
2 × USB 2.0
-
2 × RS232 COM Ports
-
1 × HDMI (4K @ 30 Hz)
-
1 × VGA (1080p @ 60 Hz)
-
1 × 3.5 mm Audio Jack
-
1 × mSATA SSD slot + 1 × SATA 3.0 (for 2.5″ HDD/SSD)
It also supports 2.4 GHz & 5.0 GHz Wi-Fi and Bluetooth 4.0, providing fast, stable wireless connectivity for your smart-home setup.
ZigBee support can be added using the SONOFF ZigBee 3.0 USB Dongle or the SMLIGHT SZLB-06 Zigbee LAN POE Coordinator.
Getting Started
We have put together a number of quick guides including a getting started guide which can be found here: https://smarthomeshopuk.com/ha
For the initial setup it is highly recommended to have a monitor or TV with HDMI support and a USB keyboard. It is possible to get started without these using wired Ethernet. Any troubleshooting is likely to require a screen and keyboard.
Learn More
Note: The T5 does have Bluetooth but it is not officially compatible with Home Assistant and is not guaranteed to work. We recommend a compatible dongle for Bluetooth support.
Please Note
Home Assistant is a community developed and maintained open source home automation that puts local control and privacy first.
We provide devices installed with Home Assistant for convenience
Further knowledge is still required to configure the various integrations and add-ons.
While we will do our best to support device issues we cannot feasibly provide support for software, integration or add-on issues.
If the device is booting and generally working then there is a good chance other issues relate to configuration.
