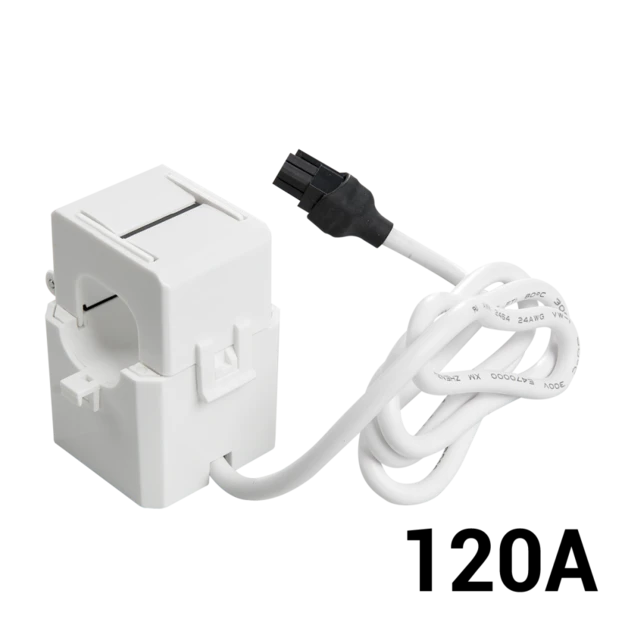

Current Transformer 120A

Original price £12.33 - Original price £12.33
Original price £12.33
£15.99
£15.99 - £15.99
Current price £15.99
Current transformers scale the large values of current to small, standardized values for measuring purposes. They provide a secondary current that is accurately proportional to the current flowing in its primary circuit. The current transformer presents a negligible load to the primary circuit.

Specifications

CURRENT TRANSFORMER 50A
Accuracy 1%
Core Ferrite core
Electrical Strength 3000VAC 1mA60s
Internal diameter 11mm
Load Resistance 20Ω
Rated Primary Current 50A
Rated Secondary Current 16.67mA
Saturation current ≥85A
Size 23,5mm x 41,5mm x 26mm
CURRENT TRANSFORMER 120A
Accuracy 1%
Core Ferrite core
Electrical Strength 3000VAC 1mA60s
Internal diameter 17mm
Load Resistance 20Ω
Rated Primary Current 120A
Rated Secondary Current 40mA
Saturation current ≥120A
Size 31mm x 45mm x 30mm
FEATURES
Compatible 50A Shelly EM
Compatible 120A Shelly EM, Shelly 3EM
