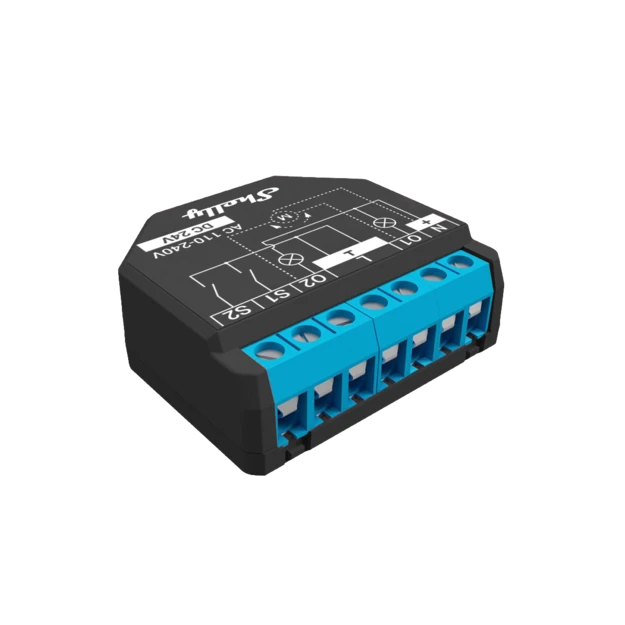

Shelly Plus 2PM
Original price
£28.99
-
Original price
£28.99
Original price
£28.99
£28.99
-
£28.99
Current price
£28.99
Wi-Fi-operated smart relay, 2 channels 16A total current (18A peak)
- 2 channels on the same phase
- Power metering on each channel
- Cover (roller) control- automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, and other bi-directional motors
- Scripting, schedules, and webhooks
- Designed to fit in most standard electrical boxes and switches
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
 |
Wireless No HUB required – Connect directly to your Wi-Fi at home. |
 |
Control Remotely with Free Shelly Cloud Control your Shelly remotely using a smartphone and the free Shelly Cloud. |
 |
Wide Range of Voltage Support Shelly Plus 2PM can be used to control a wide range of devices and appliances. |
 |
App & Smart Hub Integration Turns lights on and off from the Shelly app, or control your appliance with your voice with Amazon Alexa and Google Assistant integration. |
 |
Overheating Protection In case of high temperature Shelly will switch OFF the output to protect itself and your home appliances. |
 |
Schedule Schedule your lights to turn on and off automatically. |
 |
REST API Integrate Shelly with your existing home automation system using the Shelly Plus 2PM's REST API. |
 |
Power Metering Precise monitoring of your appliances power consumption. |
Smart Home Compatible
Integrate Shelly with Amazon Alexa, Google Assistant and Home Assistant.
You can also download the Shelly app from Google Play and the App Store.
 |
 |
 |
Resources:
Specification
| POWER | |
|---|---|
| Power supply AC | 110-240V ±10%, 50/60Hz |
| Power supply DC | 24 V ±10%, |
| Channels | 2 channels |
| Max. current per channel | 10A |
| Max. total device current | 16A (18A peak) |
| Max. switching voltage | 240 VAC / 30 VDC |
| SPECIAL FUNCTIONS | |
| Dry contacts | No |
| Cover (roller) control | Yes, with position control- roller shutters, blinds, awnings, curtains, gates, shades, sliding door, garage door, bi-directional AC motors |
| Overload protection | Yes |
| Power measurement | Yes |
| Overtemperature protection | Yes |
| Working without a neutral line | No |
| FEATURES | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts (mJs) | Yes |
| Operational temperature | -20°C to + 40 °C |
| Device power consumption | < 1.4 W |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2400 – 2500 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| DIMENSIONS | |
| Size | 42 x 38 x 17mm |
