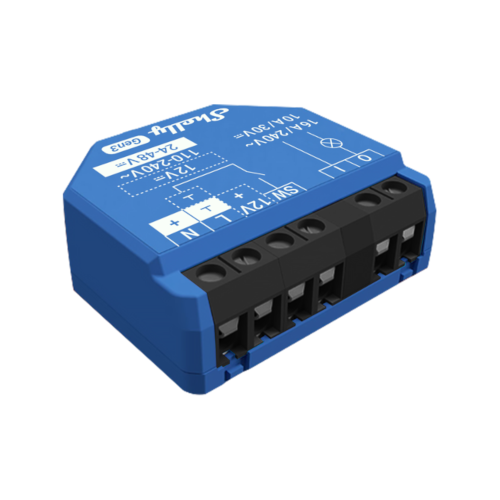

Shelly 1 Gen3
Overview
Shelly 1 Gen3 is a single-channel WiFi-operated smart relay with dry (potential-free) contacts, designed for controlling a wide range of electrical appliances and systems. With support for AC and DC power, it is suitable for lighting, sockets, garage doors, gates, irrigation systems, boilers, and contactor control.
Powered by Shelly’s Gen3 platform with an 8MB ESP processor, Shelly 1 Gen3 delivers faster responsiveness, improved reliability, and expanded integration options. It connects directly to Wi-Fi with no hub required and includes Bluetooth for quick onboarding and gateway functionality.

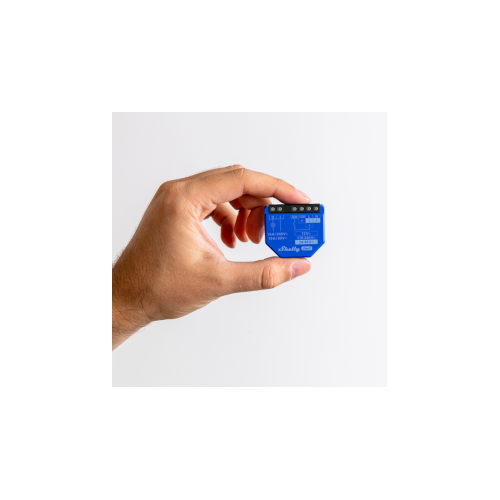

Its compact form factor allows installation behind wall switches or inside electrical enclosures, while the dry contact relay enables safe switching of different voltage sources independent of the device’s power supply.
Key Features
• 1-channel smart relay, up to 16A
• Dry (potential-free) contacts for flexible voltage control
• WiFi operated – no hub required
• Bluetooth for easy inclusion and gateway functionality
• Powered by Shelly Gen3 ESP processor with 8 MB memory
• Supports AC and DC power supply
• Supports scripting, schedules, scenes, and local actions
• Compatible with MQTT, WebSocket, HTTPS, UDP, TLS, and KNXnet/IP
• Acts as a Wi-Fi range extender and Bluetooth gateway
• Works with Shelly Smart Control app, Home Assistant, and other platforms
Technical Specifications
Power
Power supply (AC): 110–230 V ±10%, 50/60 Hz
Power supply (DC):
• 24–48 V DC
• 12 V DC (stabilized)
Max switching voltage:
• 240 V AC
• 30 V DC
Max switching current:
• 16 A (AC)
• 10 A (DC)
Power consumption: < 1.2 W
Features
Dry contacts: Yes
Power measurement: No
Overload protection: No
Device temperature protection: Yes
Roller shutter mode: No
Custom scripts (mJS): Yes
HTTP/HTTPS webhooks: Yes
Channels: 1
Environmental
Operating temperature: -20°C to 40°C
Humidity: 30% to 70% RH
Connectivity
Wi-Fi protocol: 802.11 b/g/n (2.4 GHz)
Wi-Fi range (depending on local conditions):
• Up to 50 m outdoors
• Up to 30 m indoors
Bluetooth: Yes
Bluetooth protocol: 4.2
Bluetooth range (depending on local conditions):
• Up to 30 m outdoors
• Up to 10 m indoors
Physical
Dimensions (H × W × D): 37 × 42 × 16 mm
Installation Notes
• Suitable for AC or DC installations
• Dry contacts allow switching of independent voltage sources

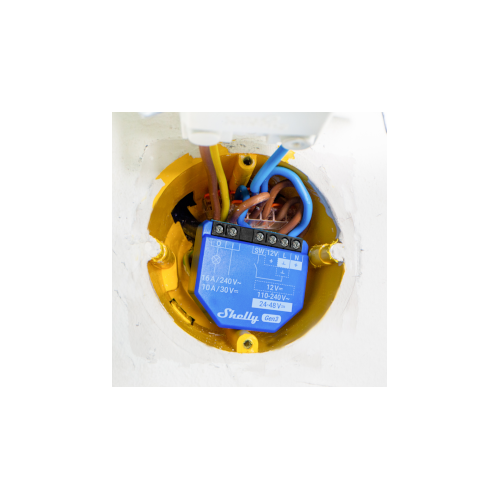

• Designed for installation behind wall switches or inside electrical enclosures
• Requires basic electrical knowledge; professional installation recommended
• Does not include power metering
In the Box
• Shelly 1 Gen3
• User guide
