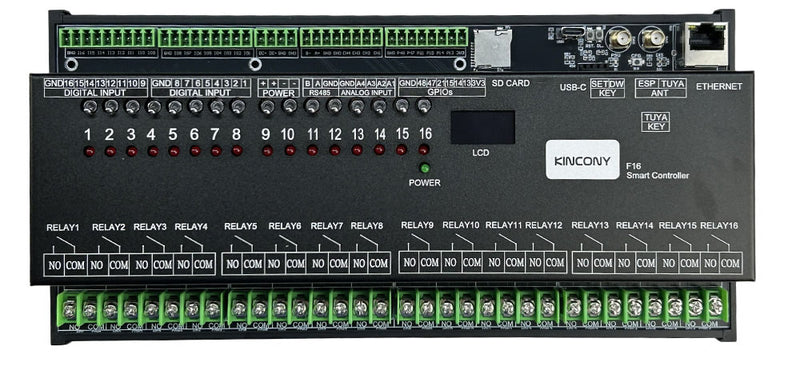

KinCony F16 – 16-Channel ESP32-S3 Relay Controller (DIN-Rail)

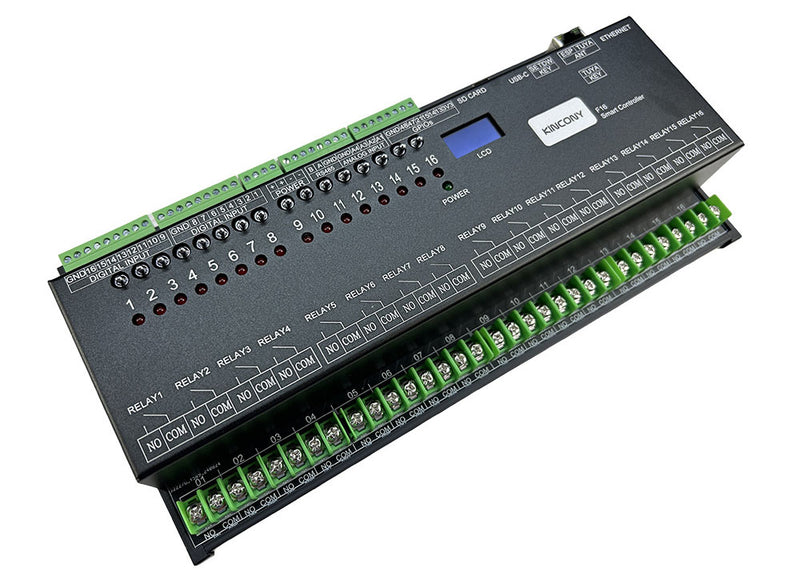

Overview
The KinCony F16 is a DIN-rail mounted 16-channel ESP32-S3 relay controller designed for smart home, industrial control, and automation projects.
It includes removable OMRON relays, Ethernet, RS485, 1-Wire, analog inputs, RF433 receiver, SD card support, and a DS3231 RTC for time-critical automation.
Compatible with ESPHome, Home Assistant, Tasmota, Arduino, ESP-IDF, and MicroPython.
Key Features
• ESP32-S3-WROOM-1U (N16R8) processor module
• 16 removable OMRON relay channels (COM/NO, up to 250VAC/16A)
• Ethernet (LAN 100 Mbps), Wi-Fi, Bluetooth
• RS485 interface for Modbus/serial automation
• 16 dry-contact isolated inputs (500 m cable supported)
• 4 × 1-Wire GPIO (with built-in pull-ups)
• 4 analog inputs → 2 × 0–5V (A1/A2), 2 × 4–20mA (A3/A4)
• 2 free GPIOs exposed directly from the ESP32-S3
• DS3231 high-precision RTC with battery holder
• RF433MHz receiver socket
• SD card slot (SPI bus)
• LCD display showing IP address and Tuya connection state
• Manual relay control buttons (work even if firmware fails)
• DIN-rail mountable enclosure
Technical Specifications
| Item | Details |
|---|---|
| Model | KinCony F16 |
| Processor | ESP32-S3-WROOM-1U (N16R8) |
| Power Supply | 12/24V DC (default 12V OMRON relays installed) |

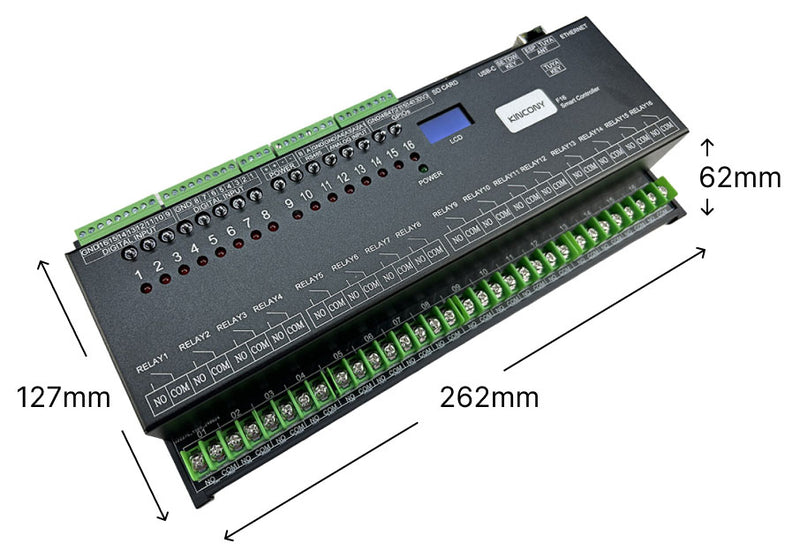

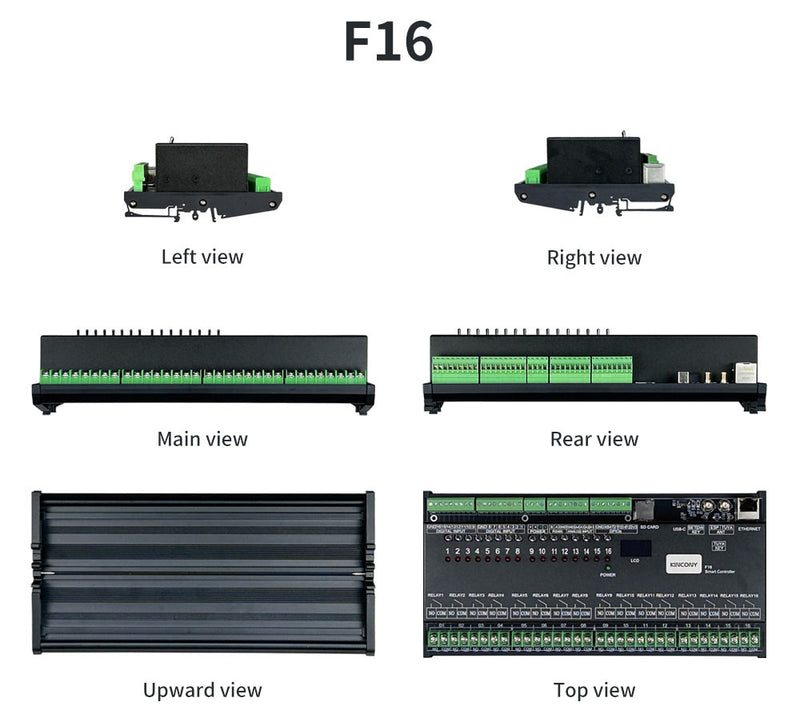

| Dimensions | 262 × 127 × 62 mm |
| Networking | Ethernet (RJ45), Wi-Fi, Bluetooth |
| Interfaces | RS485, USB-C, RF433 receiver, SD card (SPI), LCD (SSD1306 I2C) |
| RTC | DS3231 (high accuracy) |
| Relays | 16 × OMRON removable relays (COM/NO, 250VAC/16A, 30VDC/16A) |
| Dry Contact Inputs | 16-channel, optocoupler isolated, long-distance |
| Analog Inputs | 2 × 0–5V, 2 × 4–20mA |
| GPIO | 4 × 1-Wire GPIO, 2 × free GPIO |
| Installation | DIN-rail |
Installation / Application Notes
• Suitable for Home Assistant via ESPHome, Tasmota, or Modbus (RS485).
• Each relay includes manual ON/OFF buttons for fallback control during firmware issues.
• 1-Wire GPIOs support temperature sensors such as DS18B20.
• Dry contact inputs are suitable for wall switches, door sensors, and long-distance control lines.
• The RF433 receiver allows integration with basic RF remotes.
• Ethernet is recommended for stable automation networks.
• YAML examples, Arduino code, and pin mappings are available via KinCony documentation.
