Shelly Wave PM Mini – Z-Wave Power Meter (No Switching, 16A)
Overview
Shelly Wave PM Mini is a compact Z-Wave power meter designed for precise energy monitoring of AC-powered circuits without switching or relay control. It is intended for permanent in-wall installations where space is limited and where only measurement—not control—is required, such as monitoring fixed appliances or individual circuits.
Key Features
• Power consumption monitoring only — no relay or load switching
• Measures electrical loads up to 16 A (3840 W)

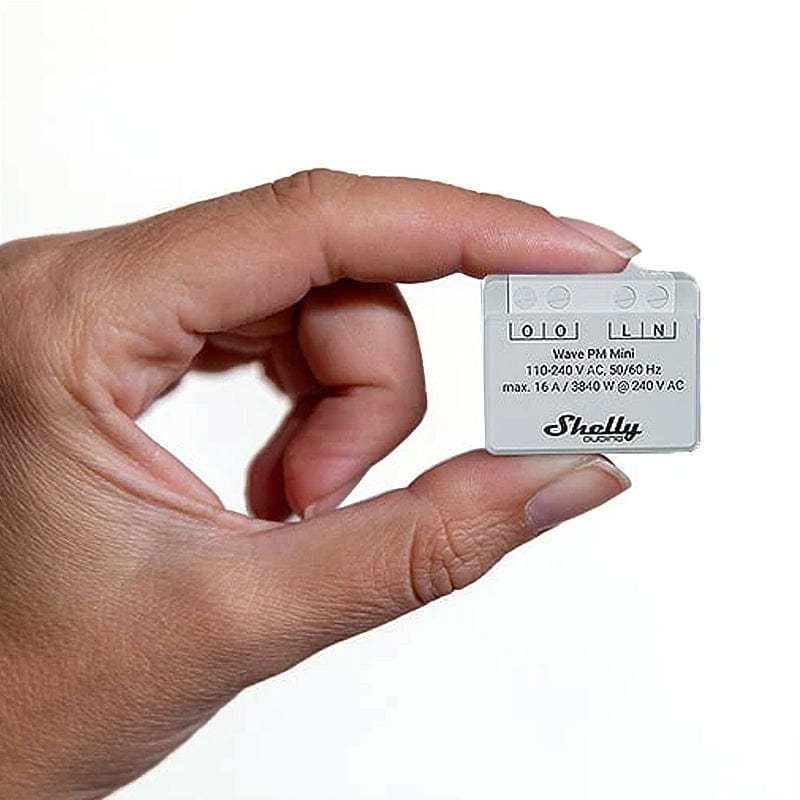

• Mini form factor designed for tight wall boxes and crowded enclosures
• Z-Wave 800 Series chipset for improved range and reliability
• SmartStart support for fast and secure Z-Wave inclusion
• Supports Z-Wave associations for local, hub-independent reporting
• Extremely low standby power consumption (< 0.3 W)
• OTA firmware updates via compatible Z-Wave hubs
• Security 2 Authenticated (S2) encryption
Technical Specifications
Electrical
Power Supply: 110–240 V AC, 50/60 Hz
Max Measurement Power: 3840 W
Max Measurement Current: 16 A
Standby Power Consumption: < 0.3 W
Power Monitoring: Yes
Overheating Protection: Yes
Z-Wave
Protocol: Z-Wave Plus
Frequency Band: 868.4 MHz (UK/EU)
Chipset: Z-Wave S800 (800 Series)
Security: S2 Authenticated
Repeater Function: Yes
Typical Indoor Range: Up to 40 m (environment dependent)
Physical
Dimensions: 29 × 35 × 16 mm
Weight: 13 g
Mounting: Wall box (in-wall installation)
Terminal Torque: 0.4 Nm
Conductor Size: 0.5–1.5 mm²
Material: Plastic
Colour: Light grey
Environmental
Operating Temperature: -20 °C to 40 °C
Humidity: 30–70% RH
Max Altitude: 2000 m

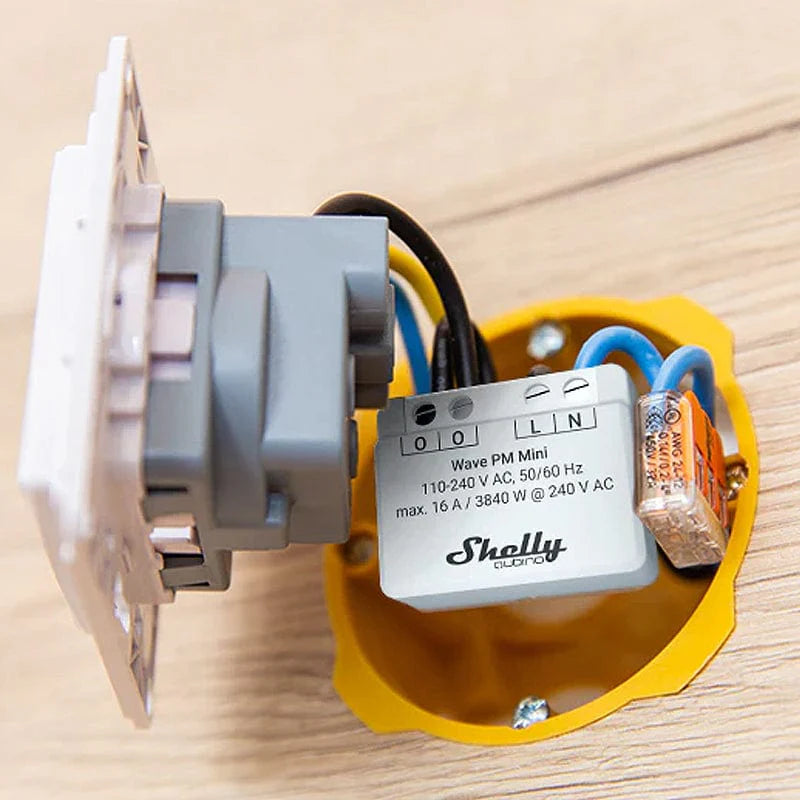

Installation Notes
• Monitoring-only device — it does not switch, interrupt, or control power
• Requires a compatible Z-Wave hub (not included)
• Neutral wire may be required depending on the monitored circuit
• Designed for fixed wiring inside wall boxes or enclosures
• Suitable for monitoring appliances, circuits, or fixed loads
• Indoor use only

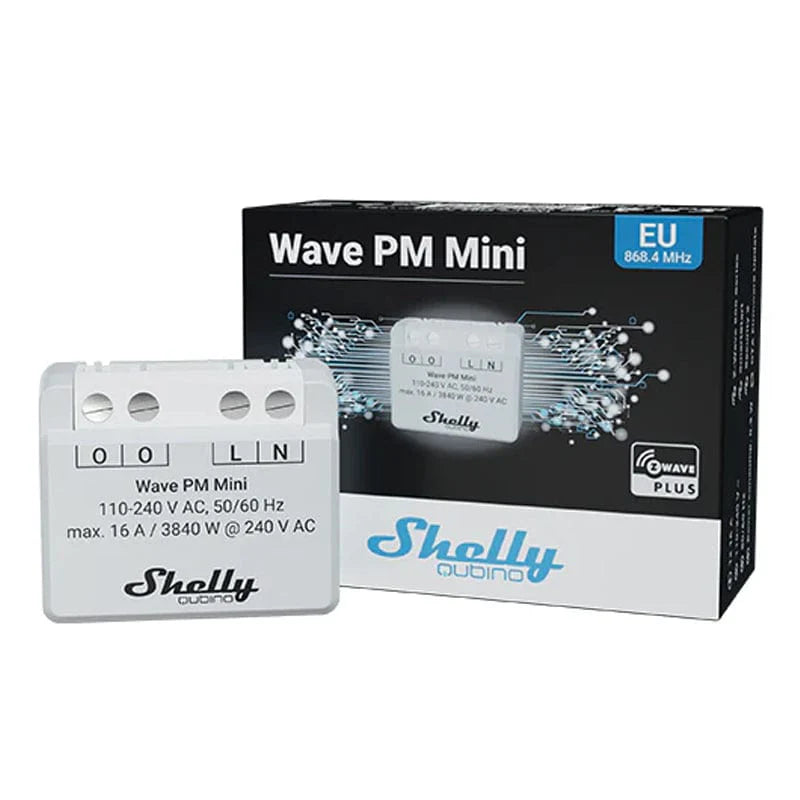

In the Box
• Shelly Wave PM Mini
• Quick start guide
