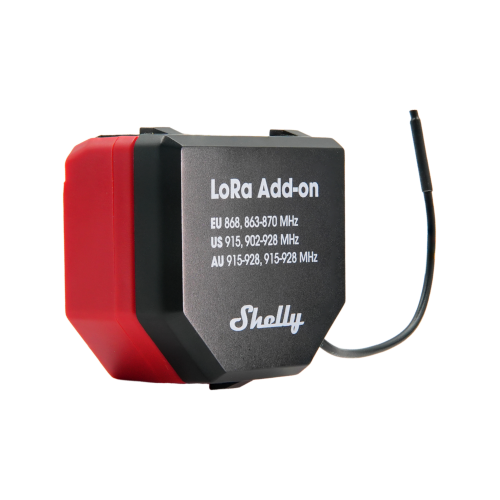

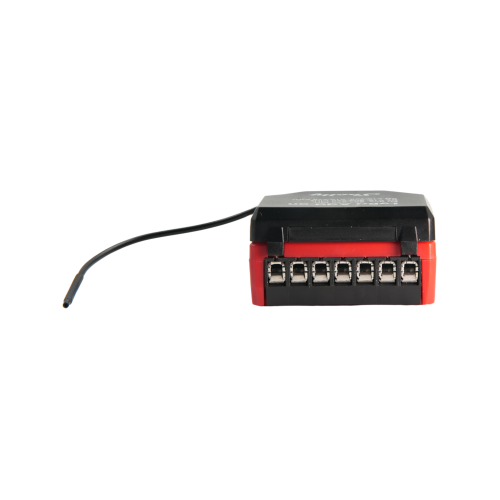

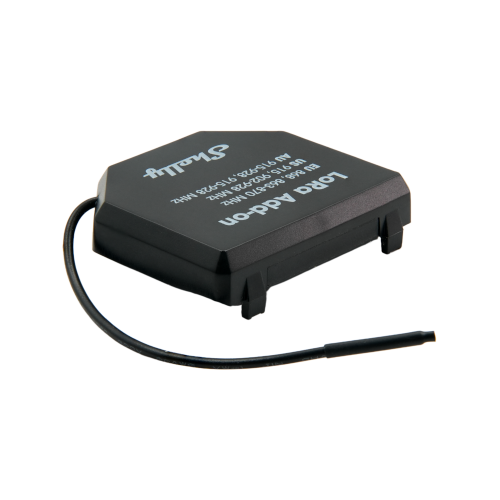

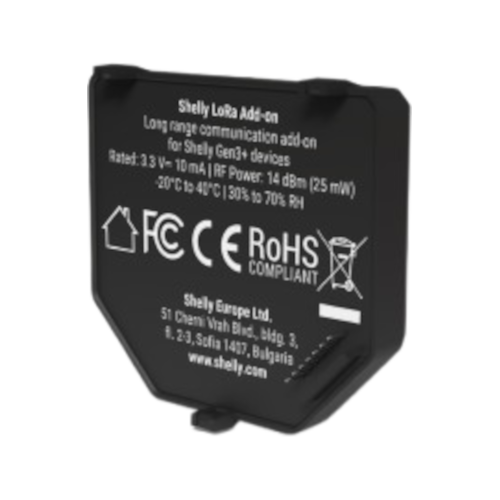

Shelly LoRa Add-on – Long-Range Communication Module for Shelly Gen3 & Gen4
Overview
Shelly LoRa Add-on is a long-range communication module designed to extend connectivity for compatible Shelly Gen3 and Gen4 devices using LoRa technology. It enables reliable, low-power communication over distances of up to 5 km (line of sight), making it suitable for applications where Wi-Fi or other short-range technologies are not practical.
The add-on connects directly to supported Shelly devices via the proprietary serial interface and is powered by the host device. It is intended for use cases such as remote buildings, outdoor installations, agricultural systems, and infrastructure automation.
LoRa communication requires at least two Shelly devices, each equipped with a Shelly LoRa Add-on—one acting as the transmitter and one as the receiver.
Key Features
• Long-range LoRa communication up to 5 km (line of sight)
• Uses EU868 LoRa frequency band
• Designed for Shelly Gen3 and Gen4 devices
• Powered directly from the connected Shelly device (3.3 V)
• Reliable operation in obstructed or hard-to-reach areas
• Supports custom scripting for advanced use cases
• Compact form factor for seamless integration
• Suitable for remote automation and monitoring scenarios
Technical Specifications
Power
Power supply: 3.3 V (from compatible Shelly device)
Power consumption: < 150 mW
Connectivity – LoRa
LoRa RF band: EU868
Max RF power: < 14 dBm
Operational range (depending on local conditions):
• Up to 5,000 m / 16,400 ft (line of sight)
Compatibility
Shelly Gen3 devices:
• Shelly 1 Gen3
• Shelly 1PM Gen3
• Shelly 2PM Gen3
• Shelly EM Gen3
• Shelly Dimmer 0/1-10V PM Gen3
• Shelly DALI Dimmer Gen3
Shelly Gen4 devices:
• Shelly 1 Gen4
• Shelly 1PM Gen4
• Shelly 2PM Gen4
Environmental
Operating temperature: -20°C to 40°C / -5°F to 105°F
Physical
Dimensions (H × W × D): 40 × 42 × 11 mm
Mounting: Via Shelly proprietary serial interface (direct attachment to compatible device)
Installation Notes
• Requires a compatible Shelly Gen3 or Gen4 device
• Powered directly by the host Shelly device
• LoRa communication requires two Shelly LoRa Add-ons (one per device)
• Intended for long-range, low-bandwidth communication
• Not a standalone device
In the Box
• Shelly LoRa Add-on
• User documentation
