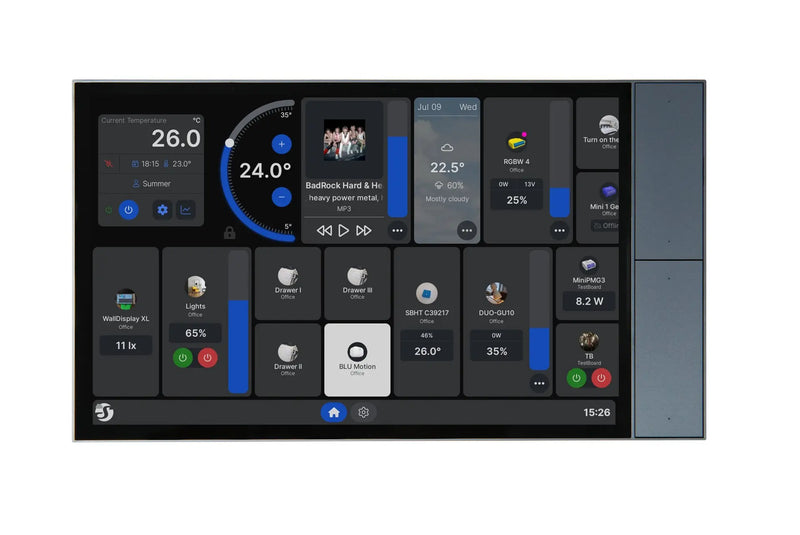

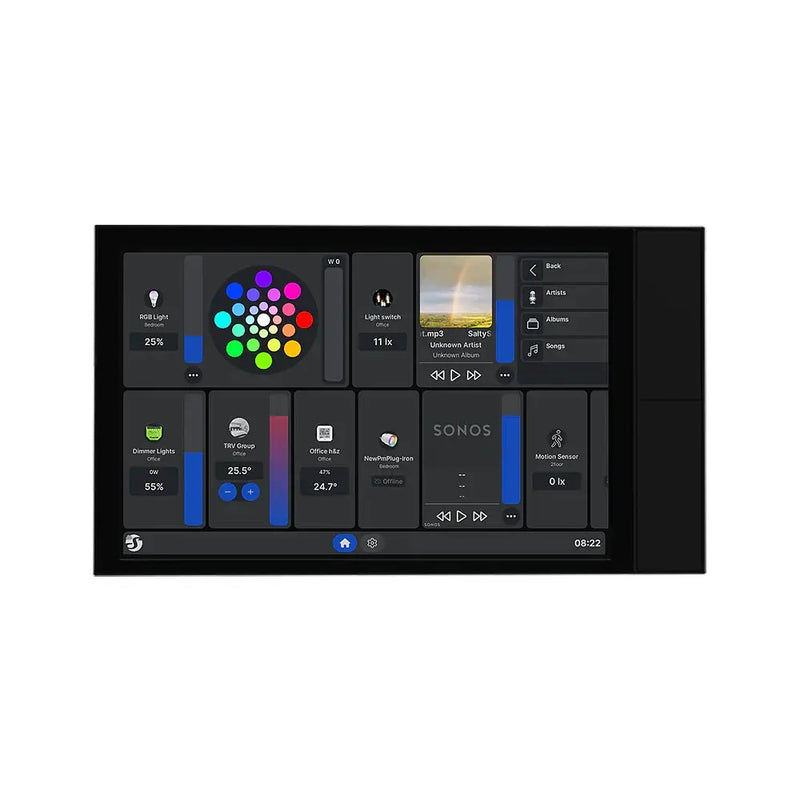

Shelly Wall Display XL – 10.1” Smart Home Control Panel

Overview

Shelly Wall Display XL is a large-format wall-mounted smart home control panel designed to act as a central command interface for Shelly devices and integrated smart home systems. Featuring a 10.1” HD colour touchscreen, ultra-fast quad-core processor, and built-in relay switching, it delivers powerful, responsive control in residential, hospitality, and commercial environments.

Installed directly into a standard EU electrical wall box, the Wall Display XL provides both touch-based control and four physical, customisable buttons for quick actions and scenes. It supports Wi-Fi 6 dual-band and Bluetooth 5.4, integrates seamlessly with Home Assistant, and allows full customisation of the on-screen interface.

With integrated stereo speakers, media playback, internet radio support, and built-in sensors (proximity and brightness), the Wall Display XL goes beyond basic control—acting as a smart dashboard, media interface, and automation hub for modern smart buildings.

Key Features

• Large 10.1” HD colour touchscreen
• Ultra-fast quad-core CPU for instant response
• Wall-box installation (EU standard switch boxes)
• Built-in relay for controlling loads up to 1500 W
• Four physical, customisable buttons for scenes and actions
• Wi-Fi 6 dual-band (2.4 GHz & 5 GHz) connectivity
• Bluetooth 5.4 with Bluetooth & SONOS speaker support
• Integrated dual 2 W stereo speakers
• Built-in proximity sensor and ambient light (lux) sensor
• Power monitoring for connected Shelly PM devices
• Fully customisable user interface
• Integrated media player and internet radio
• Compatible with Shelly Smart Control App and Home Assistant

Technical Specifications

Physical

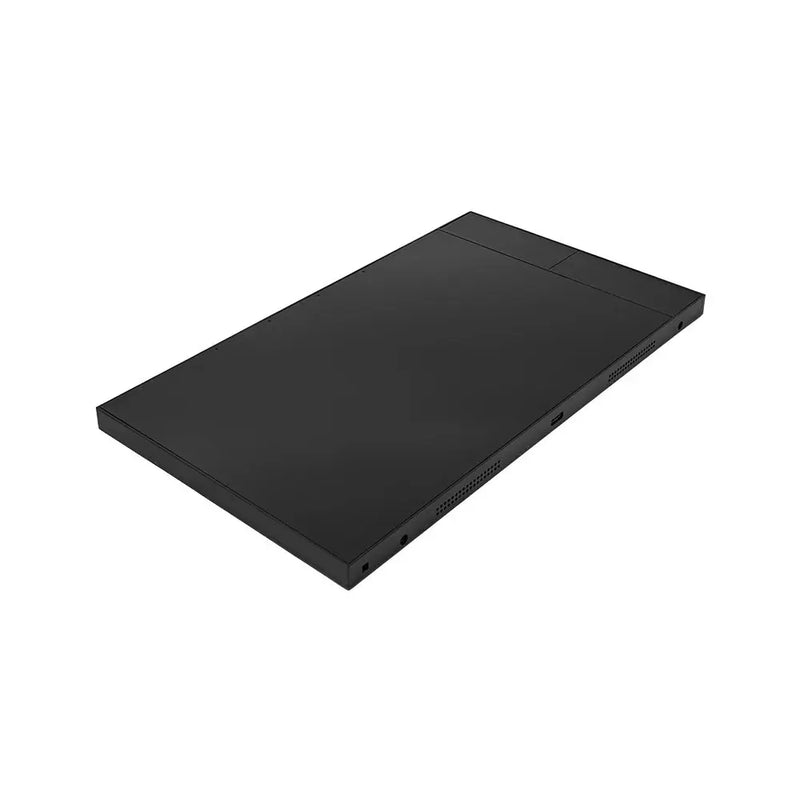

Dimensions (H × W × D): 155.8 × 272.5 × 38.3 mm
Weight: 920 g
Touchscreen: 5-point capacitive (G+FF)
Screen resolution: 1280 × 752 px
Mounting: Wall box
Shell material: Metal stamping, coated PC, glass
Shell colour:
• Black with Grey frame
• Black with Black frame

Speaker: 2 × 2 W (BOX sound cavity)

Environmental
Operating temperature: -20°C to 40°C
Humidity: 30% to 70% RH
Max altitude: 2000 m

Electrical
Power supply: 100–240 V~ 50/60 Hz
Power consumption: < 15 W
USB-C power input: 5 V⎓ / 3 A

Control & Outputs
Power button: 1 (screen on/off)
Control buttons: 4 configurable physical buttons

Relay output (AC):
Max switching voltage: 240 V~
Max switching current: 5 A
Max load: up to 1500 W

USB-C output:
Voltage: 5 V⎓
Current: 0.5 A

Sensors
Light (lux) sensor: Yes
Proximity sensor: Yes (≤ 1 m)
Microphone: Yes (four-microphone array)
Internal temperature sensor: No
Humidity sensor: No
G-sensor: No

Connectivity – Wi-Fi
Protocol: Wi-Fi 6 (dual band)
RF bands: 2.4 GHz & 5 GHz
Max RF power: < 20 dBm
Range (depending on local conditions):
• Up to 30 m indoors
• Up to 50 m outdoors

Connectivity – Bluetooth
Protocol: Bluetooth 5.4
RF band: 2402–2480 MHz
Max RF power: < 4 dBm
Range (depending on local conditions):
• Up to 10 m indoors
• Up to 30 m outdoors

Microcontroller & System
CPU: Rockchip RK3566 Quad-Core Cortex-A55 @ 1.8 GHz
RAM: 2 GB
Flash storage: 32 GB
Operating system: Android 11

Firmware Capabilities
Schedules: 20
Webhooks (URL actions): 20 (5 URLs per hook)
Scripting: No
MQTT: Yes

Installation Notes

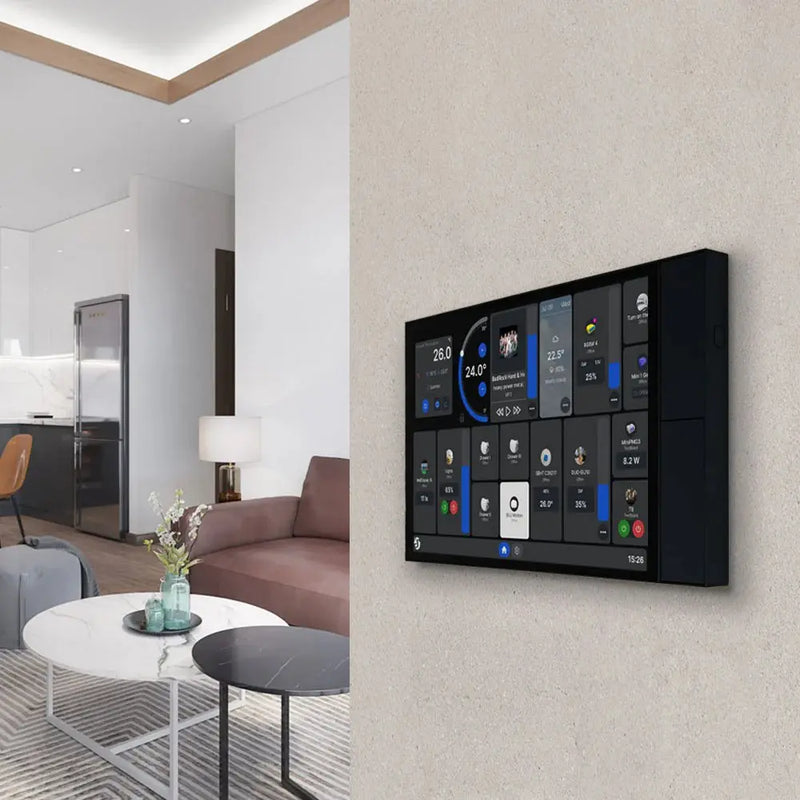

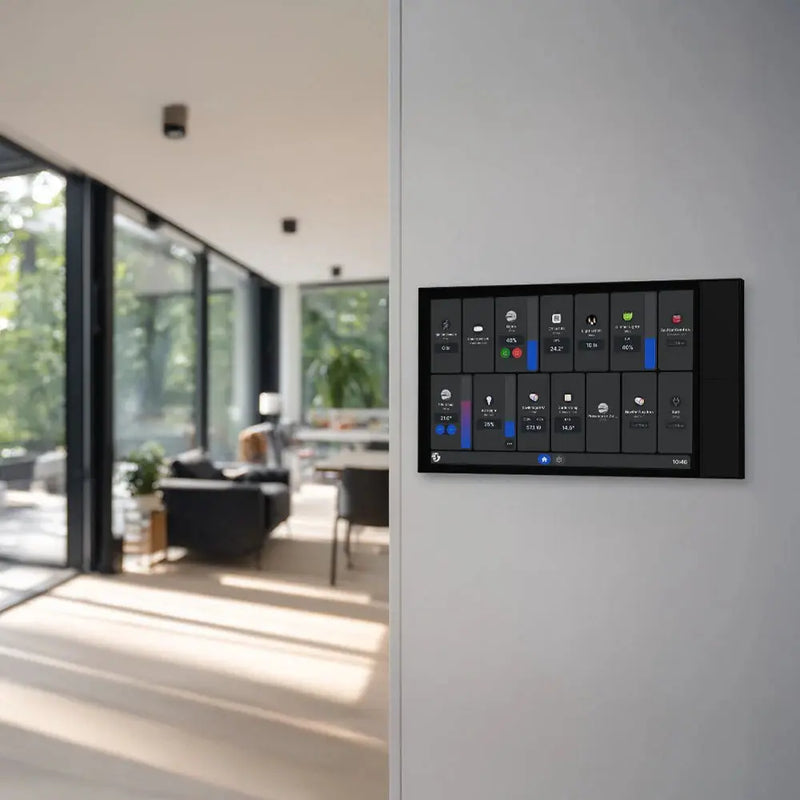

• Designed for fixed wall-box installation
• Requires mains power (100–240 V AC)
• Built-in relay allows direct control of a connected load
• Suitable for residential, hospitality, and commercial deployments
• Ideal as a central smart home dashboard

In the Box

• Shelly Wall Display XL
• Mounting hardware
• User guide
