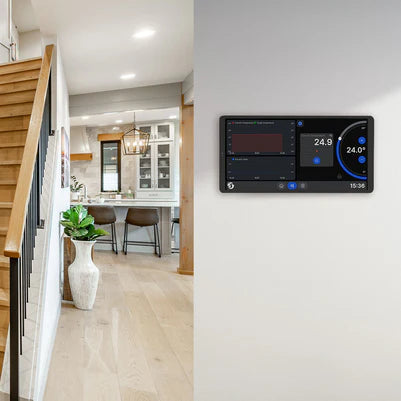

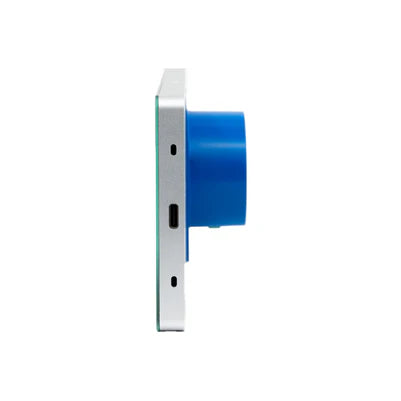

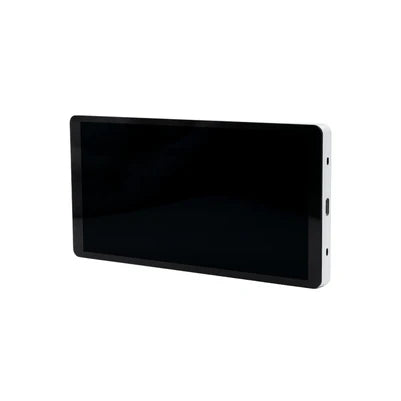

Shelly Wall Display X2i – Smart Wall-Mounted Control Panel with Touchscreen

Overview

Shelly Wall Display X2i is a wall-mounted smart home control panel designed to provide fast, centralised control of your Shelly ecosystem and connected smart home devices. It features a large 6.95” colour touchscreen, an ultra-fast quad-core processor, and an interchangeable power base that enables both power supply and physical circuit control.

The included 1-output power base allows direct control of a single lighting or appliance circuit via an integrated 5 A relay, while also supporting power monitoring for connected Shelly PM devices. With Wi-Fi 6 dual-band and Bluetooth 5.0 connectivity, the Wall Display X2i delivers fast response times and reliable communication.

Designed for flexibility, it supports 100–240 V AC or USB-C power, can be mounted in standard wall boxes, and allows full interface customisation. Integrated sensors (LUX, proximity, and G-sensor) enable gesture-based interaction and adaptive screen behaviour, while the built-in speaker allows audio feedback and integration with Bluetooth and SONOS speakers.

Key Features

• 6.95” colour touchscreen (portrait or landscape orientation)
• Ultra-fast quad-core CPU for instant response
• Interchangeable power base (1-output base included)
• Integrated 5 A relay for single-circuit control
• Power monitoring for compatible Shelly PM devices
• Wi-Fi 6 dual-band (2.4 GHz & 5 GHz) connectivity
• Bluetooth 5.0 with speaker and SONOS support
• Built-in LUX sensor, proximity sensor, and G-sensor
• Integrated 0.8 W speaker and microphone
• Powered via 100–240 V AC or USB-C (5 V)

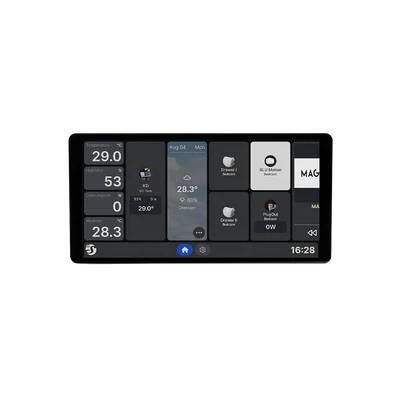

• Customisable home screen and simple navigation
• Compatible with Shelly Smart Control app and Home Assistant

Technical Specifications

Physical

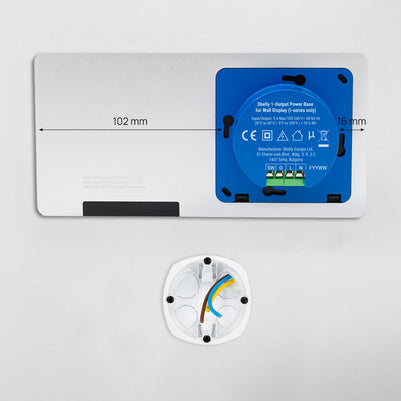

Dimensions (H × W × D):
• With power base: 87 × 178 × 36 mm
• Without power base: 87 × 178 × 11 mm

Weight:
• With power base: 292 g
• Without power base: 246 g

Touchscreen: 5-point capacitive
Screen resolution: 1440 × 720 px
Mounting: Wall box
Shell material: Plastic, aluminium, glass
Shell colour:
• Display: Black or Silver
• Power base: Blue

Speaker: 0.8 W × 1

Environmental
Operating temperature: -20°C to 40°C
Humidity: 30% to 70% RH
Max altitude: 2000 m

Electrical
Power supply: 100–240 V~ 50/60 Hz
Power consumption: < 5 W
USB-C power input: 5 V⎓, 1 A

Output (Power Base)
Max switching voltage: 240 V~
Max switching current: 5 A

USB-C output:
• Voltage: 5 V⎓
• Current: 0.5 A

Sensors
Light (LUX) sensor: Yes
Proximity sensor: Yes
G-sensor (gestures): Yes
Microphone: Yes

Connectivity – Wi-Fi
Protocol: Wi-Fi 6 (dual band)
RF bands: 2.4 GHz, 5 GHz
Max RF power: < 20 dBm
Range (depending on local conditions):
• Up to 30 m indoors
• Up to 50 m outdoors

Connectivity – Bluetooth
Protocol: Bluetooth 5.0
RF band: 2402–2480 MHz
Max RF power: < 4 dBm
Range (depending on local conditions):
• Up to 10 m indoors
• Up to 30 m outdoors

Microcontroller & System
CPU: Rockchip RK3326-S Quad-Core Cortex-A35 @ 1.5 GHz
RAM: 2 GB
Flash storage: 8 GB
Operating system: Android 11

Firmware Capabilities
Schedules: 20
Webhooks (URL actions): 20 (2 URLs per hook)
Scripting: No
MQTT: Yes

Installation Notes

• Designed for wall-box installation
• Can be powered via mains AC or USB-C
• Interchangeable power base allows future expansion
• Integrated relay supports direct control of one circuit
• Suitable as a central smart home dashboard

In the Box

• Shelly Wall Display X2i
• 1-output power base
• Mounting hardware
• User guide
