Sale!

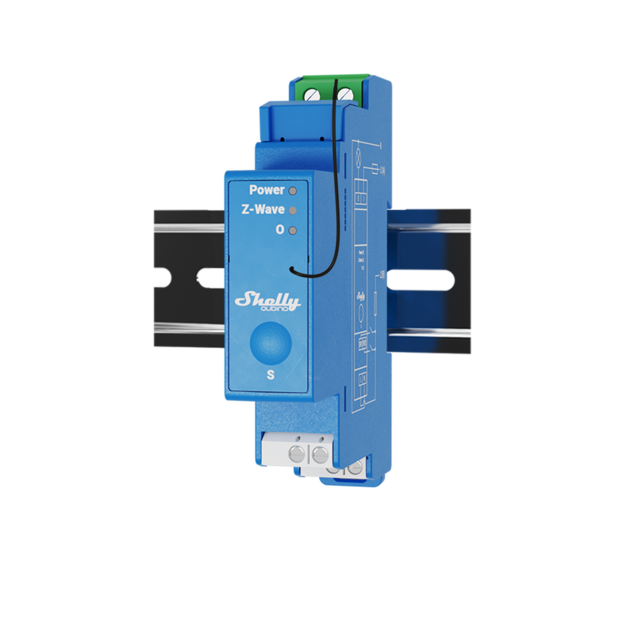

Shelly Wave Pro 1

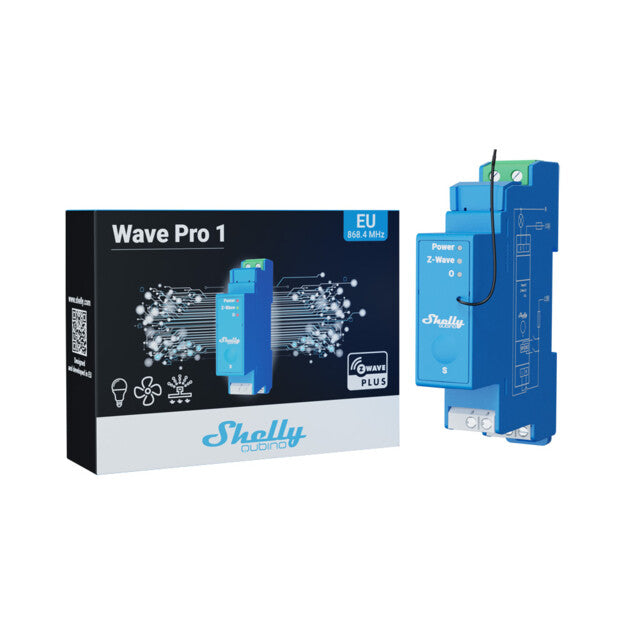

Shelly Wave Pro 1 - Image 2

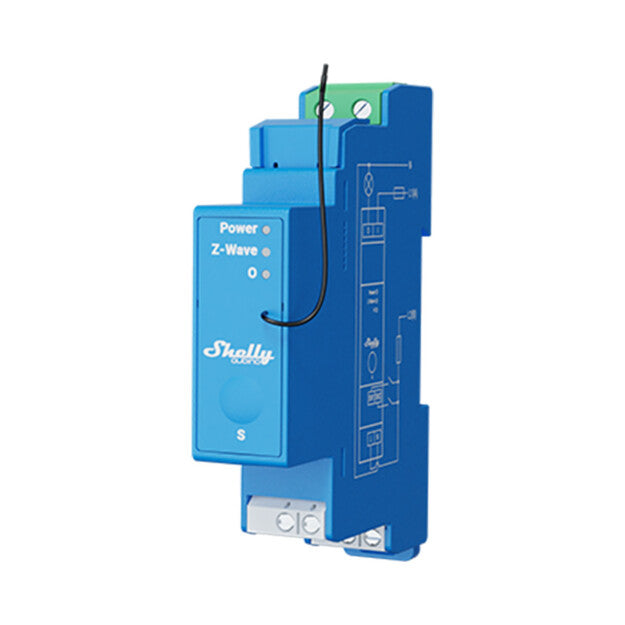

Shelly Wave Pro 1 - Image 3

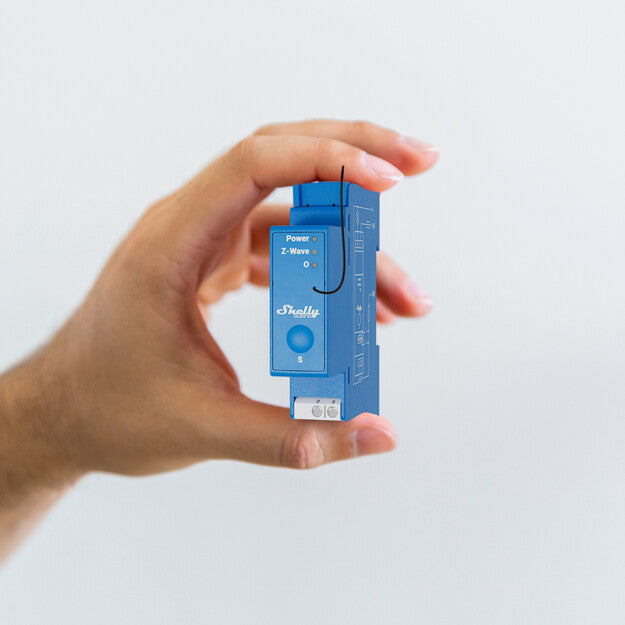

Shelly Wave Pro 1 - Image 4

Shelly Wave Pro 1

Original price was: £64.99.Current price is: £59.99.

1 in stock

Categories: , , Tag: Brand:

Overview

The Shelly Wave Pro 1 is a professional DIN-rail Z-Wave smart relay designed for installation inside electrical cabinets and breaker boxes. It provides reliable on/off control for lighting circuits, appliances, and automation systems in residential or commercial environments.

Featuring potential-free (dry contact) outputs, the relay can switch a wide range of low- or high-voltage circuits independently of the supply voltage. Built on the Z-Wave 800 Series platform, it supports secure communication, SmartStart inclusion, and mesh networking when used with a compatible Z-Wave gateway.

Key features

  • Single-channel DIN-rail Z-Wave smart relay
  • Rated up to 16 A switching on a single output
  • Potential-free dry contact relay for flexible voltage control
  • Suitable for lighting, appliances, gates, boilers, and automation circuits
  • Z-Wave 800 Series (S800) chipset
  • SmartStart support for fast QR-based inclusion
  • OTA firmware updates via compatible Z-Wave gateways
  • Security 2 (S2) authenticated encryption
  • Acts as a Z-Wave repeater in mesh networks
  • Extremely low standby power consumption (< 0.3 W)

Product information

Use cases
  • Lighting and Appliance Control
  • Control lighting circuits or electrical appliances from a Z-Wave smart home system or automation platform.
  • Automation System Integration
  • Use the dry-contact output to control automation systems such as gates, boilers, or control relays.
  • Electrical Cabinet Smart Control
  • Install inside consumer units or automation panels to integrate circuits into Z-Wave-based smart home systems.
Technical specifications
Power & Switching
Power Supply
110–240 V AC ±10%, 50/60 Hz
Power Consumption
< 0.3 W
Maximum Switching Voltage (AC)
240 V
Maximum Switching Current
16 A
Relay Type
Potential-free (dry contact)
Z-Wave
Chipset
Z-Wave S800 (800 Series)
Frequency Band
868.4 MHz (EU / UK)
Repeater Function
Yes
Typical Indoor Range
Up to 40 m
Maximum RF Output Power
< 25 mW
Protection
Overheating Protection
Yes
Voltage Protection
No
Current Protection
No
Power Protection
No
Physical
Mounting
DIN rail
Dimensions
94 × 19 × 69 mm
Weight
Approx. 73 g
Environmental
Operating Temperature
-20 °C to 40 °C
Humidity
30–70% RH
What’s included
  • Shelly Wave Pro 1
  • Quick start documentation
