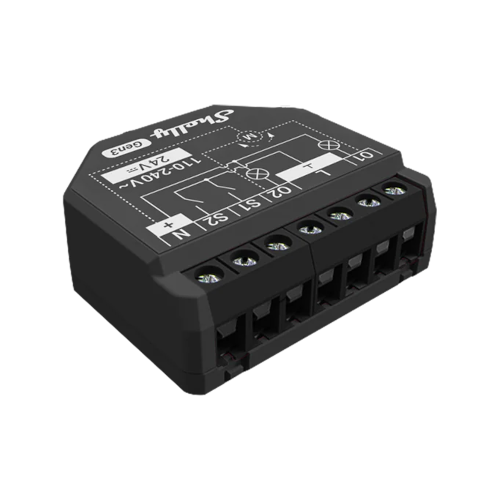

Shelly 2PM Gen3

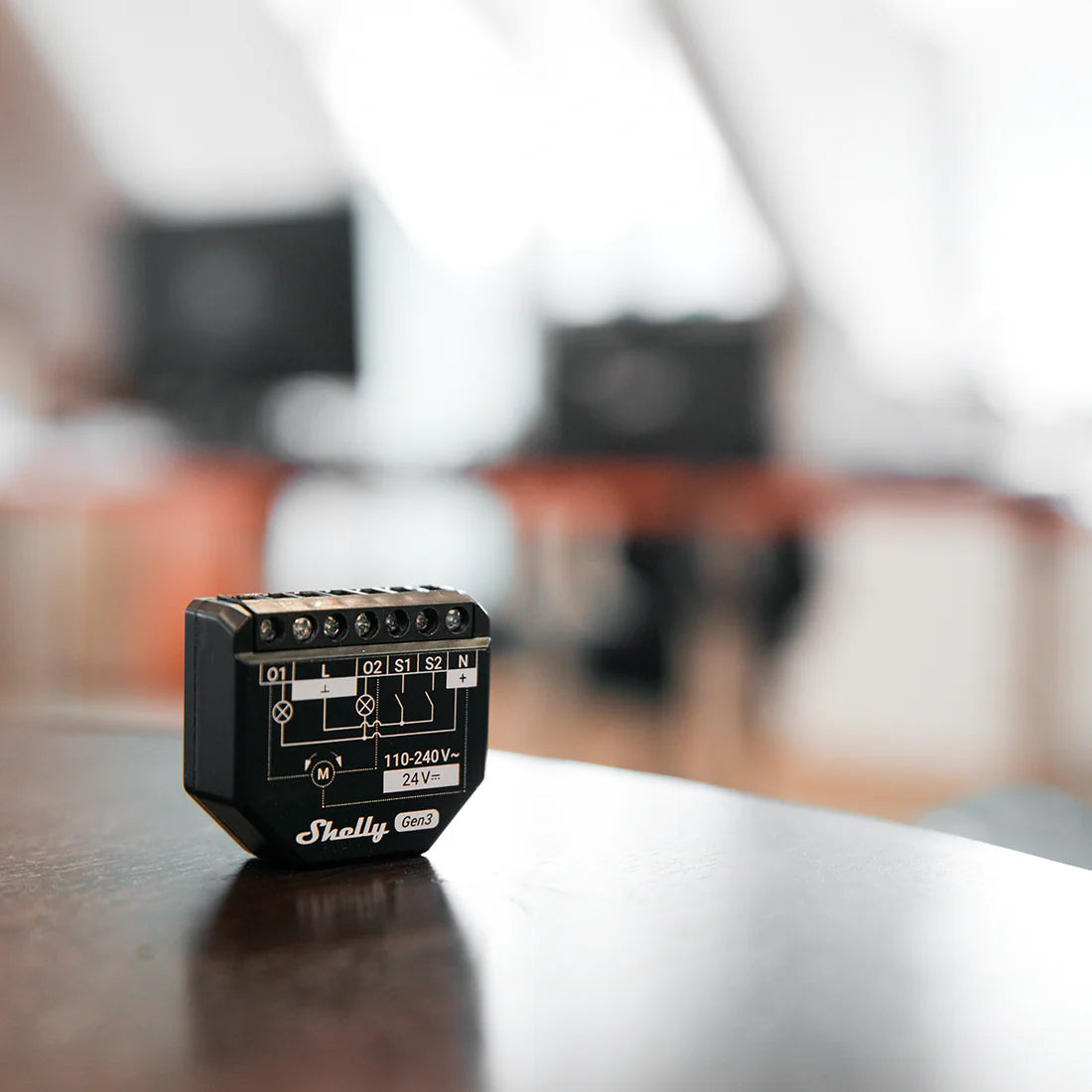

Shelly 2PM Gen3 - Image 2

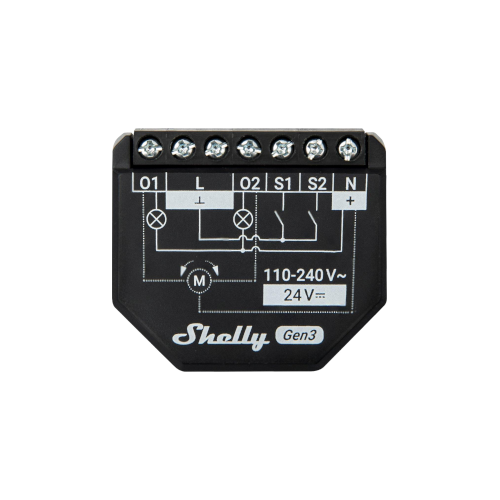

Shelly 2PM Gen3 - Image 3

Shelly 2PM Gen3

£29.99

5 in stock

Categories: , , Tag: Brand:

Overview

Shelly 2PM Gen3 is a Wi-Fi operated dual-channel smart relay with integrated power monitoring and cover control, designed for controlling appliances and motorised covers such as roller shutters, blinds, awnings, and curtains. Its compact design allows retrofit installation behind wall switches or inside standard wall boxes, even where space is limited.

Built on an improved Gen3 processor with increased memory, the device delivers fast local response and reliable automation. It works without a hub, supports local Wi-Fi control and cloud access, and includes roller shutter and Venetian blinds modes with position and tilt control. Power monitoring is available for AC loads only. Motors must be equipped with electronic or mechanical limit switches for cover operation.

Key features

  • Dual-channel smart relay with AC power monitoring
  • Supports roller shutter and Venetian blinds control
  • Position and slat tilt control for compatible motors
  • Works locally over Wi-Fi with no hub required
  • Compact design for retrofit installations
  • Integrated Bluetooth gateway for Shelly BLU devices
  • Wi-Fi range extender functionality
  • Embedded web interface for configuration
  • Overload and device temperature protection
  • Supports schedules, virtual components, and scripting
  • Broad integration support including MQTT and KNXnet/IP

Product information

Use cases
  • Appliance and lighting control
  • Remotely control and automate connected appliances or lighting circuits with individual channel control and power monitoring.
  • Motorised blinds and shutters
  • Control roller shutters, blinds, awnings, and curtains with accurate position feedback and automation.
  • Venetian blind tilt control
  • Adjust slat angle on compatible Venetian blind motors for precise light and privacy control.
  • Energy monitoring for connected loads
  • Monitor real-time and historical power usage of AC-connected devices to optimise energy consumption.
Technical specifications
Power
Power supply (AC)
110–230 V AC ±10%, 50/60 Hz
Power supply (DC)
24 V DC ±10%
Device consumption
< 1.4 W
Maximum switching voltage
240 V AC / 30 V DC
Switching and Loads
Channels
2
Maximum load per channel
10 A
Total maximum load
16 A (18 A peak)
Dry contacts
No
Power measurement
Yes (AC only)
Cover Control
Roller shutter mode
Yes
Venetian blinds mode
Yes (with slat tilt control)
Supported motors
Bi-directional AC motors with limit switches
Protection
Overload protection
Yes
Device temperature protection
Yes
Connectivity
Wi-Fi
2.4 GHz 802.11 b/g/n
Wi-Fi range
Up to 50 m outdoors / 30 m indoors (environment dependent)
Bluetooth
4.2
Bluetooth range
Up to 30 m outdoors / 10 m indoors
Environment
Operating temperature
−20 °C to +40 °C
Physical
Mounting
In-wall, behind switch
Dimensions
37 × 42 × 16 mm ±0.5 mm
What’s included
  • Shelly 2PM Gen3
  • Quick start documentation
