Ogemray SW40 – 25A
£32.99
Out of stock
Overview
Ogemray SW40 is a high-capacity Wi-Fi smart relay with power measurement, designed for controlling large electrical loads up to 25 A (6000 W). It is suitable for demanding residential and light industrial applications where accurate monitoring, safety protections, and reliable switching are required.
The device operates without a hub, connecting directly over Wi-Fi, with Bluetooth used for setup and local functions. It includes real-time power measurement, multiple protection mechanisms, and supports advanced local automation via scripting. Large terminals and wall-mount anchors make it suitable for higher-current installations where physical robustness matters.
Key features
- High-capacity smart relay rated up to 25 A
- Integrated power and energy measurement
- Wi-Fi operation with no hub required
- Bluetooth support for setup
- Overvoltage, overpower, and overcurrent protection
- Internal temperature monitoring with automatic cutoff
- Supports schedules, scenes, and local scripting
- Broad integration via MQTT, webhooks, UDP, and KNXnet/IP
Product information
Use cases
- High-load appliance control
- Control high-power appliances such as water heaters, EV chargers within rating, ovens, or industrial equipment.
- Energy monitoring for heavy loads
- Track real-time and historical power usage of large electrical consumers to optimise efficiency and detect anomalies.
- Industrial and workshop automation
- Use in workshops or light industrial environments where higher current switching and monitoring are required.
- Advanced automation integrations
- Integrate high-load control into automation systems using MQTT, webhooks, or KNXnet/IP.
Technical specifications
Power and Switching
Power supply
110–240 V AC ±10%, 50/60 Hz
Maximum switching voltage
240 V AC
Maximum switching current
25 A
Maximum switching power
6000 W
Device consumption
< 1.2 W
Relay and Protection
Channels
1
Relay type
Switched output (no dry contacts)
Power measurement
Yes
Overvoltage protection
Yes
Overcurrent protection
Yes
Overpower protection
Yes
Internal temperature sensor
Yes
Connectivity
Wi-Fi
2.4 GHz 802.11 b/g/n
Wi-Fi RF power
< 20 dBm
Wi-Fi range
Up to 50 m outdoors / 30 m indoors (environment dependent)
Bluetooth
4.2
Bluetooth RF power
< 4 dBm
Bluetooth range
Up to 30 m outdoors / 10 m indoors
Automation and Control
Schedules
Up to 20
Webhooks
Up to 20 (5 URLs per hook)
MQTT
Yes
UDP
Yes
Scripting
Yes (mJs)
KNXnet/IP
Supported
Environment
Operating temperature
−20 °C to +40 °C
Operating humidity
30–70% RH
Physical
Mounting
Wall mount
Dimensions
60 × 52.4 × 24 mm

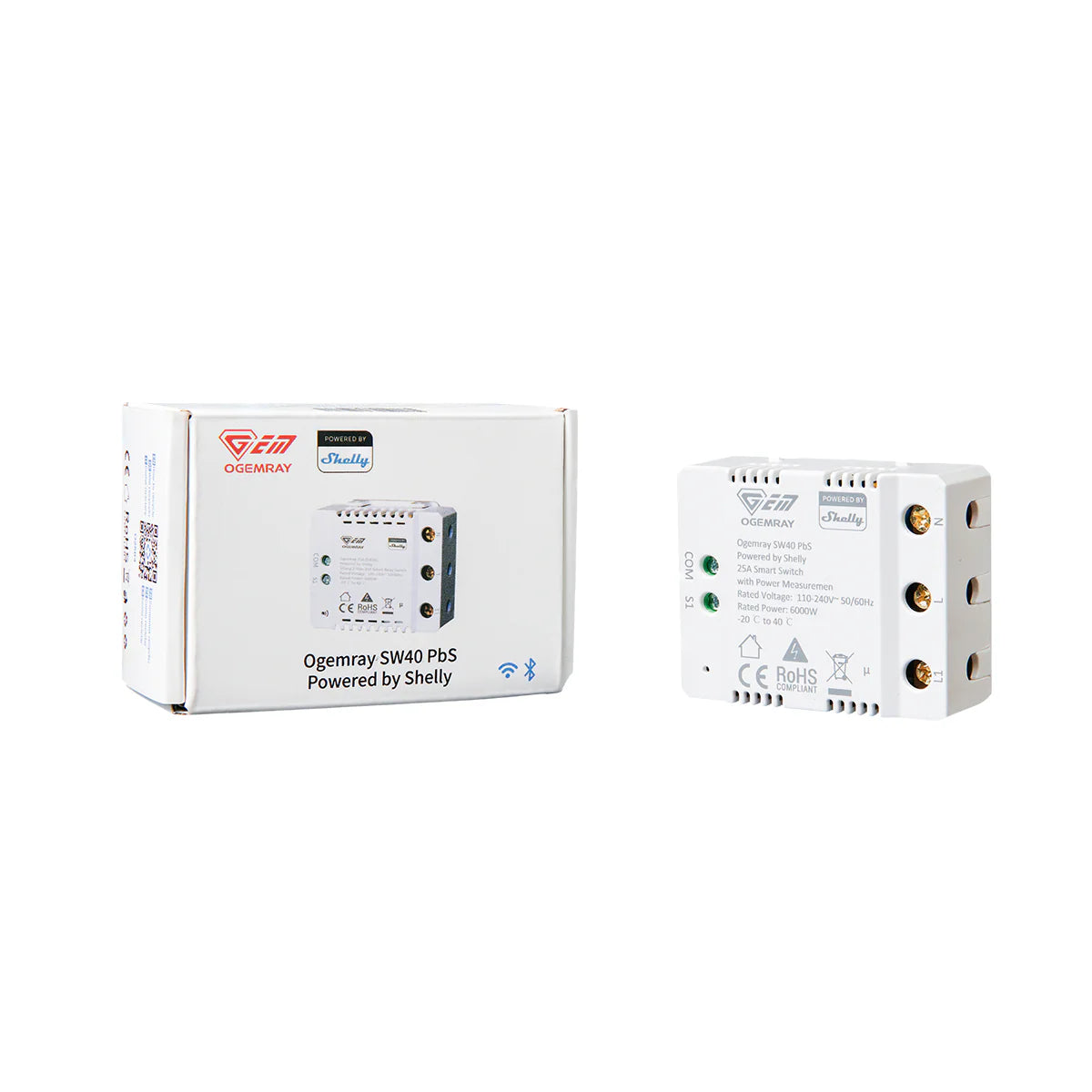

What’s included
- Ogemray SW40 smart relay
- Mounting hardware
- Quick start documentation
