Shelly Wave 1PM Mini LR
£29.99
2 in stock
Overview

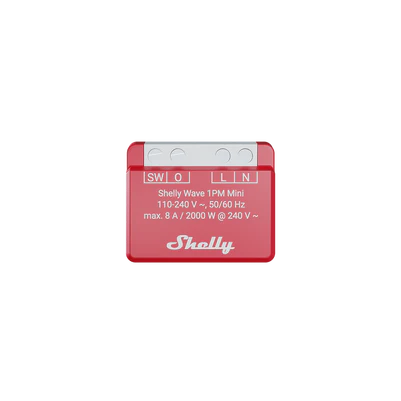

The Shelly Wave 1PM Mini LR is a compact Z-Wave smart relay with integrated power monitoring and Z-Wave Long Range support. It allows switching and measuring AC loads up to 8 A (2000 W at 240 V) while fitting inside tight wall boxes or crowded electrical enclosures.
Supporting both standard Z-Wave mesh and Z-Wave Long Range (ZWLR), the device can operate as a mesh repeater or connect directly to a compatible hub for extended wireless range. With the Z-Wave 800 Series chipset, it delivers improved reliability, security, and energy monitoring for smart lighting and appliance control.
Key features
- Single-channel relay with power and energy monitoring
- Switches AC loads up to 8 A (2000 W at 240 V)
- Supports Z-Wave mesh and Z-Wave Long Range (ZWLR)
- Direct-to-hub ZWLR connection for extended wireless range
- Z-Wave 800 Series (S800) chipset
- SmartStart support for fast device inclusion
- Supports Z-Wave associations in mesh mode
- Extremely low standby power consumption (< 0.3 W)
- OTA firmware updates via compatible Z-Wave hubs
- Security 2 (S2) authenticated encryption
Product information
Use cases
- Smart Lighting Control
- Install behind wall switches to automate and remotely control lighting circuits through a Z-Wave smart home system.
- Appliance Switching and Energy Monitoring
- Control small appliances while tracking real-time power consumption and energy usage.
- Extended Z-Wave Coverage
- Use Z-Wave Long Range mode to connect directly to a compatible hub for greater coverage in larger homes or installations.
Technical specifications
Electrical
Power Supply
110–240 V AC, 50/60 Hz
Maximum Switching Power
2000 W (AC)
Maximum Switching Current
8 A
Maximum Switching Voltage
240 V AC
Standby Power Consumption
< 0.3 W
Power Monitoring
Yes
Energy Monitoring
Yes
Overheating Protection
Yes
Overcurrent Protection
Yes
Overvoltage Protection
Yes
Z-Wave
Protocols
Z-Wave Plus, Z-Wave Long Range (ZWLR)
Frequency Bands
868.4 MHz (Z-Wave mesh), 864.0 MHz (ZWLR)
Chipset
Z-Wave S800 (800 Series)
Security
S2 Authenticated
Range
Z-Wave Mesh Range
Up to 40 m indoors
Z-Wave Long Range
Up to 80 m indoors
Physical

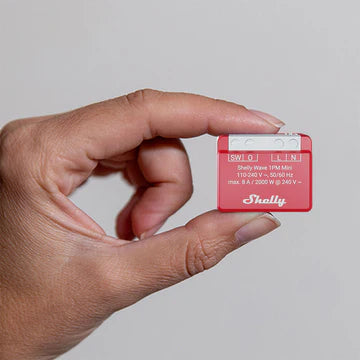

Dimensions
29 × 35 × 16 mm
Weight
18 g
Mounting

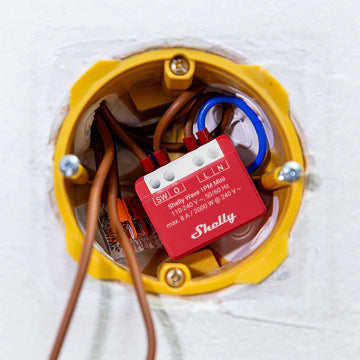

In-wall wall box installation
Terminal Torque
0.4 Nm
Conductor Size
0.5–1.5 mm²
Material
Plastic
Colour
Red
Environmental
Operating Temperature
-20 °C to 40 °C
Humidity
30–70% RH
Maximum Altitude
2000 m

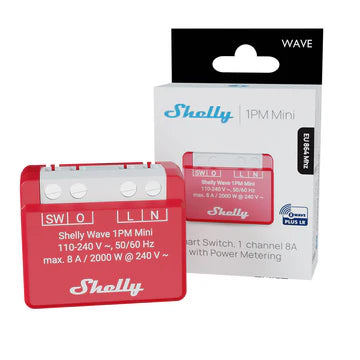

What’s included
- Shelly Wave 1PM Mini LR
- Quick start guide
