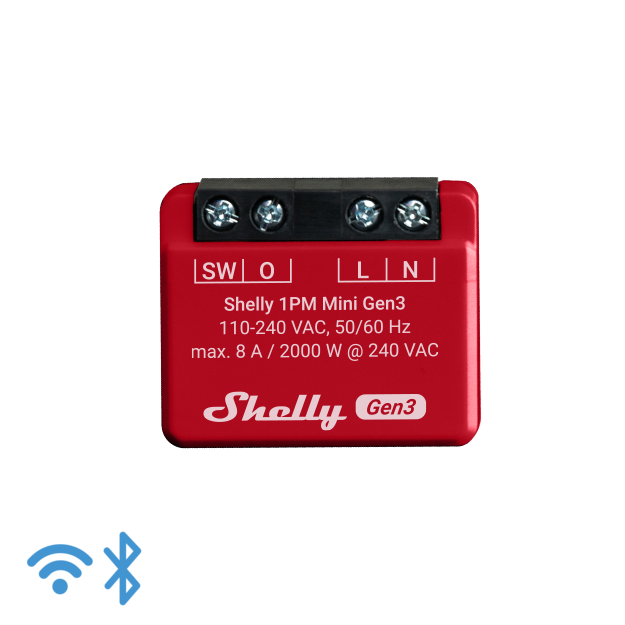

Shelly 1PM Mini Gen3
Shelly 1PM Mini Gen3 - Image 2
Shelly 1PM Mini Gen3 - Image 3
Shelly 1PM Mini Gen3 - Image 4
Shelly 1PM Mini Gen3 - Image 5
Shelly 1PM Mini Gen3 - Image 6

Shelly 1PM Mini Gen3

£13.99

Out of stock

Categories: , , , Tag: Brand:

Overview

Shelly 1PM Mini Gen3 is an ultra-compact Wi-Fi smart relay switch with integrated real-time power metering, designed to remotely control and measure energy usage of lights and small electrical appliances. Its miniature form factor fits inside standard wall boxes or behind wall switches and sockets for discreet smart upgrades.

Built on the Shelly Gen3 platform with a new ESP-based processor and increased flash memory, it offers improved responsiveness and future firmware support. It works without a hub, connects to 2.4 GHz Wi-Fi, and also supports Bluetooth for provisioning and gateway functions. Power metering enables precise analysis of consumption, and open protocol support allows integration with a wide range of automation systems.

Key features

  • Single-channel Wi-Fi smart relay with power metering
  • Supports loads up to 8 A at 240 VAC
  • Real-time power measurement and energy usage data

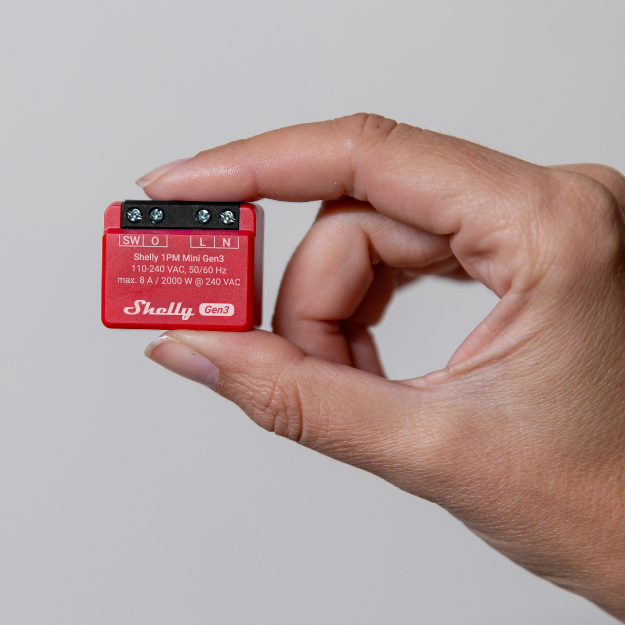

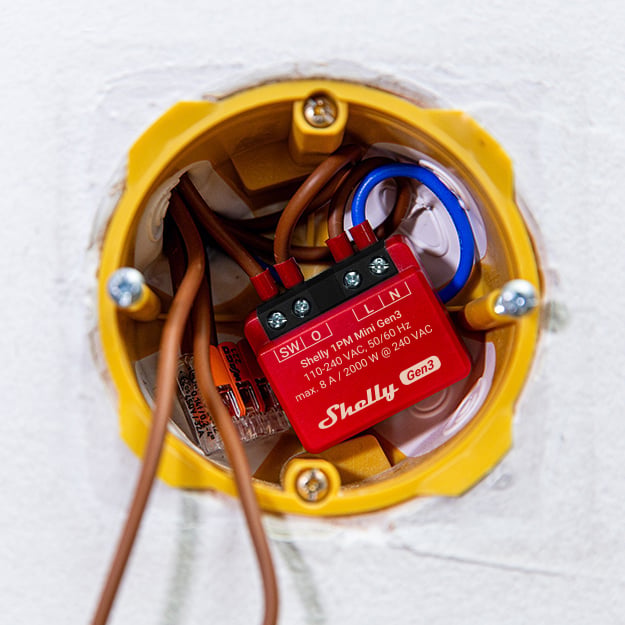

  • Compact design for in-wall installation behind switches or sockets
  • Bluetooth 4.2 support for provisioning and gateway use
  • Functions as a Wi-Fi range extender
  • No hub required for basic operation
  • Supports scripting and advanced automation
  • Compatible with MQTT, WebSocket, HTTP/S, UDP, TLS, and webhooks

Product information

Use cases
  • Lighting control with energy insights
  • Control and schedule lighting circuits remotely while tracking real-time power consumption to optimise usage patterns and costs.
  • Small appliance smart control
  • Operate small fixed loads such as fans, kitchen appliances, or entertainment devices, with both switching and live energy monitoring.
  • Energy monitoring and optimisation
  • Use integrated power metering to analyse usage over time, identify high-consumption devices, and reduce wasted energy.
  • Space-constrained smart retrofits
  • Upgrade existing switches or sockets with smart control and metering functionality in installations where space is limited.
Technical specifications
Power and Switching
Power supply
110–240 VAC, 50/60 Hz
Maximum switching current (AC)
8 A
Maximum switching power
2000 W
Output type
Relay (NO contact) with power metering
Connectivity
Wi-Fi
2.4 GHz 802.11 b/g/n, max RF power < 20 dBm
Bluetooth
4.2 (gateway and provisioning)
Wi-Fi range extender
Yes
Monitoring and Control
Protocol support
MQTT, WebSocket, HTTP/S, UDP, TLS, webhooks
Script support
Yes (mJs)
Protection and Environment
Operating temperature
−20 °C to +40 °C
Humidity
30 % to 70 % RH
Physical
Mounting
In-wall, behind standard switches or sockets

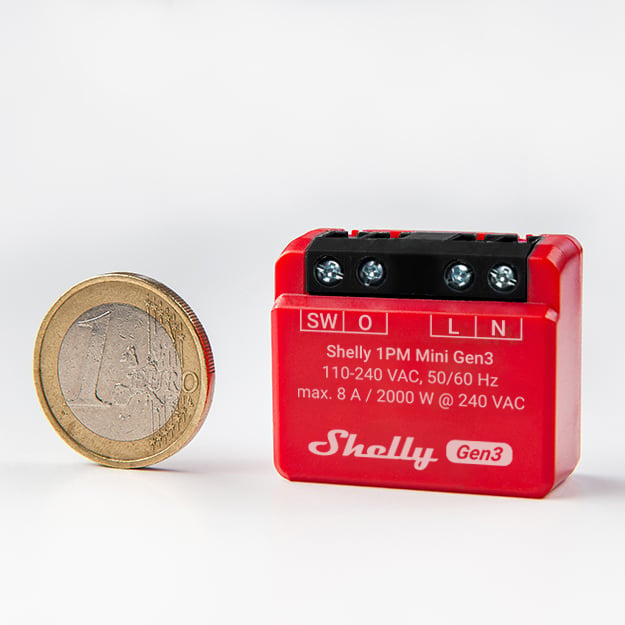

Dimensions
29 × 34 × 16 mm ±0.5 mm
Weight
~18–19 g ±1 g
Shell material
Plastic

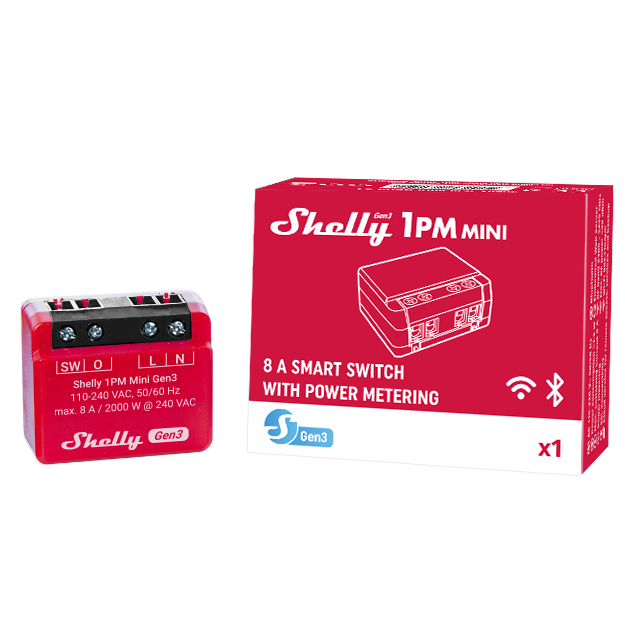

What’s included
  • Shelly 1PM Mini Gen3
  • Quick start documentation
