Shelly 1L Gen3
Shelly 1L Gen3 - Image 2
Shelly 1L Gen3 - Image 3
Shelly 1L Gen3 - Image 4

Shelly 1L Gen3

£24.99

7 in stock

Categories: , , , Tag: Brand:

Overview

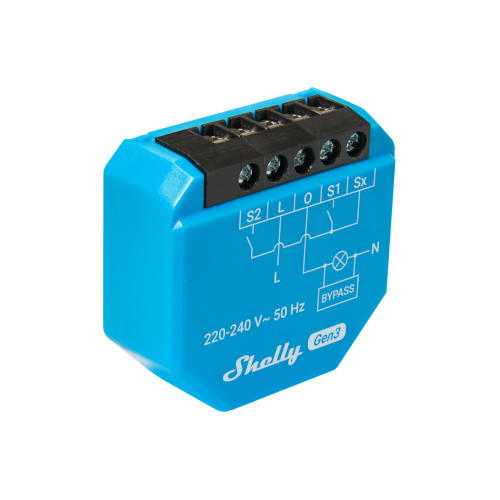

Shelly 1L Gen3 is a compact single-channel Wi-Fi smart relay designed for lighting control in installations without a neutral wire. It operates on 220–240 V AC and requires the included Shelly Bypass for 1L/2L, connected in parallel with the load, to ensure stable operation in no-neutral circuits, especially with LED lighting.

As a Gen3 device, Shelly 1L Gen3 is powered by the Shelly ESP processor (ESP-Shelly-C38F) with 8 MB flash, providing faster response times, improved reliability, and expanded integration capabilities. It also includes Bluetooth connectivity for fast onboarding and can act as a Bluetooth gateway for Shelly BLU devices.

The device supports local control, cloud control, scripting, and integrations with platforms such as Home Assistant, making it suitable for advanced automation in modern smart homes.

Key features

  • 1-channel Wi-Fi smart relay for no-neutral installations
  • Designed for lighting circuits without a neutral wire

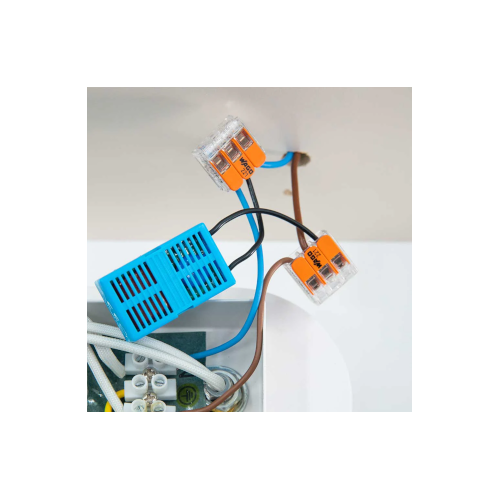

  • Requires Shelly Bypass for 1L/2L (included) for LED loads
  • Supports lighting loads up to 200 W
  • Wi-Fi and Bluetooth connectivity
  • Gen3 ESP processor (ESP-Shelly-C38F) with 8 MB flash
  • Acts as a Bluetooth gateway for Shelly BLU devices
  • Supports schedules, scenes, and local actions
  • Supports scripting (mJS), MQTT, WebSocket, HTTPS, and MQTTS
  • Internal temperature sensor with overheating protection
  • Acts as a Wi-Fi range extender and Bluetooth gateway
  • No hub required – works with Shelly Smart Control app, Home Assistant, Alexa, and other platforms
  • Matter support planned via future firmware update

Product information

Use cases
  • Lighting Control Without Neutral
  • Enable smart lighting control in older electrical installations where a neutral wire is not present.
  • Smart Switch Retrofit

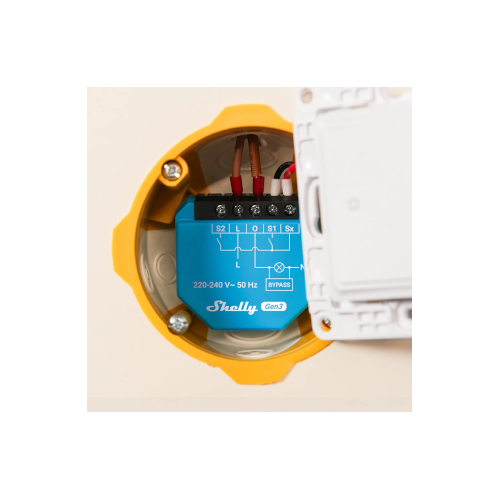

  • Install behind existing wall switches to add automation and remote control without rewiring circuits.
  • Automation Triggers
  • Use with automation platforms to trigger lighting scenes, schedules, or occupancy-based control.
Technical specifications
Power & Switching
Power Supply
220–240 V AC, 50 Hz
Neutral Required
No (Shelly Bypass required for LED loads)
Max Switching Voltage
240 V AC
Max Switching Power
200 W
Power Consumption
< 1.2 W
Internal Temperature Sensor
Yes
Load Requirements
Minimum Load Without Neutral (LED)
Shelly Bypass required (included)
Minimum Load Without Neutral (Incandescent)
Bypass not required
External Protection (Recommended)
Circuit Breaker Rating
10 A
Tripping Characteristic
B or C
Interrupting Rating
6 kA
Energy Limiting Class
3
Connectivity – Wi-Fi
Protocol
802.11 b/g/n (2.4 GHz)
RF Band
2401–2495 MHz
Max RF Power
< 20 dBm
Range
Up to 30 m indoors, up to 50 m outdoors
Connectivity – Bluetooth
Protocol
Bluetooth 4.2
RF Band
2400–2483.5 MHz
Max RF Power
< 4 dBm
Range
Up to 10 m indoors, up to 30 m outdoors
Processor & Software
CPU
ESP-Shelly-C38F
Clock Frequency
160 MHz
RAM
512 KB
Flash Memory
8 MB
Schedules
Up to 20
Webhooks
20 (with up to 5 URLs per hook)
Scripting (mJS)
Yes
MQTT
Yes
Environmental
Operating Temperature
−20 °C to 40 °C
Storage Temperature
10 °C to 40 °C
Humidity
30–70% RH
Maximum Altitude
2000 m
Physical
Dimensions
37 × 42 × 16 mm
Weight
24 g
Mounting
In-wall (behind switch or in wall box)
Shell Material
Plastic
Colour
Cyan
Wiring
Screw Terminal Max Torque
0.4 Nm / 3.5 lbin
Conductor Cross-Section
0.2–2.5 mm² (24–14 AWG)
Conductor Strip Length
6–7 mm
What’s included

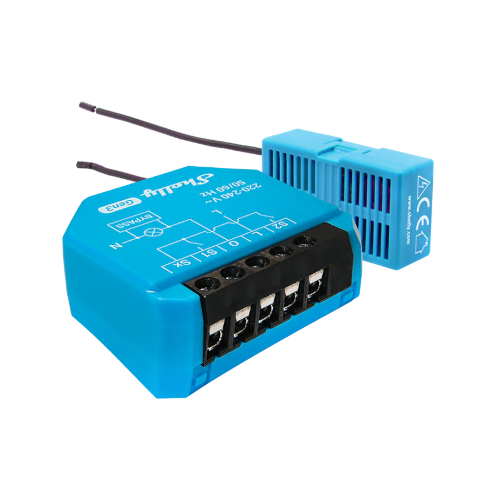

  • Shelly 1L Gen3
  • Shelly Bypass for 1L / 2L
  • User guide
