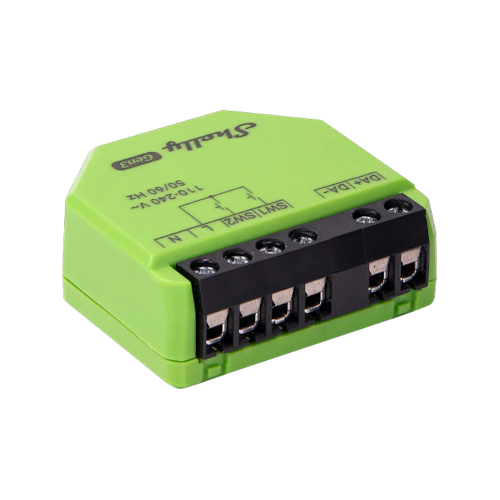

Shelly DALI Dimmer Gen3
£43.99
6 in stock
Overview
Shelly DALI Dimmer Gen3 is a Wi-Fi smart DALI dimming gateway designed to integrate DALI lighting systems into the Shelly ecosystem. It operates as a single-master DALI application controller for LED control gear (Part 207) and includes a built-in DALI bus power supply capable of supporting up to five non-powered DALI units.
The device connects directly over Wi-Fi with no hub required and also supports Bluetooth for setup and gateway functions. It offers precise, repeatable dimming control with features such as night mode, schedules, and min/max brightness limits, and integrates with third-party platforms including KNXnet/IP via network protocols. A neutral wire is required.
Key features
- Single-master DALI application controller (Part 207)
- Integrated DALI bus power supply for up to 5 non-powered units
- Precise brightness control with configurable limits and transitions
- Wi-Fi operation with no hub required
- Bluetooth support and BLE gateway for Shelly BLU devices
- KNXnet/IP communication support
- Embedded web interface for local control
- Supports scripting and local automations
Product information
Use cases
- Smart DALI lighting control
- Control and automate DALI LED lighting with precise, predictable dimming in residential or commercial environments.
- Retrofit integration of DALI systems
- Add smart control to existing DALI installations without replacing LED control gear.
- KNX lighting integration
- Bridge DALI lighting into KNX systems using KNXnet/IP for coordinated building automation.
- Advanced lighting scenes and schedules
- Create schedules, night mode behaviour, and sensor-driven lighting automations.
Technical specifications
Power
Power supply
110–240 V AC ±10%, 50/60 Hz
Device consumption
< 2 W
Neutral wire required
Yes
DALI Bus
DALI role
Single-master application controller
Supported control gear
DALI Part 207
Bus power supply
Guaranteed 10 mA
Supported bus units
Up to 5 non-powered units
Bus voltage
16 V nominal
Short circuit current
< 35 mA
Connectivity
Wi-Fi
2.4 GHz 802.11 b/g/n
Wi-Fi band
2401–2495 MHz
Wi-Fi max RF power
< 20 dBm
Wi-Fi range
Up to 50 m outdoors / 30 m indoors (environment dependent)
Bluetooth
4.2
Bluetooth band
2400–2483.5 MHz
Bluetooth max RF power
< 4 dBm
Bluetooth range
Up to 30 m outdoors / 10 m indoors (environment dependent)
Environment
Operating temperature
−20 °C to +40 °C
Operating humidity
30–70% RH
Internal temperature sensor
Yes
Physical
Mounting
In-wall, behind switch
Dimensions
42 × 37 × 17 mm
What’s included
- Shelly DALI Dimmer Gen3
- Quick start documentation
