Shelly Pro RGBWW PM

£48.99

5 in stock

Categories: , , Tag: Brand:

Overview

Shelly Pro RGBWW PM is a DIN-rail mounted 5-channel smart LED controller with integrated power monitoring, designed for professional lighting installations. It supports flexible output profiles including RGB, CCT, RGB+CCT, and independent channel control, making it suitable for advanced residential and commercial lighting systems.

The device operates over Ethernet, Wi-Fi, and Bluetooth, allowing secure and versatile integration without requiring a hub. Built for installation in electrical cabinets, it provides real-time voltage, current, and energy monitoring, alongside built-in protection mechanisms for safe operation. It is designed for 12–24 V DC LED systems only.

Key features

  • Five independent PWM output channels
  • Supports RGB, CCT, RGB+CCT, and multi-channel light profiles
  • Integrated real-time power monitoring
  • DIN-rail mountable design
  • Ethernet, Wi-Fi, and Bluetooth connectivity
  • Overcurrent, overvoltage, and overpower protection
  • Embedded web interface for local configuration
  • Supports scripting and advanced automation

Product information

Use cases
  • Professional RGB and CCT lighting control
  • Control RGB, tunable white, or mixed lighting installations with precise channel management.
  • Multi-zone LED strip installations
  • Drive up to five independent LED strips or configure combined RGB and white profiles.
  • Energy monitoring for lighting systems
  • Monitor voltage, current, and consumption of connected LED channels in real time.

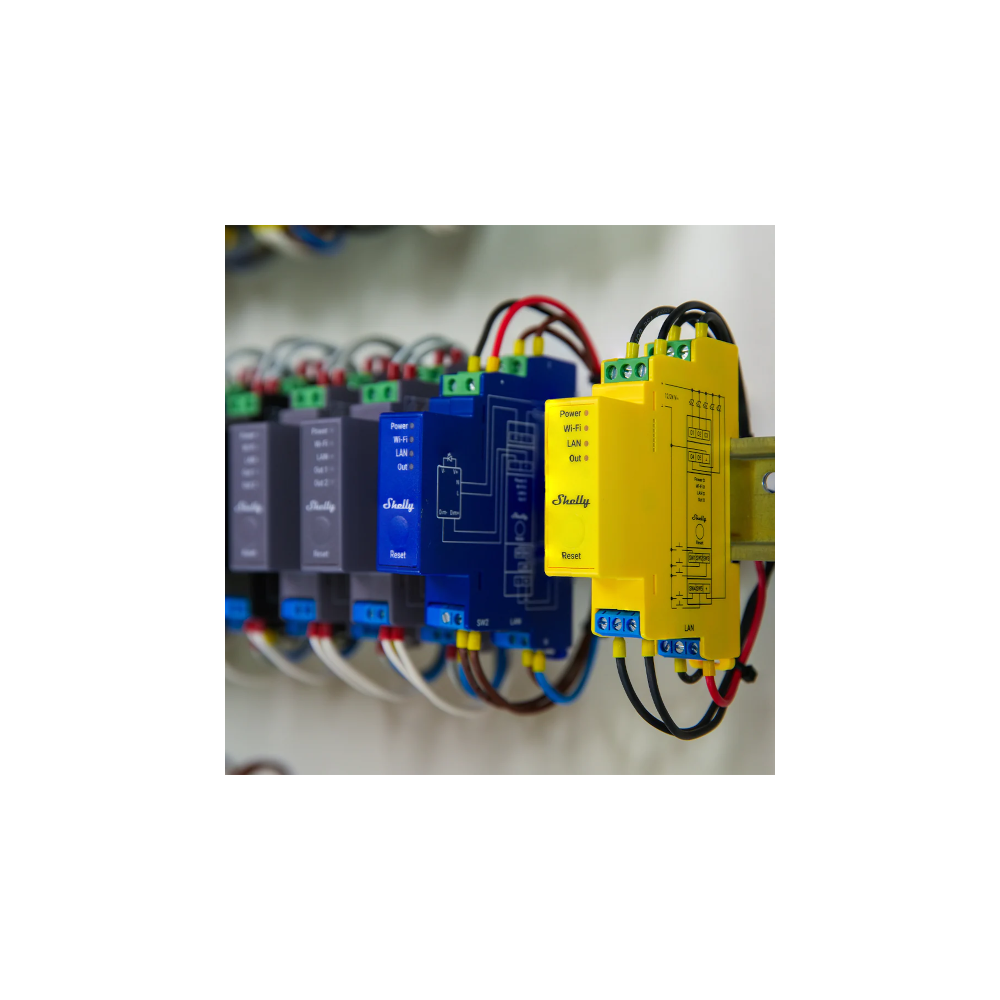

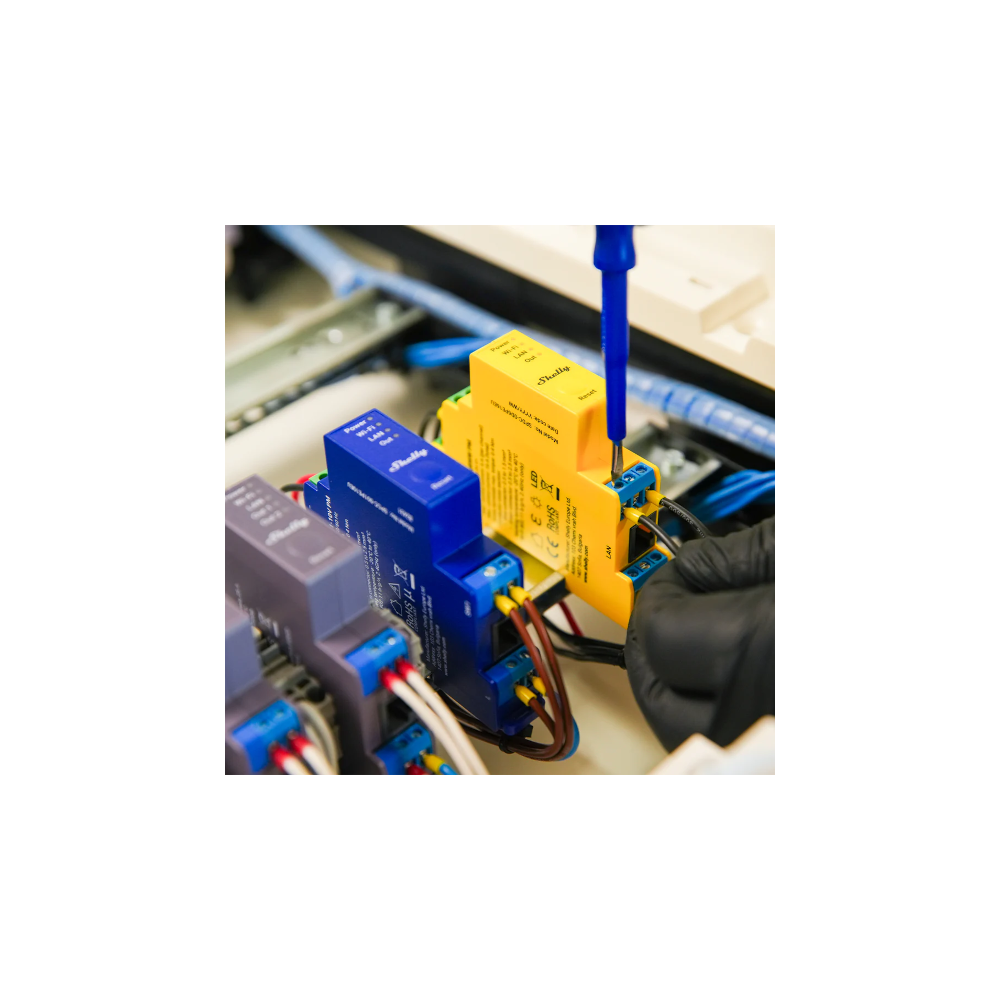

  • Cabinet-based smart lighting installations
  • Install in breaker panels or structured wiring cabinets for organised professional deployments.
Technical specifications
Power and Output
Power supply
12–24 V DC
Maximum control voltage
24 V DC
Maximum control current
6 A per channel
Maximum combined current
16 A
Device consumption
< 1.5 W
Output Profiles
Channel count
5
Supported profiles
CCT ×2, RGB + CCT, RGB + 2 × Light, Light ×5
CCT range
2700–6500 K (configurable 1000–10000 K)
Connectivity
Ethernet
Yes
Wi-Fi
2.4 GHz 802.11 b/g/n
Wi-Fi range
Up to 50 m outdoors / 30 m indoors (environment dependent)
Bluetooth
4.2
Bluetooth range
Up to 30 m outdoors / 10 m indoors
Protection and Environment
Overcurrent protection
Yes
Overvoltage protection
Yes
Overpower protection
Yes
Operating temperature
−20 °C to +40 °C
Operating humidity
30–70% RH
Physical
Mounting
DIN-rail
Dimensions
94 × 19 × 69 mm ±0.5 mm
What’s included
  • Shelly Pro RGBWW PM
  • DIN-rail mounting mechanism
  • Quick start documentation
