DOMRAEM WLED LED Strip Controller

DOMRAEM WLED LED Strip Controller

£17.99

14 in stock

Categories: , , Tag: Brand:

Overview

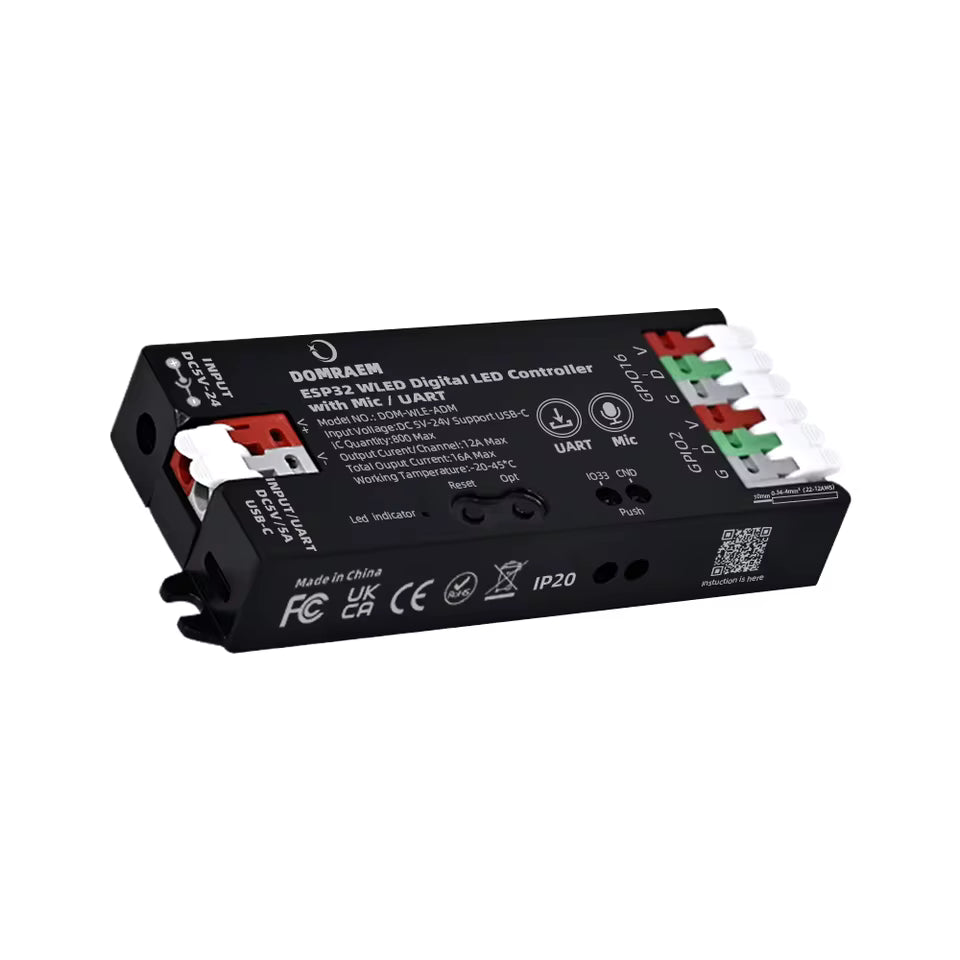

The DOMRAEM DOM-WLE-ADM is an ESP32-based WLED LED strip controller designed for addressable LED installations requiring high output and stable performance. It supports 5–24V DC input, drives up to 800 addressable LEDs, and is rated for 16A total output with built-in protection features for safer operation.

This model includes a built-in microphone for music-reactive effects and a UART programming interface for firmware flashing and development work. It is compatible with Home Assistant via the WLED integration and supports app-based control through WLED.

Key features

  • ESP32-based WLED controller
  • Built-in microphone for music reactive effects
  • UART programming support for flashing and development
  • 5–24V DC wide voltage input
  • Supports up to 800 addressable LEDs
  • Up to 12A per channel, 16A total output
  • Replaceable 16A fuse
  • Reverse-polarity protection
  • USB-C for power and firmware updates
  • Ultra-low standby consumption (~0.5W)

Product information

Use cases
  • Music-Reactive Lighting
  • Use the integrated microphone to drive real-time sound-reactive effects for gaming rooms, home cinemas, and feature lighting.
  • Home Assistant LED Automation
  • Integrate via the WLED integration to control effects, segments, presets and automations from Home Assistant.
  • High-Power Addressable LED Projects
  • Run longer or higher-density addressable strips using 5–24V input and up to 16A total output for larger installs.
  • Developer Firmware Access
  • Use the UART programming interface for firmware flashing, debugging, and custom ESP32 development workflows.
Technical specifications
General
Model
DOM-WLE-ADM
Chipset
ESP32
Microphone
Yes
Programming Port
UART
Power
Input Voltage
5–24V DC
Standby Consumption
~0.5W
Fuse
Replaceable 16A
Output
Max LED IC Count
Up to 800
Output Current Per Channel
12A max
Total Output Current
16A max
LED Compatibility
Supported LEDs
WS2811, WS2812, WS2812B, WS2813, WS2814, WS2815, WS2805, SK6812 and similar addressable IC strips
Environmental
Operating Temperature
−20°C to +45°C
Physical
Dimensions
109.5 × 46 × 17.5 mm
What’s included
  • DOM-WLE-ADM WLED LED Strip Controller x1
  • User manual (QR code) x1
