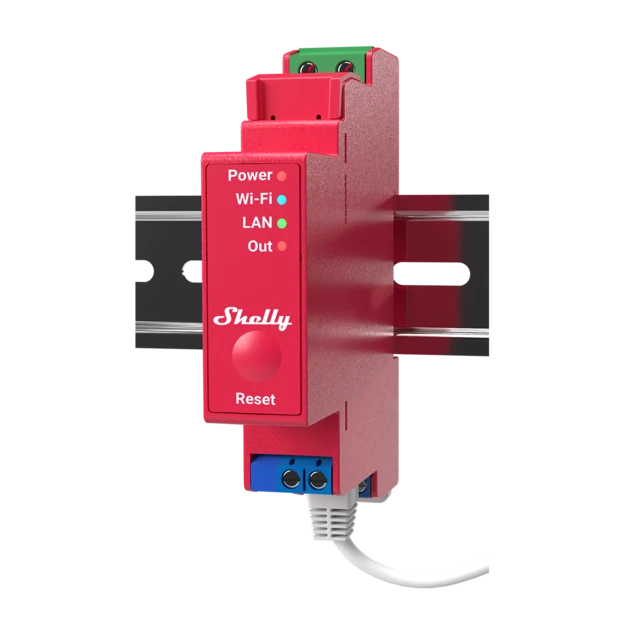

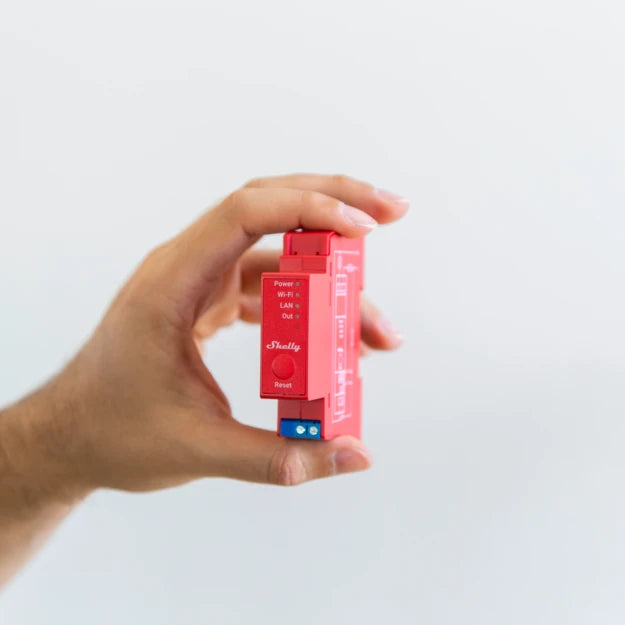

Shelly Pro 1PM
Shelly Pro 1PM - Image 2
Shelly Pro 1PM - Image 3

Shelly Pro 1PM

£64.99

2 in stock

Categories: , , Tag: Brand:

Overview

Shelly Pro 1PM is a professional 1-channel DIN rail smart relay with precise power metering designed for reliable monitoring and control of electrical circuits. It supports LAN, Wi-Fi, and Bluetooth connectivity and provides a single 16A output with real-time energy measurement and overpower and overvoltage protection. Designed for installation inside electrical cabinets, Shelly Pro 1PM is ideal for professional, commercial, and advanced home automation setups requiring accurate energy monitoring.

Key features

  • Professional 1-channel DIN rail smart relay
  • Single output rated up to 16A
  • Integrated power metering for energy monitoring
  • Overpower and overvoltage protection for connected loads
  • LAN, Wi-Fi, and Bluetooth connectivity

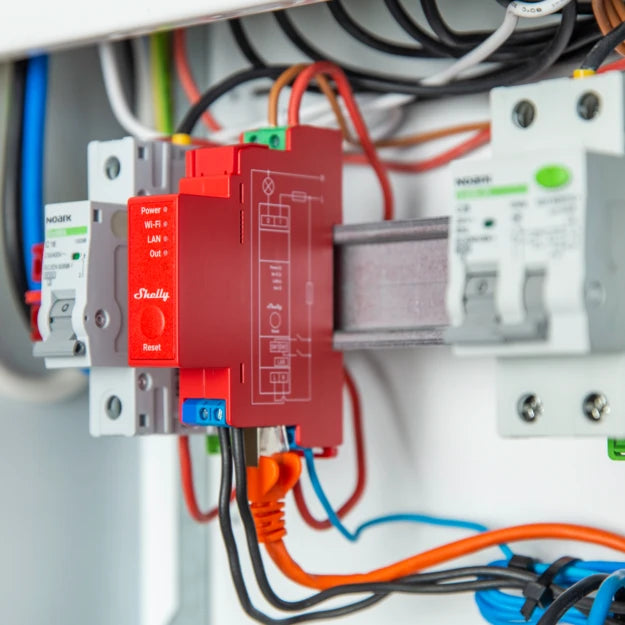

  • Designed for installation inside breaker boxes
  • Supports schedules, scripting, webhooks, and automation platforms
  • Compatible with voice assistants and smart home systems

Product information

Use cases
  • Electrical Cabinet Automation
  • Control and monitor electrical circuits from a central DIN rail installation.
  • Energy Monitoring
  • Measure real-time and historical energy consumption for connected loads.
  • Facility and Commercial Automation
  • Deploy in offices or shared buildings requiring reliable circuit control and monitoring.
  • Advanced Home Automation
  • Integrate switching and energy data into complex automation logic using LAN, REST API, scripting, and supported platforms.
Technical specifications
Power
Power supply AC
110–240V, 50/60Hz
Maximum load
16A
Channels
Channels
1
Special Functions
Roller shutter mode
No
Device temperature protection
Yes
Overload protection
Yes
Power measurement
Yes
Features
HTTP/HTTPS webhooks
Yes
Custom scripts (mJS)
Yes
Operational temperature
-20°C to +40°C
Device power consumption
< 3 W
Intelligent on/off
Yes
Local and remote control
Yes
Sunrise/sunset
Yes
Weekly schedule
Yes
UL listed option
No
Connectivity
Wireless
Yes
Max RF output power
13.34 dBm
Wi-Fi protocol
802.11 b/g/n
Wi-Fi radio frequency
2412–2483 MHz
Wi-Fi range
Up to 50 m outdoors and up to 30 m indoors (depending on building materials)
Bluetooth
Yes
Ethernet
Yes
Dimensions
Size
18.5 × 89.5 × 68.5 mm
What’s included
  • Shelly Pro 1PM DIN rail smart relay
