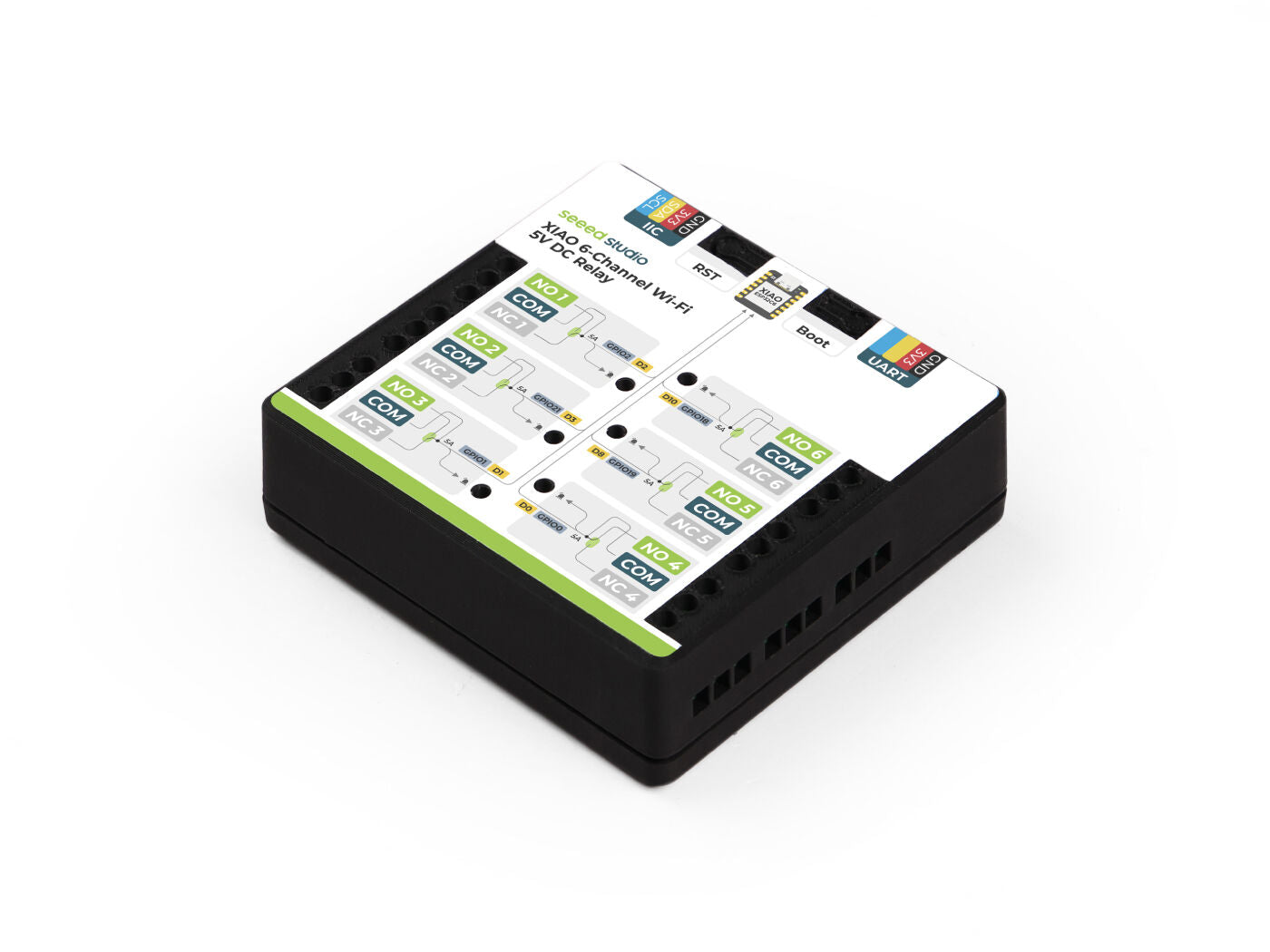

XIAO 6-Channel Wi-Fi 5V DC Relay
Overview

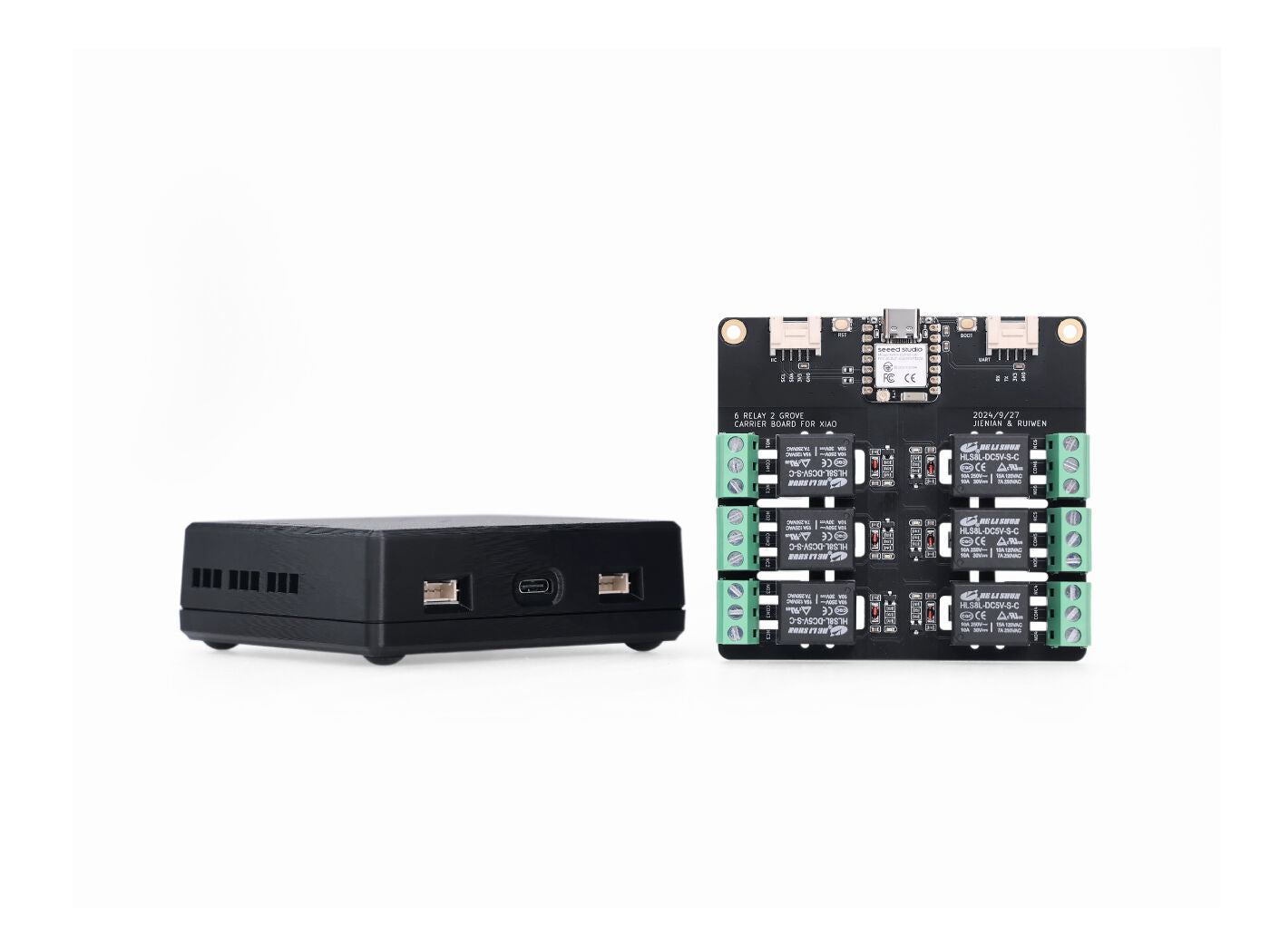

The XIAO 6-Channel Wi-Fi 5V DC Relay is a compact automation controller built on the XIAO ESP32-C6 platform. Designed for Home Assistant via ESPHome, it enables reliable control of up to six DC loads with full Wi-Fi integration. Ideal for smart home, small automation panels, and maker projects requiring a low-voltage relay module with expandable I/O options.
Key Features
• Pre-installed ESPHome for instant Home Assistant integration
• Six independent relay channels (COM / NO / NC per channel)
• XIAO ESP32-C6 for stable Wi-Fi 6, BLE 5.0, Zigbee & Thread capability
• Grove I²C and UART ports for sensor/actuator expansion
• USB-C powered XIAO module for firmware updates and custom development
• Supports Arduino IDE for full programmability
• Compact 3D-printed enclosure included (Early Build edition)
Note:
“Early Build” units ship with a 3D-printed case and evolving firmware.
Technical Specifications
Processor: XIAO ESP32-C6
Input Voltage (USB-C): 5V DC (powers the XIAO module)
Interfaces:
• 2.4 GHz Wi-Fi 6
• Grove I²C port
• Grove UART port
• USB Type-C

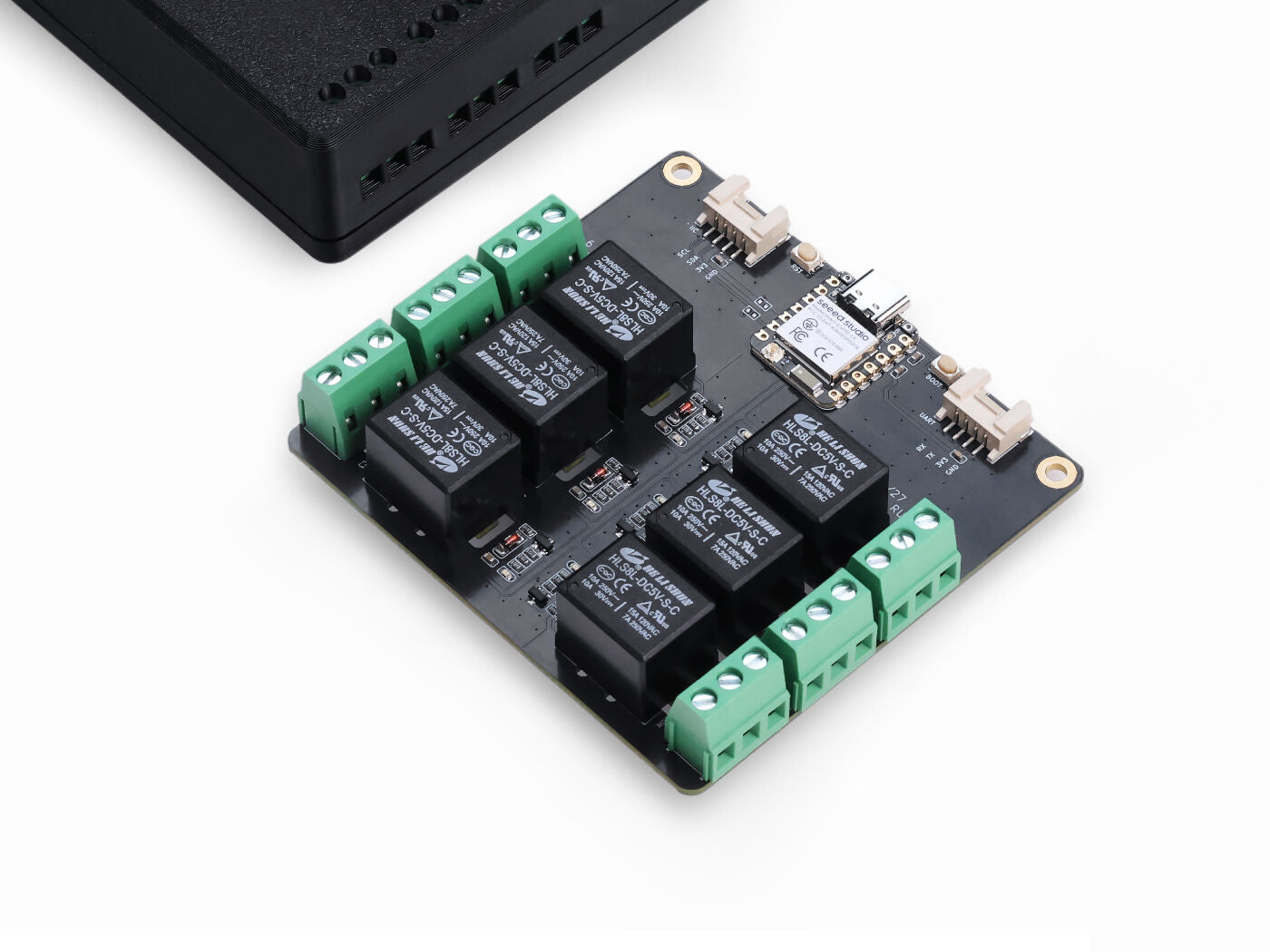

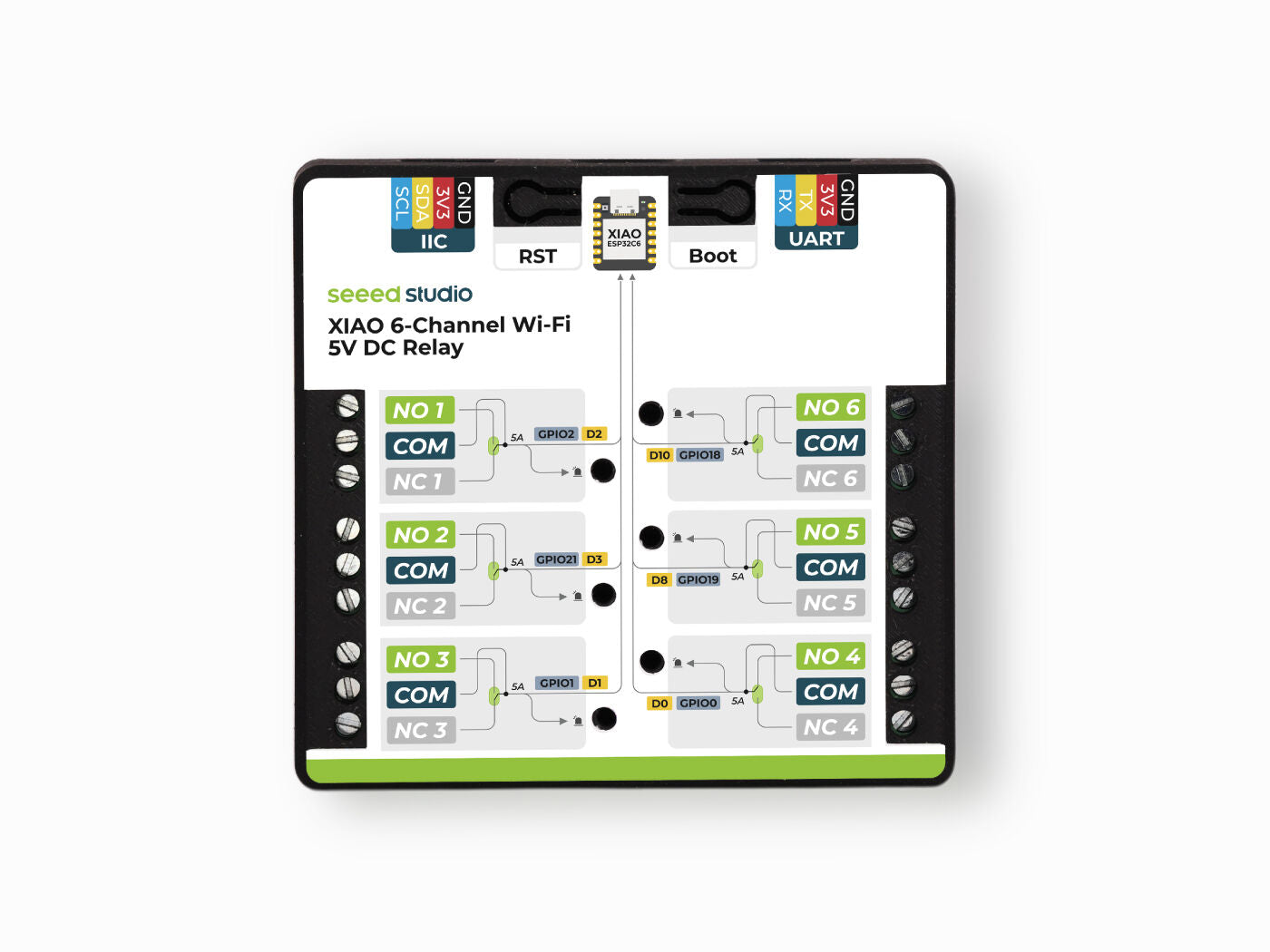

Relay Outputs:
• 6 × relay channels
• Contact types: COM / NO / NC
• Ratings:
– 10A @ 30V DC (recommended)
– 10A @ 250V AC

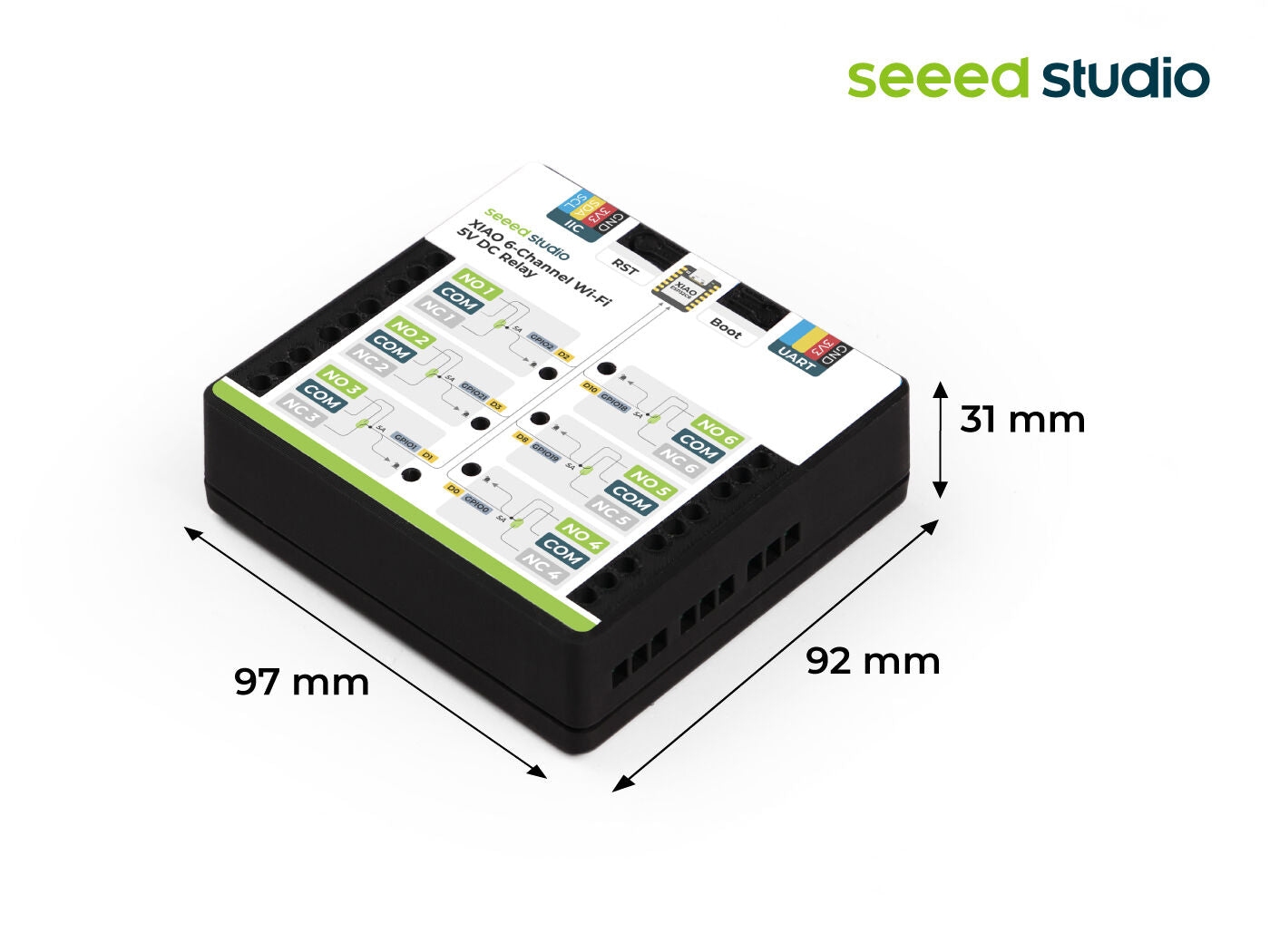

Dimensions: 97 × 92 × 31 mm
Enclosure:
• 3D-printed PLA
• Colour: Black
Installation / Application Notes
• Suitable for DC load control up to relay rating
• Ideal for lights, fans, solenoids, pumps, and small automation circuits
• Mount in a dry enclosure away from heat sources
• Expand functionality using Grove I²C or UART sensors
• Flash custom firmware via USB-C if required (ESPHome installed by default)
Part List
• XIAO 6-Channel Wi-Fi 5V DC Relay (with 3D-Printed Enclosure) ×1
