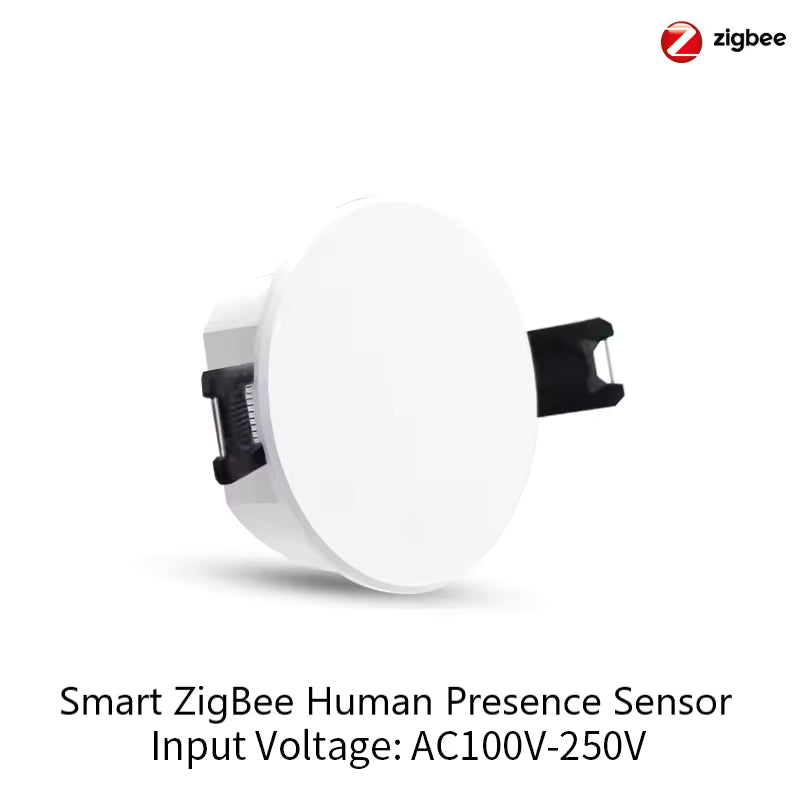

Tuya Zigbee mmWave Human Presence Sensor (Ceiling-Mount)
Overview
This Tuya Zigbee human presence sensor uses 5.8GHz mmWave radar to detect human presence, including static occupancy such as sitting or sleeping. Unlike traditional PIR sensors, it continuously monitors micro-movement and ambient light levels, making it suitable for bathrooms, bedrooms, offices, and automation scenarios where motion sensors fail.
The device integrates with the Tuya Smart / Smart Life app, Home Assistant or any zigbee network.
Key Features
- mmWave radar detection for moving and stationary presence
- Detects human presence, micro-motion, and absence
- Built-in ambient light (lux) sensor for lighting automations
- Adjustable sensitivity (levels 1–9)
- Configurable detection range (0–9.5 m)
- Adjustable detection latency (0–10 s)
- Adjustable hold time (20 s – 25 min)
- Ceiling-mount design for wide coverage
- Local Zigbee automation
- Tuya Smart / Smart Life app support
Technical Specifications
Wireless Protocol
Zigbee (2.4 GHz)
Power Supply
AC 100–250 V
Operating Current
≤ 70 mA
Detection Technology
5.8 GHz mmWave radar
Detection Range
0–9.5 m (configurable)
Sensitivity Levels
0–9
Detection Latency
0–10 seconds
Target Disappearance Delay
20 seconds – 25 minutes
Ambient Light Sensor
0–2000 lux
Operating Temperature
–20 °C to +70 °C
Installation
Ceiling mount
Dimensions
Ø93 × 30 mm
RF Output Power
Up to +10 dBm
Installation / Application Notes
• Requires a Zigbee hub (not included)
• Designed for ceiling installation for best coverage
• Avoid mounting near fans, HVAC vents, or moving curtains
• Not a PIR sensor — detects presence even without movement
In the Box
• Tuya Zigbee mmWave Presence Sensor ×1
• User manual ×1
