SONOFF SNZB-06P Zigbee Human Presence Sensor
📘 Setup / Configuration Guide: Setting up the Sonoff Zigbee Human Presence Sensor
Overview
The SONOFF SNZB-06P is a Zigbee 3.0 human presence sensor using 5.8 GHz microwave radar to detect both moving and stationary people.
It is designed for reliable presence-based lighting and automation where PIR motion sensors fail, such as bathrooms, offices, and living rooms.
Key Features
• 5.8 GHz radar presence detection (moving + stationary targets)
• Detects micro-movements (e.g. breathing, small gestures)
• Presence range up to 4 m with wide field of view
• Built-in ambient light sensor for light-aware automations
• Acts as a Zigbee router to strengthen mesh networks
• Local Zigbee scenes continue to work if the internet is down
• Compatible with: NSPanel Pro, iHost, ZB Bridge Pro, ZBDongle-E, Echo Plus, Home Assistant (ZHA / Zigbee2MQTT), SmartThings

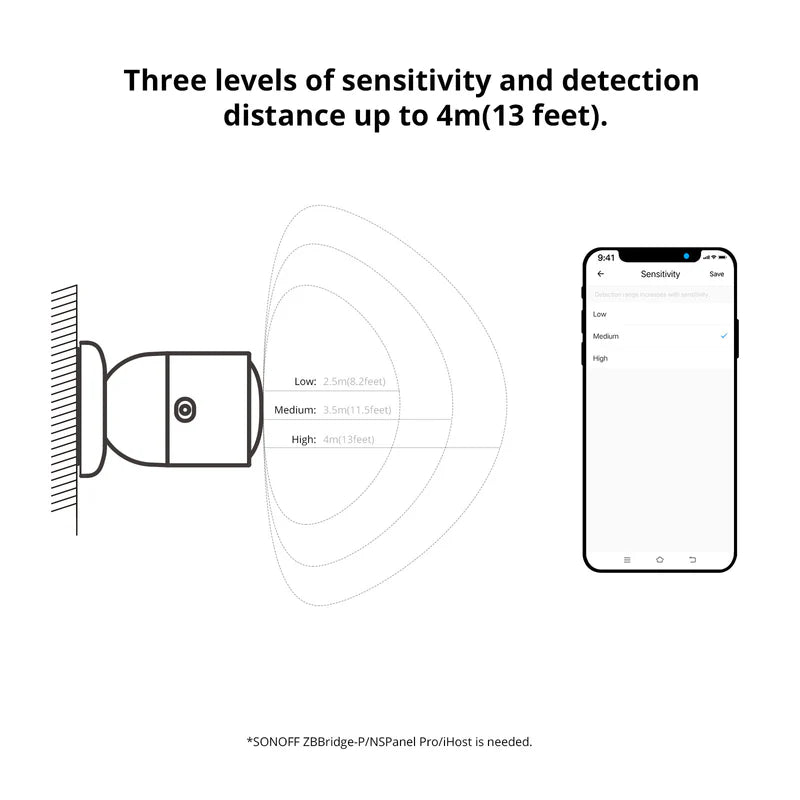

• Adjustable sensitivity and detection timeout (platform-dependent)

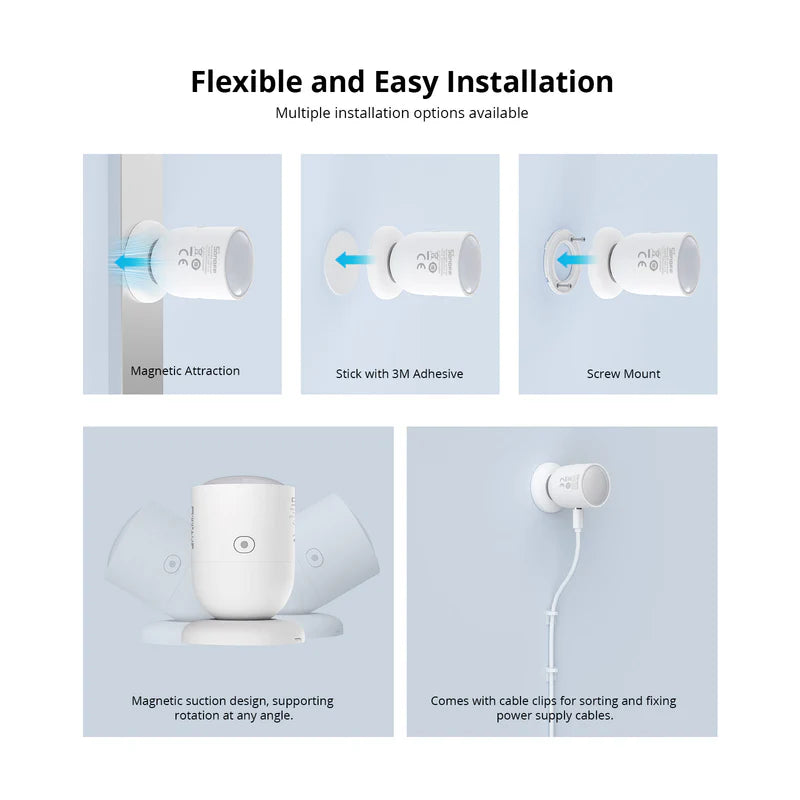

• Flexible mounting: wall, ceiling, corner, or flat surface

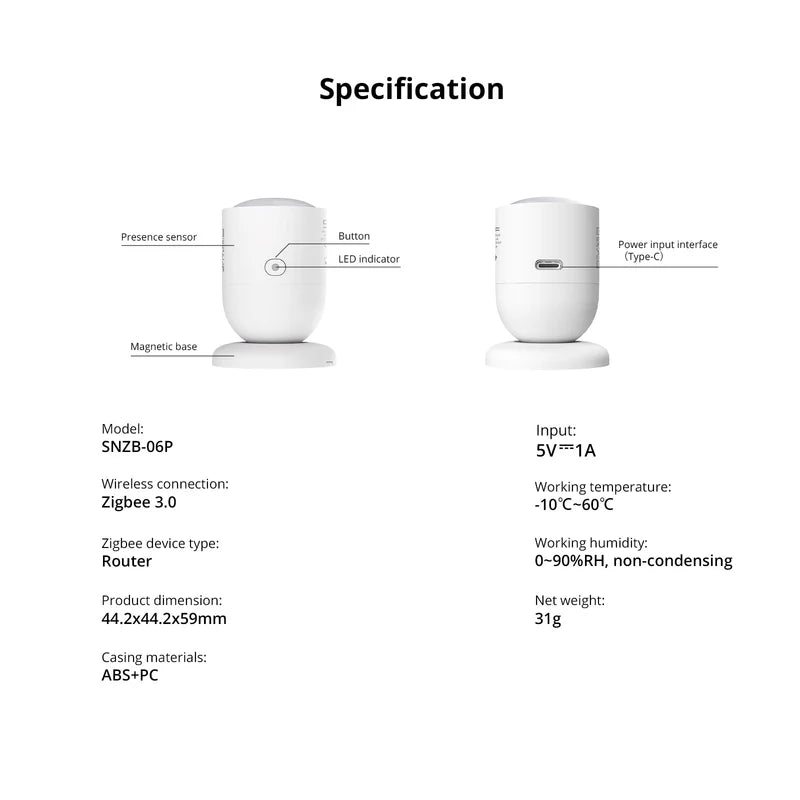

Specifications
| Item | Details |
|---|---|
| Model | SNZB-06P |
| Input Power | 5 V DC ⎓ 1 A (USB-C) |
| Wireless | Zigbee 3.0 |
| Zigbee Role | Router |
| Detection Technology | 5.8 GHz microwave radar |
| Presence Range | Up to 4 m (environment-dependent) |
| Detection Angle | Approx. 110°–180° (environment / mounting-dependent) |
| Sensors | Human presence + ambient light |
| Operating Temperature | −10 °C to +60 °C |
| Supported Platforms | Alexa, Google Home, SmartThings, Home Assistant, IFTTT (via eWeLink) |
Installation Notes
Mount at 1–2 m height on a wall, ceiling, or corner bracket.
Avoid direct airflow from fans/AC, moving curtains, reflective metal surfaces, and high pet traffic to reduce false triggers.
Requires a Zigbee hub (e.g. SONOFF ZBDongle-E/P, NSPanel Pro, iHost, ZB Bridge Pro, Echo Plus, or Home Assistant with Zigbee coordinator).
Pair via your Zigbee platform, then adjust sensitivity and timeout in the hub UI where supported.
In the Box
• SONOFF SNZB-06P Presence Sensor × 1
• USB-C power cable × 1
• Mounting bracket × 1
• Screws + wall plugs × 1 set
• Quick start guide × 1
