Shelly Wave Pro Shutter – Z-Wave DIN-Rail Shutter Controller with Power Monitoring
Overview
Shelly Wave Pro Shutter is a professional Z-Wave shutter controller designed for DIN-rail installation inside electrical cabinets and breaker boxes. It provides precise control over bi-directional AC motors used in roller shutters, blinds, venetian blinds, awnings, pool covers, and similar applications. With integrated power monitoring, it can accurately determine position, end stops, and detect motor load conditions for safer and more reliable automation.
Built on the Z-Wave 800 Series platform, Wave Pro Shutter offers secure communication, SmartStart inclusion, and full compatibility with certified Z-Wave gateways. It also supports direct associations for local control without cloud dependency.
Key Features
• Professional DIN-rail Z-Wave shutter controller
• Designed for bi-directional AC motors
• Precise position control (open / close / percentage)
• Venetian blind slat angle (tilt) control
• Built-in power monitoring for motor load detection
• Supports push-buttons (momentary) and toggle switches
• Z-Wave 800 Series (S800) chipset
• SmartStart automatic inclusion
• Security 2 Authenticated (AES128)
• OTA firmware updates (via compatible gateway)
• Acts as a Z-Wave repeater
• Extremely low power consumption (< 0.3 W)
Technical Specifications
Power & Load
Power Supply: 110–240 V AC, 50/60 Hz
Max Switching Voltage (AC): 240 V
Max Switching Current (AC): 16 A
Power Consumption: < 0.3 W
Power Measurement: Yes
Z-Wave
Z-Wave Chipset: Z-Wave S800 (800 Series)
Frequency Band (UK/EU): 868.4 MHz
Repeater Function: Yes
Typical Indoor Range: Up to 40 m (environment dependent)
Max RF Power: < 25 mW
Physical

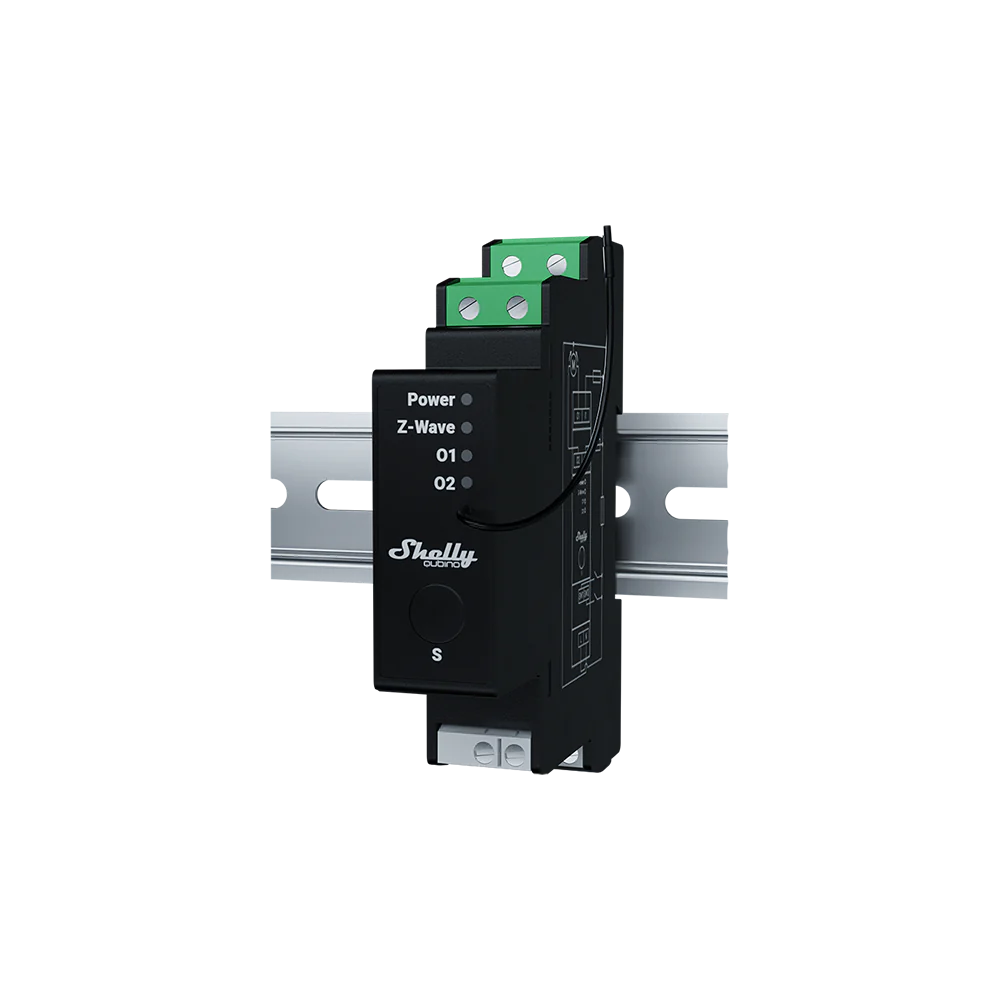

Mounting: DIN rail

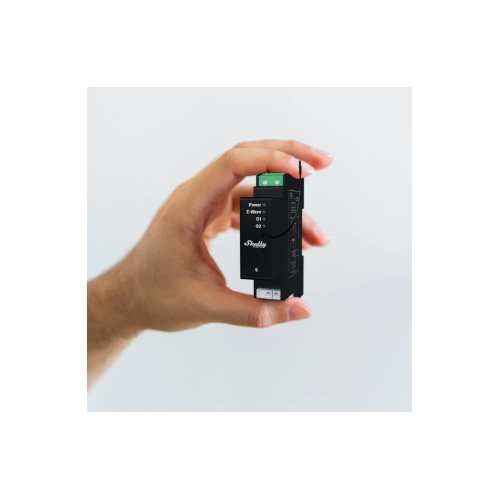

Dimensions: 94 × 19 × 69 mm
Weight: Not specified
Environmental
Operating Temperature: -20 °C to 40 °C
Humidity: 30–70% RH
Installation Notes
• DIN-rail device intended for installation inside a breaker box or electrical cabinet
• Designed specifically for bi-directional AC motors (up/down control)
• Power monitoring enables accurate calibration and position tracking
• Supports venetian blind slat tilt control in addition to standard shutter movement
• Includes overheating and overload protection for motor safety
• Requires a compatible Z-Wave gateway for setup and automation (not included)
• Acts as a Z-Wave repeater to extend mesh network range
Typical Use Cases
• Roller shutters and blinds
• Venetian blinds with slat angle control
• Motorised awnings and screens
• Pool covers and window actuators
• Residential, commercial, and hospitality automation
In the Box

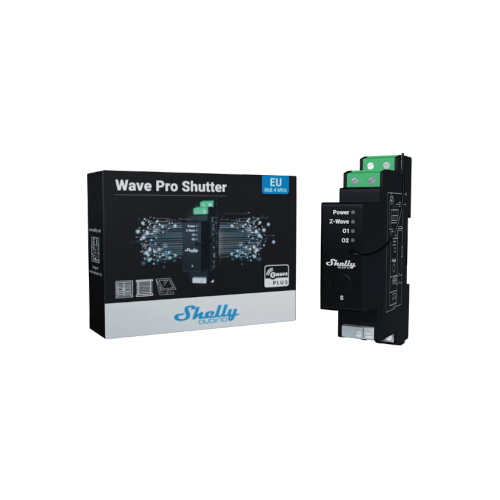

• Shelly Wave Pro Shutter
• Quick start guide
