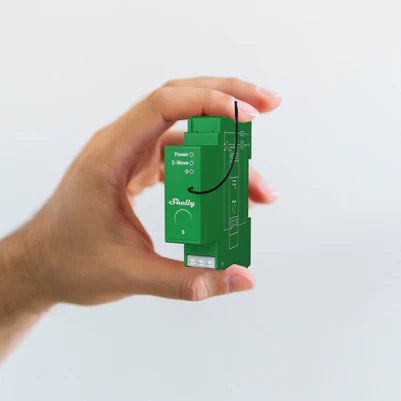

Shelly Wave Pro Dimmer 1PM

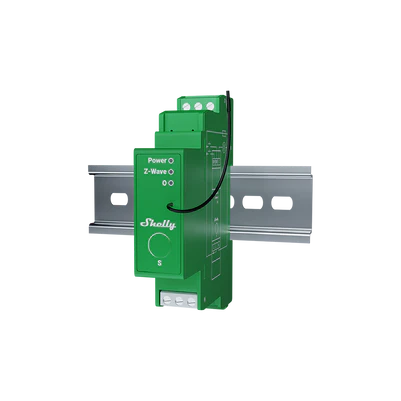

Shelly Wave Pro Dimmer 1PM - Image 2

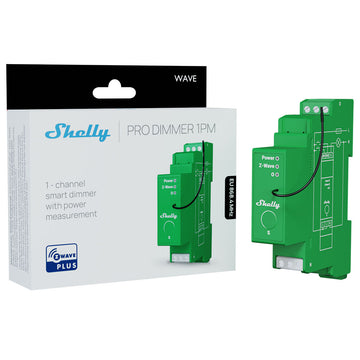

Shelly Wave Pro Dimmer 1PM - Image 3

Shelly Wave Pro Dimmer 1PM

£64.99

1 in stock

Categories: , , Tag: Brand:

Overview

The Shelly Wave Pro Dimmer 1PM is a DIN-rail Z-Wave smart dimmer designed for installation inside consumer units and electrical cabinets. It provides trailing-edge dimming with integrated power monitoring, allowing you to control lighting brightness while tracking energy consumption through a compatible Z-Wave hub.

Built on the Z-Wave 800 Series chipset, the device offers reliable wireless connectivity and supports flexible dimming control using switch or push-button inputs. With adjustable brightness limits, fade rates, and automatic calibration, it is designed for precise lighting control in smart home and building automation systems.

Key features

  • Single-channel DIN-rail Z-Wave dimmer using trailing-edge dimming
  • Integrated power monitoring for the connected load
  • Automatic dimming calibration
  • Supports switch or push-button inputs
  • Supports one-button or dual-button dimming control
  • Adjustable minimum and maximum brightness limits
  • Adjustable fade rate and transition time
  • Z-Wave 800 Series (S800) chipset
  • SmartStart support for quick inclusion
  • OTA firmware updates via compatible gateways
  • Security 2 (S2) authenticated encryption
  • Acts as a Z-Wave repeater in mesh networks

Product information

Use cases
  • Smart Lighting Dimming Control
  • Control the brightness of compatible dimmable lighting circuits from your Z-Wave smart home system.
  • Energy Monitoring for Lighting Circuits
  • Track real-time power consumption of dimmed lighting loads to better understand energy usage.
  • DIN-Rail Smart Lighting Installations
  • Install inside electrical cabinets or breaker panels to manage lighting circuits in larger smart home or building automation systems.
Technical specifications
Electrical
Power Supply
110–240 V AC, 50/60 Hz
Power Consumption
< 0.3 W
Dimming Type
Trailing edge
Power Measurement
Yes
Maximum Output Power
200 W
Z-Wave
Chipset
Z-Wave S800 (800 Series)
Frequency Band
868.4 MHz (UK/EU)
Repeater Function
Yes
Typical Indoor Range
Up to 40 m
Maximum RF Power
< 25 mW
Physical
Mounting
DIN rail
Dimensions
94 × 19 × 69 mm
Weight
75 g
Environmental
Operating Temperature
-20 °C to 40 °C
Humidity
30–70% RH
Maximum Altitude
2000 m
What’s included
  • Shelly Wave Pro Dimmer 1PM
  • Quick start guide
