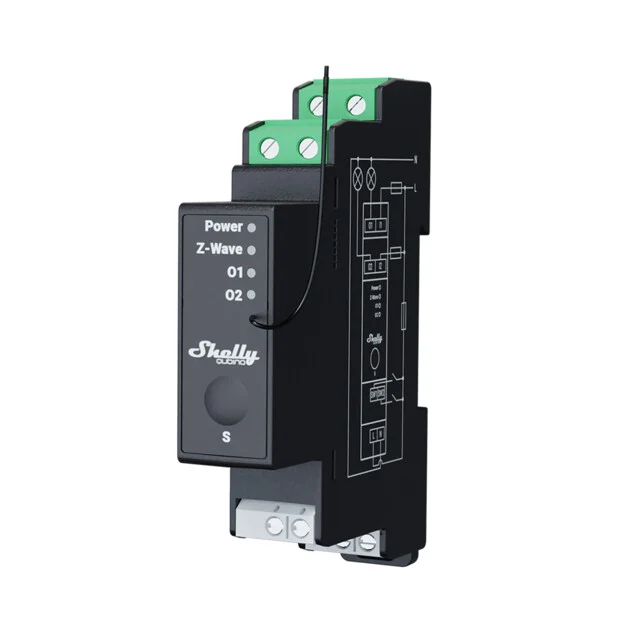

Shelly Wave Pro 2PM – 2-Channel Z-Wave DIN-Rail Smart Relay (Power Monitoring)
Overview
Shelly Qubino Wave Pro 2PM is a professional-grade, 2-channel Z-Wave smart relay with integrated power monitoring, designed for DIN-rail installation inside electrical cabinets and consumer units. It enables reliable switching and energy measurement of lighting circuits and electrical appliances in both residential and commercial environments.
Each channel supports up to 16A, with a total combined device limit of 25A. Individual and combined power consumption can be monitored via a compatible Z-Wave gateway, making it ideal for automation scenarios where load visibility, safety, and reliability are required.
Key Features
• 2-channel DIN-rail mounted Z-Wave smart relay
• Up to 16A per channel, 25A total device limit
• Power monitoring per channel and combined
• Single-phase operation
• Suitable for lighting circuits and electrical appliances
• Z-Wave 800 Series (S800) chipset
• SmartStart inclusion for simplified setup
• Security 2 Authenticated (S2) encryption
• Over-the-air firmware updates (via supported gateway)
• Acts as a Z-Wave repeater (mesh network)
• Extremely low idle power consumption (< 0.3W)
Technical Specifications
Power Supply:
110–240 V AC ±10%, 50/60 Hz
Power Consumption:
< 0.3 W
Switching Capability:
Max switching voltage (AC): 240 V
Max switching current (AC): 16A per channel, 25A total
Power Measurement:
Yes – per channel and combined
Z-Wave:
Chipset: Z-Wave S800 (800 Series)
Frequency band (UK/EU): 868.4 MHz
Repeater function: Yes
Typical indoor range: Up to 40 m (environment dependent)
Max RF power: < 25 mW
Mounting & Physical:
Mounting: DIN rail
Dimensions: 94 × 19 × 69 mm
Weight: Approx. 75 g
Environmental:
Operating temperature: −20 °C to 40 °C
Humidity: 30–70% RH
Installation Notes

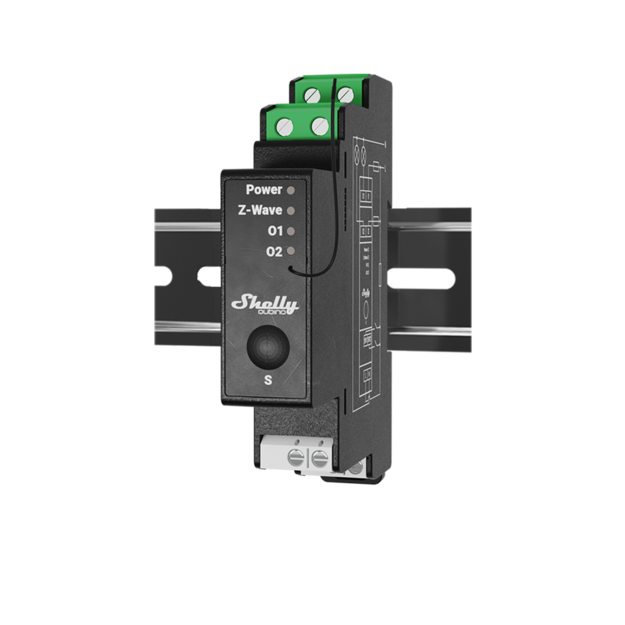

• Designed for DIN-rail installation inside a breaker box or electrical cabinet
• Intended for use by qualified installers or electricians
• Directly switches connected loads using internal relays
• Suitable for automation of lighting circuits and appliances
• Integrated safety protections include overvoltage, overcurrent, overpower, and overheating protection
• Requires a compatible Z-Wave gateway for configuration and remote control (not included)
• Acts as a repeater in standard Z-Wave mesh networks

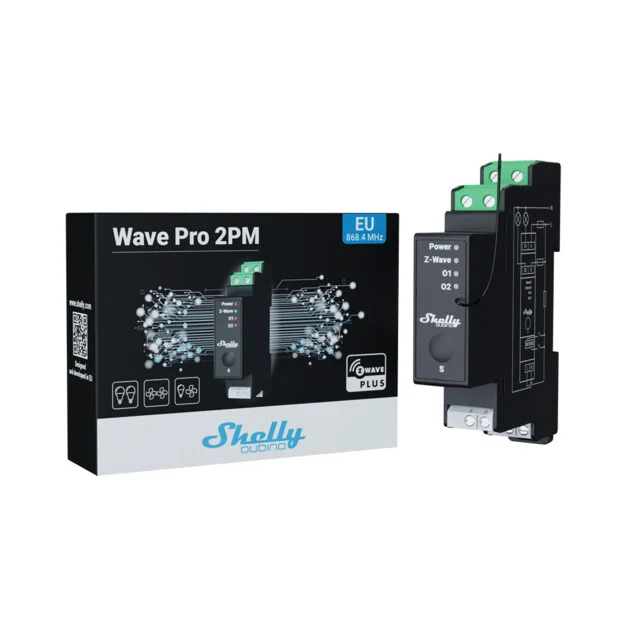

In the Box
• Shelly Qubino Wave Pro 2PM
• Quick start guide
