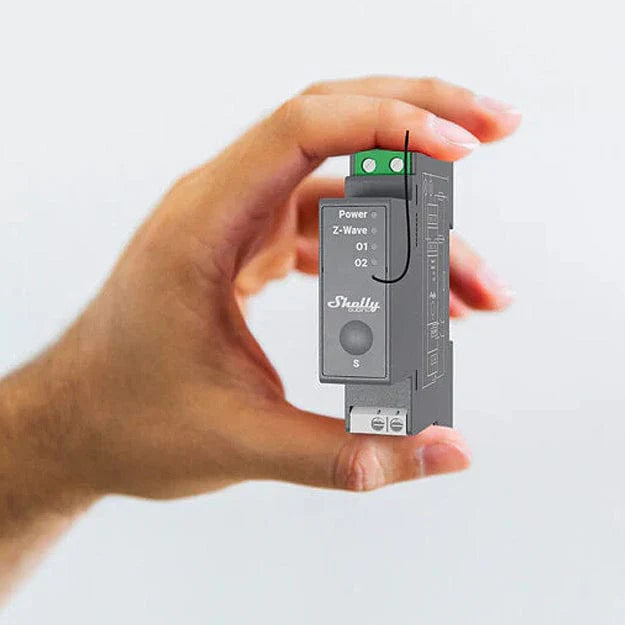

Shelly Wave Pro 2 – 2-Channel Z-Wave DIN-Rail Smart Relay (Dry Contacts)
Overview
Shelly Wave Pro 2 is a professional-grade 2-channel Z-Wave smart relay designed for DIN-rail installation inside electrical cabinets and consumer units. Each channel supports up to 16A, with a combined device maximum of 25A, making it suitable for controlling lighting circuits, appliances, and automation loads in both residential and commercial environments.
The device features potential-free (dry contact) outputs, allowing it to switch a wide range of voltages and circuits independently of the supply voltage. Control, automation, and scheduling are handled via a compatible Z-Wave gateway and supported home automation platforms such as Home Assistant.
Key Features
• 2-channel DIN-rail mounted Z-Wave smart relay
• Up to 16A per channel, 25A total device limit
• Potential-free (dry contact) outputs
• Suitable for low- and high-voltage switching applications
• Designed for lighting and appliance automation
• Z-Wave 800 Series (S800) chipset
• SmartStart inclusion for simplified setup
• Security 2 Authenticated (S2) encryption
• Over-the-air firmware updates (via compatible gateway)
• Acts as a Z-Wave repeater (mesh network)
• Extremely low idle power consumption (< 0.3W)
Technical Specifications
Power Supply:
110–240 V AC, 50/60 Hz
Power Consumption:
< 0.3 W
Switching Capability:
Max switching voltage (AC): 240 V
Max switching current (AC): 16A per channel, 25A total
Dry contact outputs: Yes (potential-free)
Z-Wave:
Chipset: Z-Wave S800 (800 Series)
Frequency band (UK/EU): 868.4 MHz
Repeater function: Yes
Typical indoor range: Up to 40 m (environment dependent)
Max RF power: < 25 mW
Mounting & Physical:
Mounting: DIN rail
Dimensions: 94 × 19 × 69 mm
Weight: 73 g
Colour: Grey
Environmental:
Operating temperature: −20 °C to 40 °C
Humidity: 30–70% RH
Max altitude: 2000 m
Installation Notes

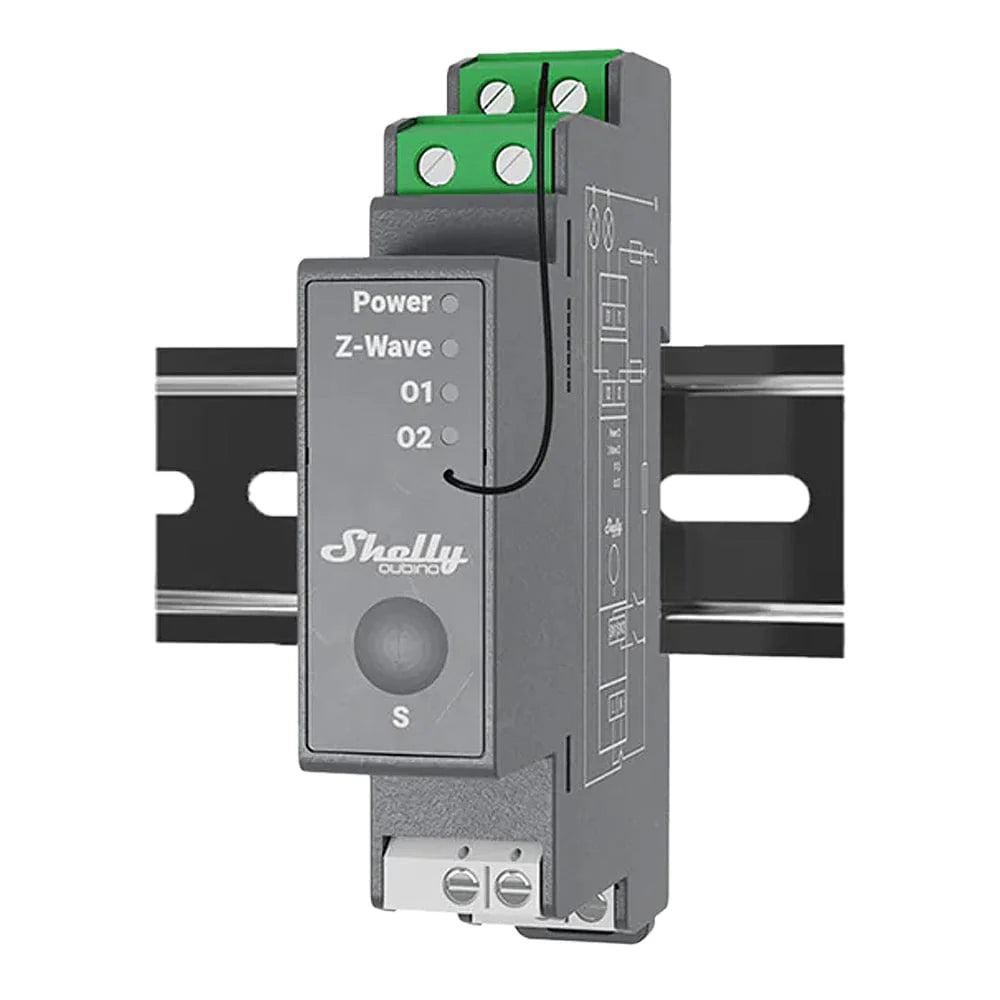

• Designed for DIN-rail installation inside breaker boxes and electrical cabinets
• Intended for installation by a qualified electrician
• Uses dry contacts, allowing flexible voltage switching independent of supply
• Suitable for lighting circuits, appliances, and automation control circuits
• Acts as a Z-Wave repeater in standard mesh networks
• Requires a compatible Z-Wave gateway for configuration and remote control (not included)
• Neutral wire may be required depending on installation scenario

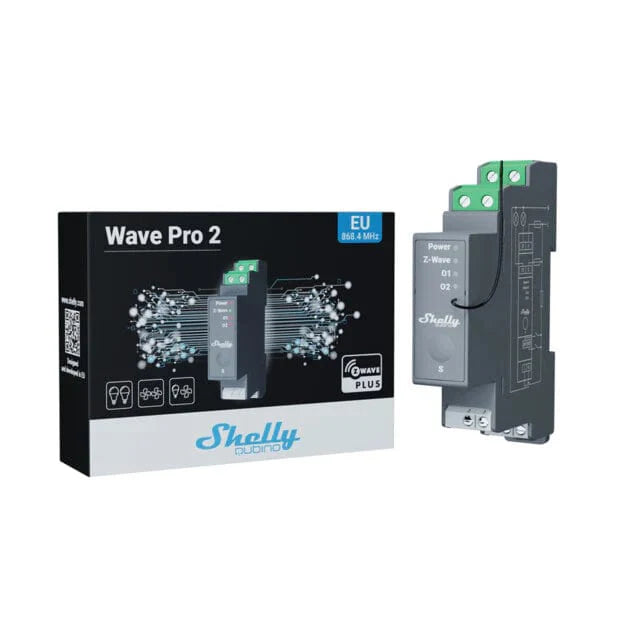

In the Box
• Shelly Wave Pro 2
• Quick start guide
