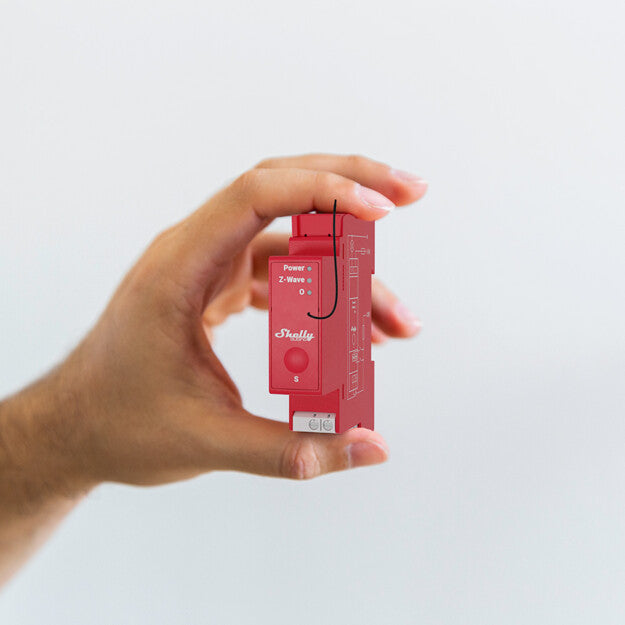

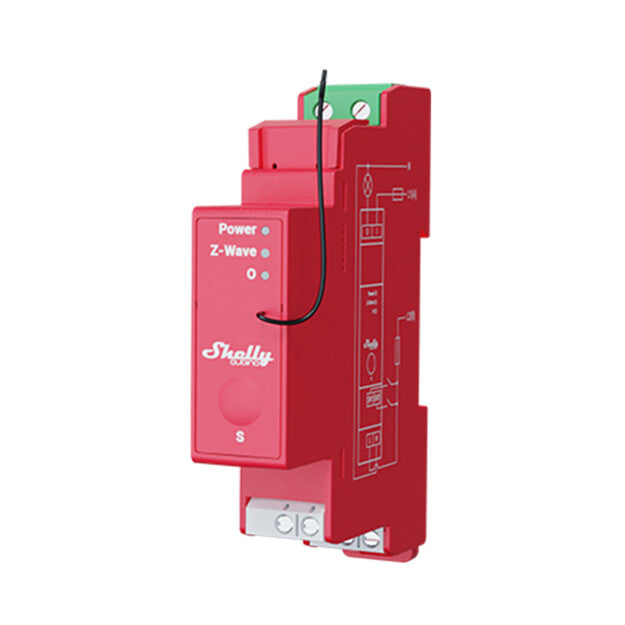

Shelly Wave Pro 1PM – 1-Channel Z-Wave DIN-Rail Smart Relay (Power Monitoring)
Overview
Shelly Wave Pro 1PM is a professional-grade, single-channel Z-Wave smart relay designed for DIN-rail installation inside electrical cabinets and consumer units. It provides reliable on/off control for lighting circuits and appliances while also measuring real-time power consumption, making it ideal for both automation and energy monitoring in residential and commercial environments.
Built on the Z-Wave 800 Series platform, Wave Pro 1PM supports secure communication, SmartStart inclusion, and mesh networking when paired with a compatible Z-Wave gateway. Integrated electrical protections make it suitable for long-term, always-on installations where safety and reliability are critical.
Key Features
• 1-channel DIN-rail Z-Wave smart relay
• Rated up to 16 A on a single output
• Integrated power metering (W) for energy monitoring
• Suitable for lighting circuits and higher-load appliances
• Z-Wave 800 Series (S800) chipset
• SmartStart QR-code inclusion
• Security 2 Authenticated (AES-128 encryption)
• OTA firmware updates via compatible Z-Wave gateway
• Acts as a Z-Wave repeater in mesh networks
• Extremely low idle power consumption (< 0.3 W)
Technical Specifications
Power & Switching
Power supply: 110–240 V AC ±10%, 50/60 Hz
Power consumption: < 0.3 W
Max switching voltage (AC): 240 V
Max switching voltage (DC): N/A
Max switching current (AC): 16 A
Power metering: Yes
Z-Wave
Chipset: Z-Wave S800 (800 Series)
Frequency band (UK / EU): 868.4 MHz
Repeater function: Yes
Indoor range: Up to 40 m (environment dependent)
Max RF output power: < 25 mW
Protection & Environment
Overheating protection: Yes
Voltage protection: Yes
Current protection: Yes
Max power protection: Yes
Operating temperature: −20 °C to 40 °C
Humidity: 30–70% RH
Physical
Mounting: DIN rail
Dimensions (H × W × D): 94 × 19 × 69 mm
Weight: Approx. 73 g
Installation Notes
• Designed for DIN-rail mounting inside breaker boxes and electrical cabinets
• Requires live and neutral supply to power the device
• Output is not potential-free (no dry contacts)
• Suitable for professional and permanent installations
• Integrated protections may automatically shut down the output if unsafe conditions are detected
• Requires a compatible Z-Wave gateway for configuration and operation (not included)
• Acts as a repeater in standard Z-Wave mesh networks

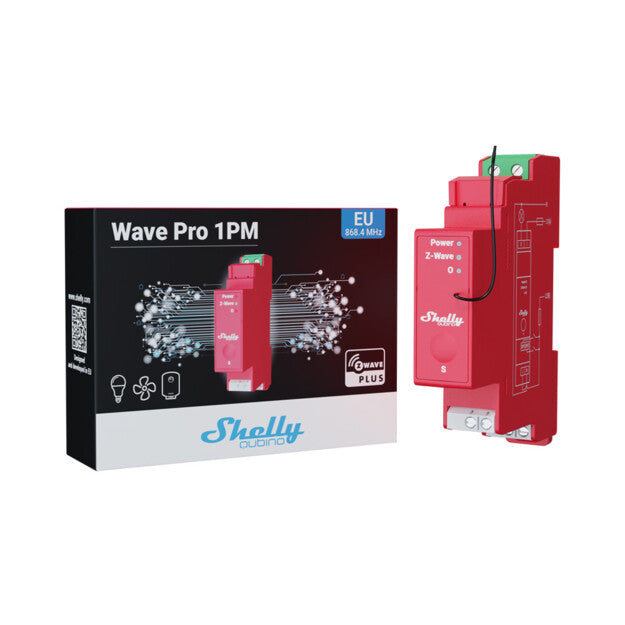

In the Box
• Shelly Wave Pro 1PM
• Quick start documentation
