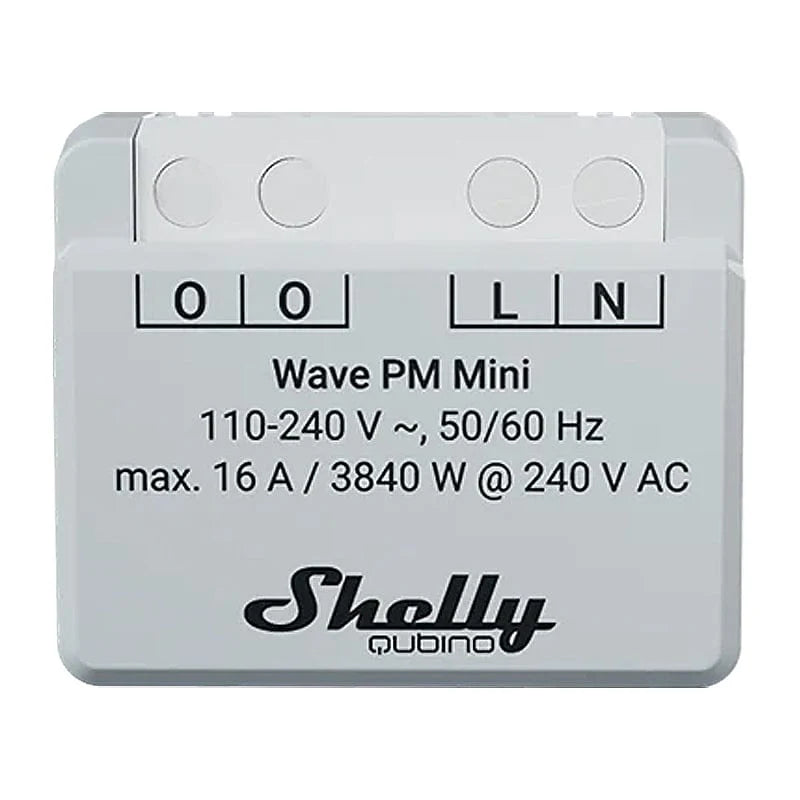

Shelly Wave PM Mini

Tested with Home Assistant
Original price £28.99 - Original price £28.99
Original price
£28.99
£28.99 - £28.99
Current price £28.99
Availability:
in stock, ready to be shipped

The Shelly Wave PM Mini is a compact Z-Wave power meter designed for accurate energy monitoring of AC-powered circuits without switching or relay control. It is ideal for installations where measurement is required but direct device control is not, such as monitoring fixed appliances or electrical circuits.

Built with the Z-Wave 800 Series chipset, the module delivers improved wireless range and reliability while fitting easily inside tight wall boxes or crowded enclosures. Its extremely small form factor makes it suitable for discreet in-wall installations while still providing detailed power monitoring through your Z-Wave system.

Key Features
  • Power consumption monitoring only with no relay or load switching
  • Measures electrical loads up to 16 A (3840 W)

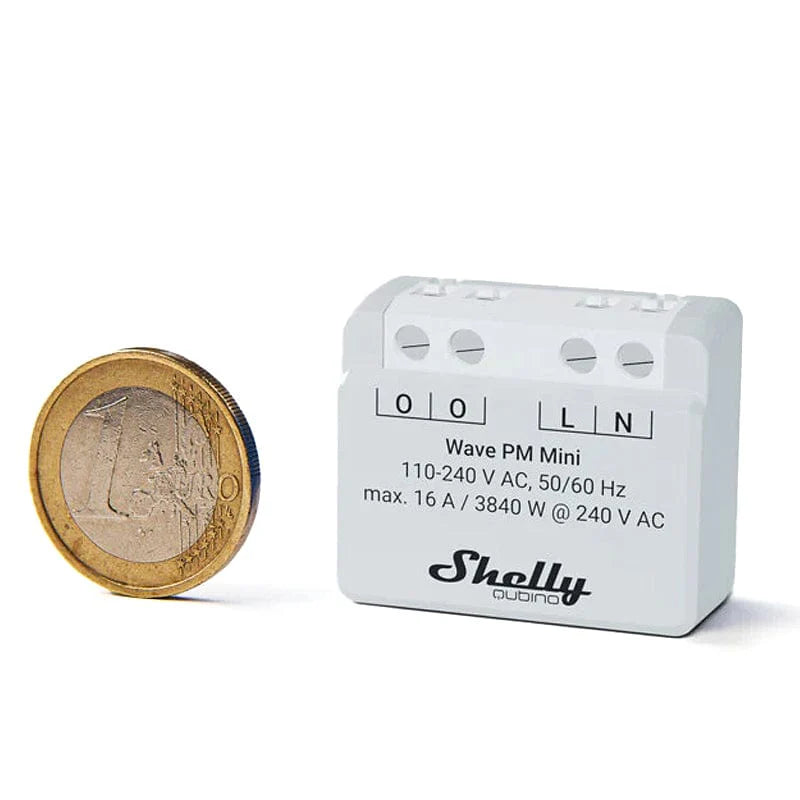

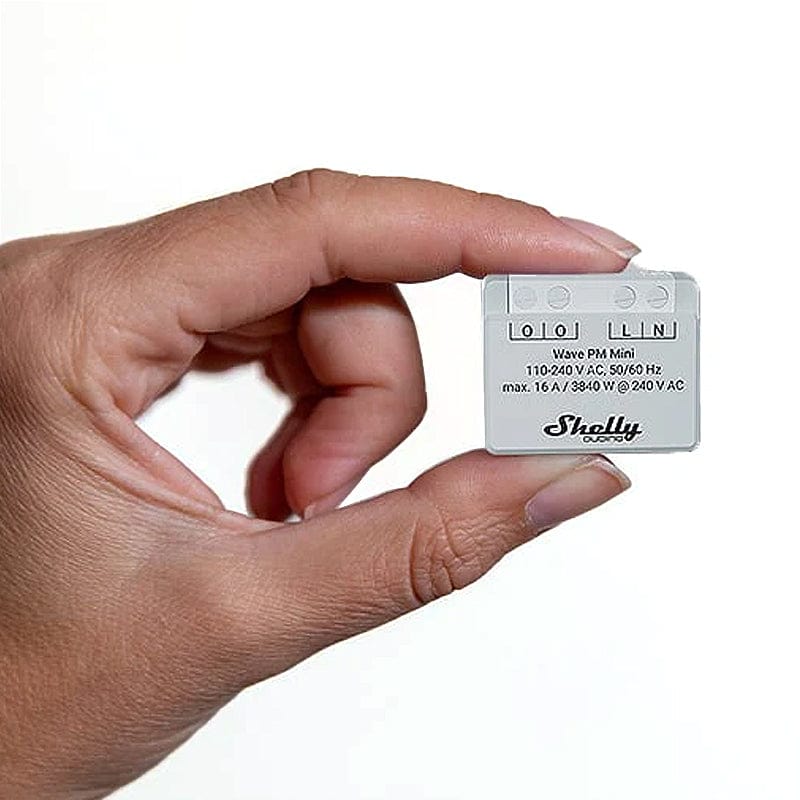

  • Compact mini form factor for tight wall boxes
  • Z-Wave 800 Series chipset for improved range and reliability
  • SmartStart support for fast Z-Wave inclusion
  • Supports Z-Wave associations for local reporting
  • Extremely low standby power consumption (< 0.3 W)
  • OTA firmware updates via compatible Z-Wave hubs
  • Security 2 (S2) authenticated encryption
Use Cases

Monitoring Individual Circuits

Track the energy consumption of specific circuits such as lighting, heating systems, or appliance lines without interrupting power.

Appliance Energy Monitoring

Measure the power usage of fixed appliances such as boilers, ovens, or HVAC systems to better understand household energy consumption.

Smart Home Energy Insights

Integrate with a Z-Wave hub to collect detailed energy usage data and build automations or dashboards based on electrical consumption.

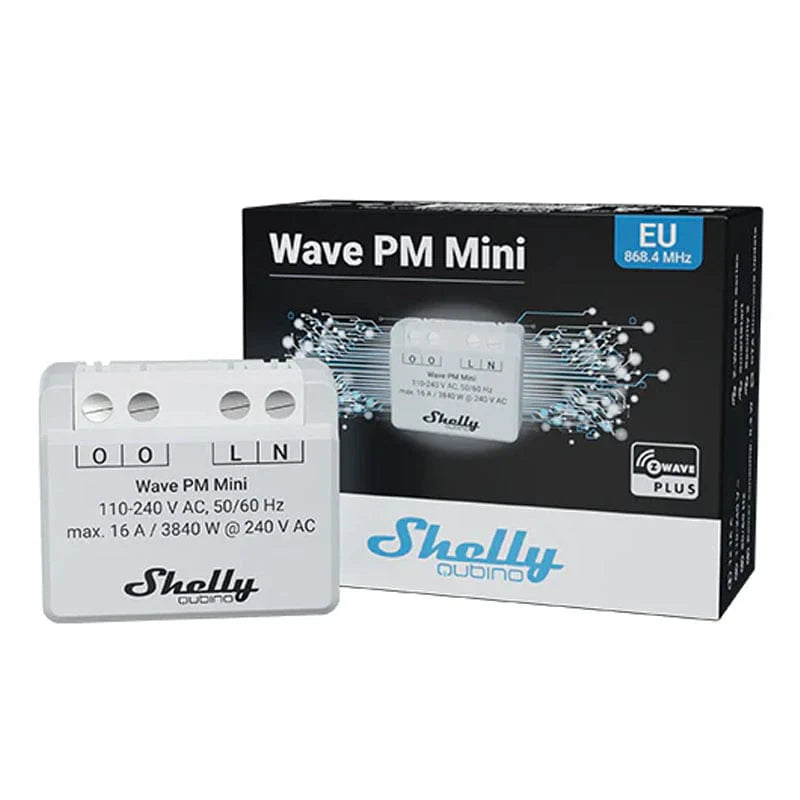

What’s Included
  • Shelly Wave PM Mini
  • Quick start guide
Technical Specifications
Electrical
Power Supply: 110–240 V AC, 50/60 Hz

Maximum Measurement Power: 3840 W

Maximum Measurement Current: 16 A

Standby Power Consumption: < 0.3 W

Power Monitoring: Yes

Overheating Protection: Yes
Z-Wave
Protocol: Z-Wave Plus

Frequency Band: 868.4 MHz (UK/EU)

Chipset: Z-Wave S800 (800 Series)

Security: S2 Authenticated

Repeater Function: Yes

Typical Indoor Range: Up to 40 m
Physical
Dimensions: 29 × 35 × 16 mm

Weight: 13 g

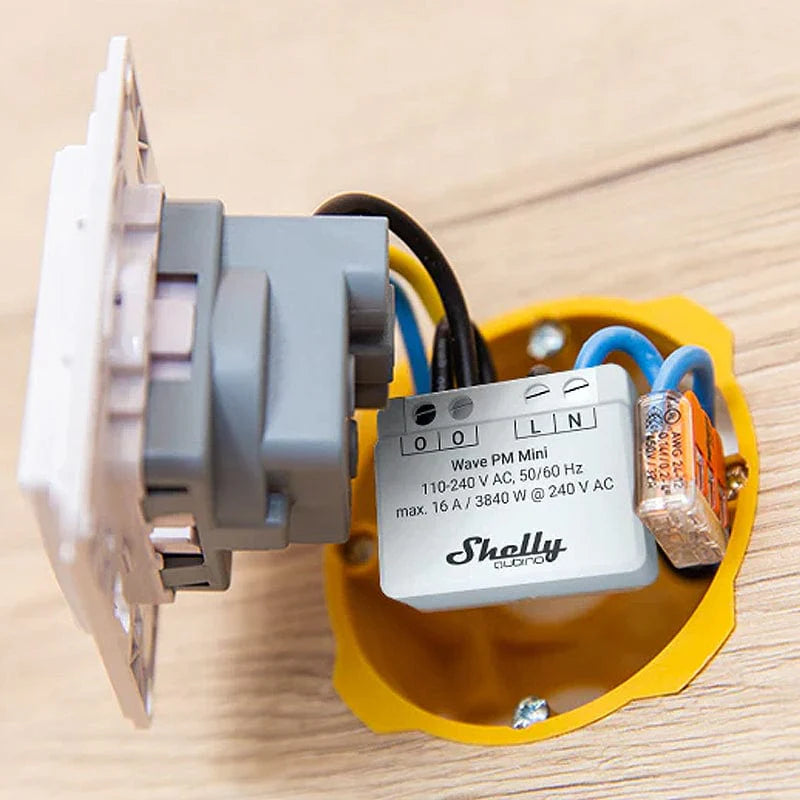

Mounting: In-wall wall box installation

Terminal Torque: 0.4 Nm

Conductor Size: 0.5–1.5 mm²

Material: Plastic

Colour: Light grey
Environmental
Operating Temperature: -20 °C to 40 °C

Humidity: 30–70% RH

Maximum Altitude: 2000 m
