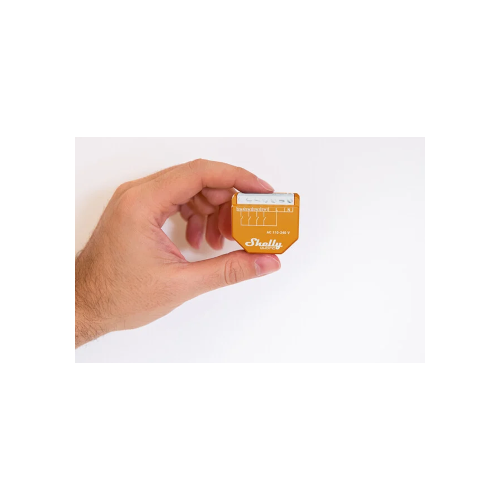

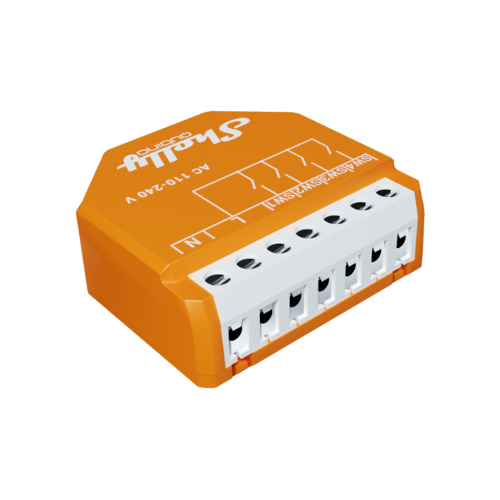

Shelly Wave i4 – Z-Wave 4-Input Scene Controller (AC Powered)
Overview
Shelly Wave i4 is a Z-Wave input controller designed to convert up to four physical switches or push-buttons into smart triggers for scenes, automations, and device control. It does not switch loads directly and contains no relays; instead, it reports input actions to your Z-Wave network, enabling flexible manual control of other devices from standard wall switches.
Key Features
• 4 digital inputs for switches or push-buttons
• Input reader only — no relays and no direct load switching
• Supports multi-action input (short, long, and double press)
• Up to 12 actions or scenes configurable (3 per input)
• Z-Wave associations for direct device-to-device control (up to 2 per input)
• Extremely low standby power consumption (< 0.2 W)
• Z-Wave 800 Series (S800) chipset
• SmartStart for fast, secure inclusion
• OTA firmware updates
• Security 2 Authenticated (S2)
• Acts as a Z-Wave repeater to extend mesh coverage
Technical Specifications
Power
Power Supply: 110–240 V AC, 50/60 Hz
Power Consumption: < 0.2 W
Z-Wave
Protocol: Z-Wave Plus
Frequency Band: 868.4 MHz (UK/EU)
Chipset: Z-Wave S800 (800 Series)
Security: S2 Authenticated
Repeater Function: Yes
Typical Indoor Range: Up to 40 m (environment dependent)
Max RF Power: < 25 mW
Inputs
Number of Inputs: 4
Physical
Dimensions: 42 × 37 × 16 mm
Terminal Torque: 0.4 Nm
Conductor Size: 0.5–1.5 mm²
Conductor Strip Length: 5–6 mm
Environmental
Operating Temperature: -20 °C to 40 °C
Humidity: 30–70% RH
Installation Notes
• AC-powered device (110–240 V AC); does not support DC supply
• Input-only controller — designed to trigger scenes, automations, or other Z-Wave devices
• Requires a compatible Z-Wave hub for configuration (not included)
• Z-Wave associations allow limited direct control without hub involvement after setup
• Neutral wire required for powering the device
• Suitable for installation behind wall switches or inside electrical boxes
• Indoor use only

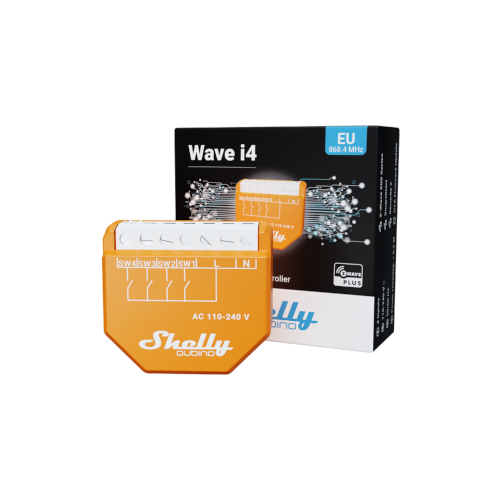

In the Box
• Shelly Wave i4
• Quick start guide
