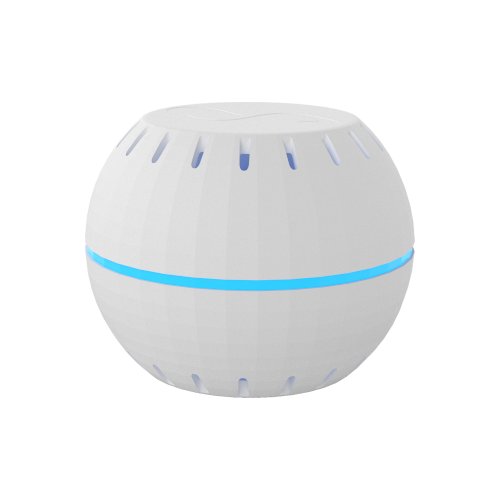

Shelly Wave H&T LR – Z-Wave Temperature & Humidity Sensor (Long Range)
Overview
Shelly Wave H&T is a compact, battery-powered Z-Wave temperature and humidity sensor designed to provide accurate, real-time environmental monitoring indoors. Built on the latest Z-Wave 800 Series platform, it supports both standard Z-Wave mesh networks and Z-Wave Long Range (ZWLR), allowing reliable direct communication with a compatible hub over extended distances.
By continuously measuring temperature and humidity, the sensor enables climate-aware automations such as controlling heating, cooling, humidifiers, dehumidifiers, or ventilation systems. This makes it suitable for improving comfort, preventing mould or dryness, and protecting temperature-sensitive spaces in homes or offices.
Key Features
• Accurate temperature and humidity sensing
• Supports Z-Wave mesh and Z-Wave Long Range (ZWLR)
• Z-Wave Long Range communication up to 1 km (line of sight)
• Immediate response time (< 300 ms)
• Battery-powered design with up to 2 years battery life
• Z-Wave 800 Series (S800) chipset
• SmartStart QR-code inclusion
• Security 2 Authenticated (AES-128 encryption)
• Compatible with certified Z-Wave gateways and devices
Technical Specifications
Power
Battery type: 1 × 3 V CR123A (not included)
Battery life: Up to 2 years (usage dependent)
Sensors
Temperature sensor: Yes
Humidity sensor: Yes
Operating temperature: −20 °C to +40 °C
Operating humidity: 30–70% RH
Z-Wave
Chipset: Z-Wave® S800
Mesh frequency band: 868.4 MHz
Long Range frequency band: 864.0 MHz
Repeater function: No (battery-powered device)
Indoor range (mesh): Up to 40 m (environment dependent)
Range (ZWLR): Up to 80 m indoors / up to 1 km line of sight
Max RF output power: < 25 mW
Physical
Mounting: Surface-mounted
Dimensions (H × W): 35 × 46 mm
Installation Notes
• Battery-powered sensor suitable for flexible placement without wiring
• Designed for indoor environmental monitoring
• Does not act as a Z-Wave repeater due to battery operation
• Z-Wave Long Range requires a compatible ZWLR-capable gateway
• Requires a Z-Wave gateway for configuration and automation (not included)
In the Box
• Shelly Wave H&T
• Quick start guide
