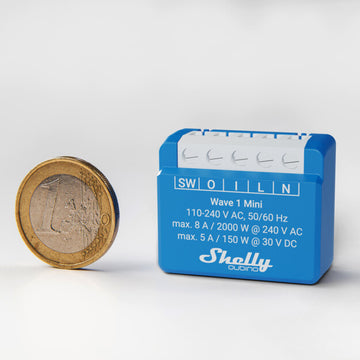

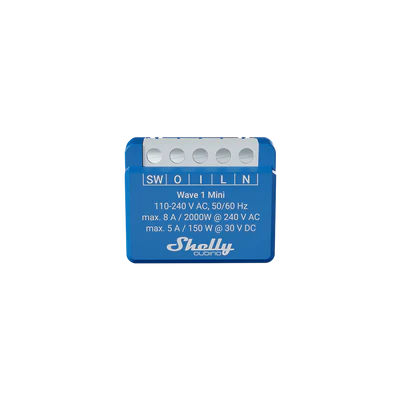

Shelly Wave 1 Mini – Z-Wave Smart Relay (Dry Contact, 8A)
Overview
Shelly Wave 1 Mini is a compact Z-Wave smart relay with dry (potential-free) contacts, designed for in-wall installations where space is limited. It allows on/off control of a connected circuit (AC or DC) while keeping the relay output electrically isolated, which is useful for controlling devices via a contact input rather than switching mains directly.
Key Features
• Single-channel relay with dry (potential-free) contacts
• Switches AC loads up to 8 A at 240 V or DC loads up to 5 A at 30 V
• Z-Wave mesh device that can extend the network (repeater function)
• Z-Wave 800 Series (S800) chipset for improved performance and reliability
• SmartStart support for fast, secure inclusion
• Supports Z-Wave associations for direct device-to-device control (hub still required for setup)
• Extremely low standby power consumption (< 0.3 W)
• OTA firmware updates via compatible Z-Wave hubs
• Security 2 Authenticated (S2) encryption
• Built-in overheating protection
Technical Specifications
Electrical
Power Supply: 110–240 V AC, 50/60 Hz
Max Switching Power (AC): 2000 W
Max Switching Current (AC): 8 A
Max Switching Voltage (AC): 240 V
Max Switching Current (DC): 5 A
Max Switching Voltage (DC): 30 V
Standby Power Consumption: < 0.3 W
Power Monitoring: No
Overheating Protection: Yes
Z-Wave
Protocol: Z-Wave Plus
Frequency Band: 868.4 MHz (UK/EU)
Chipset: Z-Wave S800 (800 Series)
Security: S2 Authenticated
Repeater Function: Yes
Typical Indoor Range: Up to 40 m (environment dependent)
Max RF Power: < 25 mW
Physical
Dimensions: 29 × 35 × 16 mm
Weight: 19 g
Mounting: Wall box (in-wall installation)
Terminal Torque: 0.4 Nm
Conductor Size: 0.5–1.5 mm²
Conductor Strip Length: 5–6 mm
Material: Plastic
Colour: Blue
Environmental
Operating Temperature: -20 °C to 40 °C
Humidity: 30–70% RH
Max Altitude: 2000 m

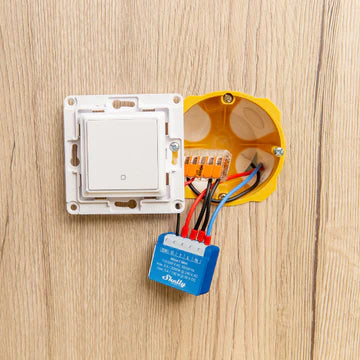

Installation Notes
• Dry-contact relay output (potential-free) — suitable for controlling devices via contact input (e.g. boilers, gates, garage door controllers, external relays)
• Also supports switching AC or DC circuits within the stated limits
• Requires a compatible Z-Wave hub (not included)
• Designed for permanent installation behind switches or inside enclosures
• As a mains-powered Z-Wave device, it can act as a mesh repeater to improve network coverage
• Indoor use only

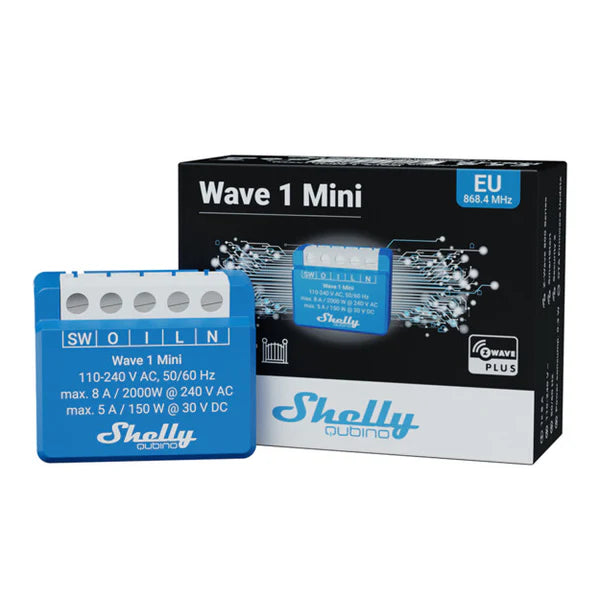

In the Box
• Shelly Wave 1 Mini
• Quick start guide
