Shelly Wall Display X2i – Smart Wall-Mounted Control Panel with Touchscreen

£169.99

Out of stock

Categories: , , Brand:

Overview

Shelly Wall Display X2i is a wall-mounted smart home control panel designed to provide centralised control of Shelly devices and compatible smart home systems through a large 6.95” touchscreen interface.

It includes a 1-output interchangeable power base with an integrated 5 A relay, allowing direct control of a lighting or appliance circuit. With Wi-Fi 6 dual-band connectivity, Bluetooth 5.0, and built-in sensors, the display enables responsive control, automation interaction, and a fully customisable smart home dashboard.

Key features

  • 6.95” colour touchscreen with portrait or landscape orientation
  • Interchangeable power base (1-output relay included)
  • Integrated 5 A relay for circuit control
  • Wi-Fi 6 dual-band and Bluetooth 5.0 connectivity
  • Built-in proximity, light (LUX), and motion sensors
  • Integrated speaker and microphone
  • Supports USB-C or mains power
  • Customisable smart home dashboard interface

Product information

Use cases
  • Smart Home Control Panel
  • Use as a central dashboard to control lighting, scenes, and Shelly devices from a wall-mounted interface.
  • Lighting and Appliance Control
  • Control a connected lighting or appliance circuit using the integrated relay in the included power base.
  • Home Automation Interface
  • Display automation status, trigger scenes, and monitor devices through a customisable touch interface.
Technical specifications
Physical

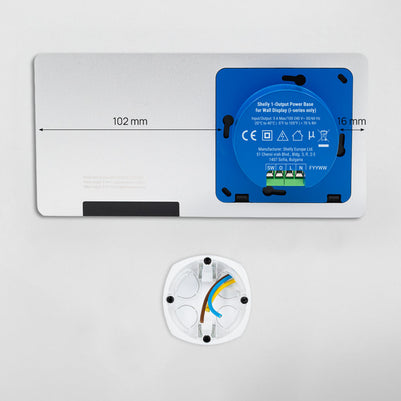

Dimensions (With Power Base)
87 × 178 × 36 mm
Dimensions (Without Power Base)
87 × 178 × 11 mm
Weight (With Power Base)
292 g
Weight (Without Power Base)
246 g
Touchscreen
5-point capacitive
Screen Resolution
1440 × 720 px
Mounting
Wall box
Shell Material
Plastic, aluminium, glass
Display Colour
Black or Silver
Power Base Colour
Blue
Speaker
0.8 W × 1
Environmental
Operating Temperature
−20 °C to 40 °C
Humidity
30–70% RH
Maximum Altitude
2000 m
Electrical
Power Supply
100–240 V AC, 50/60 Hz
Power Consumption
< 5 W
USB-C Power Input
5 V DC, 1 A
Output (Power Base)
Max Switching Voltage
240 V AC
Max Switching Current
5 A
USB-C Output
Voltage
5 V DC
Current
0.5 A
Sensors
Light (LUX) Sensor
Yes
Proximity Sensor
Yes
G-Sensor (Gestures)
Yes
Microphone
Yes
Connectivity – Wi-Fi
Protocol
Wi-Fi 6 (dual band)
RF Bands
2.4 GHz, 5 GHz
Max RF Power
< 20 dBm
Range
Up to 30 m indoors, up to 50 m outdoors
Connectivity – Bluetooth
Protocol
Bluetooth 5.0
RF Band
2402–2480 MHz
Max RF Power
< 4 dBm
Range
Up to 10 m indoors, up to 30 m outdoors
Microcontroller & System
CPU
Rockchip RK3326-S Quad-Core Cortex-A35 @ 1.5 GHz
RAM
2 GB
Flash Storage
8 GB
Operating System
Android 11
Firmware Capabilities
Schedules
20
Webhooks
20 (2 URLs per hook)
Scripting
No
MQTT
Yes
What’s included
  • Shelly Wall Display X2i
  • 1-output power base
  • Mounting hardware
  • User guide
