Seeed Studio Xiao 7.5" ePaper Panel
Seeed Studio Xiao 7.5" ePaper Panel - Image 2
Seeed Studio Xiao 7.5" ePaper Panel - Image 3

Seeed Studio Xiao 7.5″ ePaper Panel

£87.99

4 in stock

Categories: , , Brand:

Overview

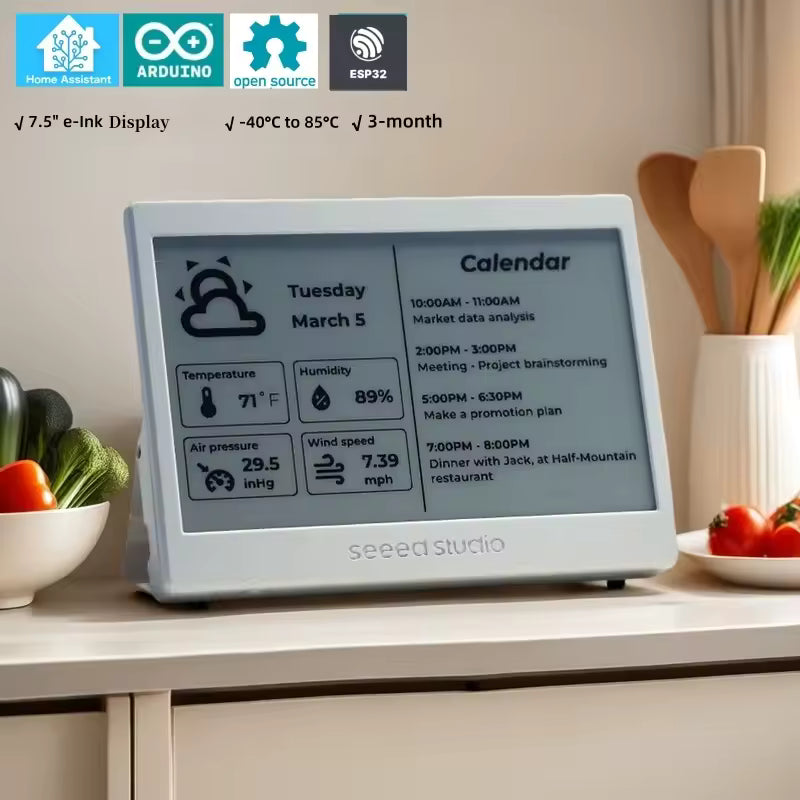

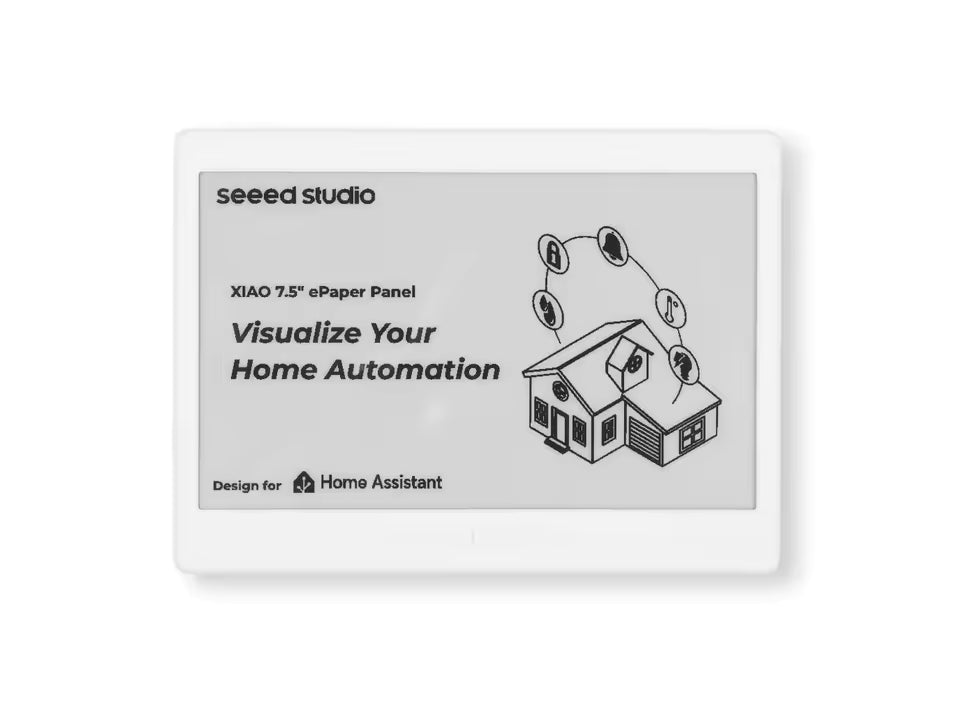

Seeed Studio XIAO 7.5″ ePaper Panel is a low-power monochrome ePaper display module built around the XIAO ESP32-C3 platform, designed for smart home dashboards, IoT panels, and custom automation interfaces. With Wi-Fi and Bluetooth connectivity, it supports integration via ESPHome firmware and can also be programmed using the Arduino IDE.

The 7.5-inch display provides 800 × 480 resolution, making it suitable for status panels, energy dashboards, and information boards. It includes a 2000 mAh rechargeable Li-ion battery, USB-C charging, and an external u.FL antenna connector for improved wireless performance. The unit is supplied in a compact enclosure with integrated stand for easy deployment.

Key features

  • 7.5-inch monochrome ePaper display
  • 800 × 480 resolution
  • Powered by XIAO ESP32-C3 module
  • Wi-Fi 4 and Bluetooth LE 5.0 connectivity
  • ESPHome firmware support
  • Arduino IDE compatibility
  • Internal 2000 mAh rechargeable battery
  • USB Type-C charging and programming
  • Wide operating temperature range

Product information

Use cases
  • Smart home dashboards
  • Display sensor readings, energy data, or automation status within Home Assistant using ESPHome.
  • Energy and status panels
  • Present periodic data updates in a low-power format suitable for always-on information boards.
  • Indoor and outdoor IoT displays
  • Deploy as an information display in environments with wide temperature variation.
  • Custom programmable interfaces
  • Develop bespoke automation interfaces using ESPHome or Arduino firmware.
Technical specifications
Processor and Module
Wireless module
XIAO ESP32-C3
SoC
Espressif ESP32-C3
CPU
Single-core RISC-V @ 160 MHz
SRAM
400 KB
ROM
384 KB
Flash storage
4 MB
Connectivity
Wi-Fi
802.11 b/g/n (2.4 GHz)
Bluetooth
Bluetooth LE 5.0
Antenna connector
u.FL (no antenna included)
Display
Display type
Monochrome ePaper
Size
7.5 inches
Resolution
800 × 480
Refresh time
1–5 seconds
Power
Operating voltage
3.3–5 V
Battery type
Rechargeable Li-ion (internal)
Battery capacity
2000 mAh
Battery life
Up to 3 months (6-hour refresh interval)
Power input
USB Type-C
Physical

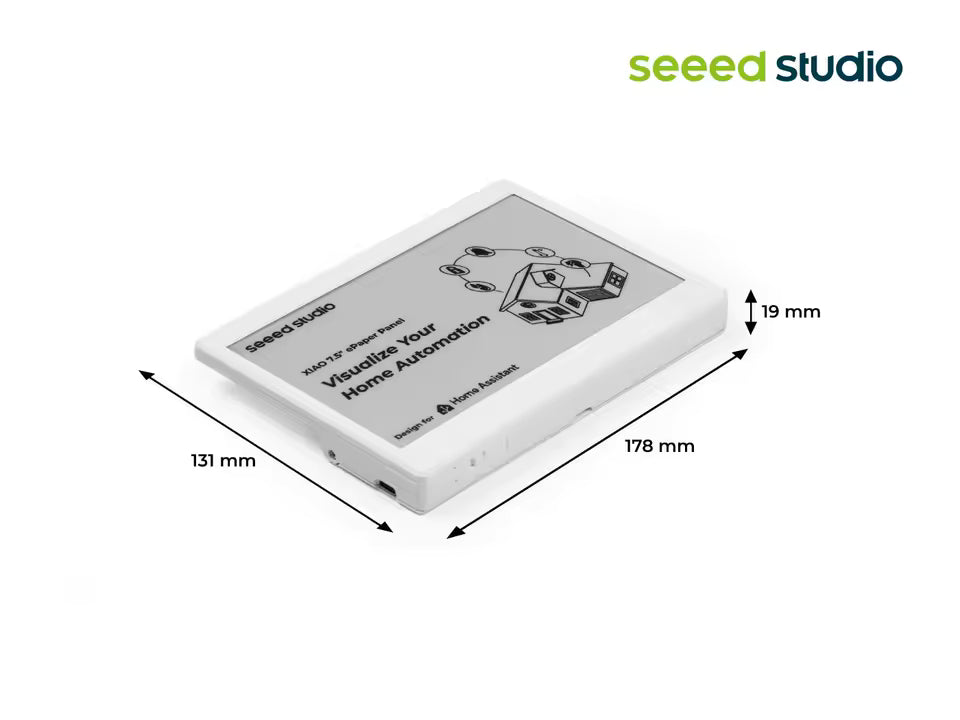

Dimensions
178 × 131 × 19 mm
Weight
218 g
Enclosure
Integrated housing with stand
Environment
Operating temperature
−40 °C to +85 °C
Other Features
Buttons
Boot and Reset
Battery switch
On/Off
What’s included
  • Seeed Studio XIAO 7.5" ePaper Panel
  • USB Charging Cable
