Shelly Wall Display and BLU H&T
Shelly Wall Display and BLU H&T - Image 2
Shelly Wall Display and BLU H&T - Image 3
Shelly Wall Display and BLU H&T - Image 4

Shelly Wall Display and BLU H&T

£114.99

1 in stock

Categories: , , , Brand:

Overview

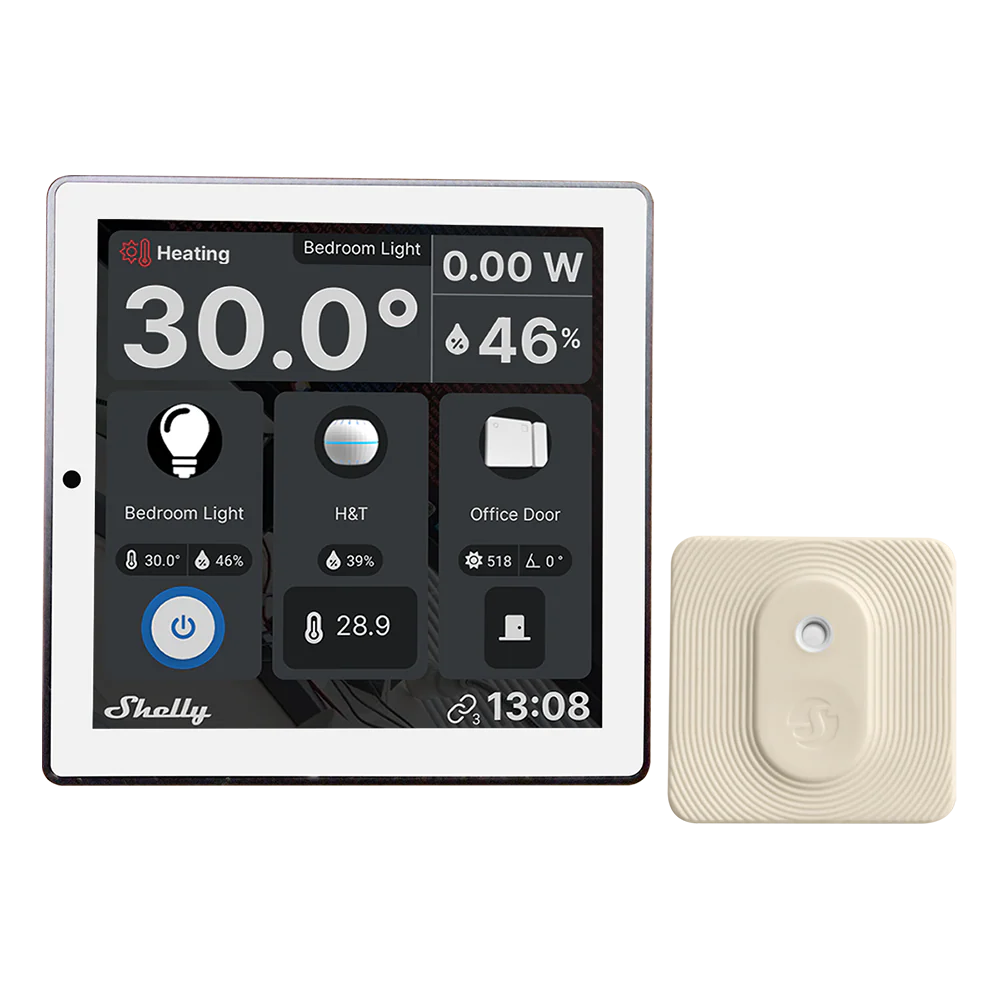

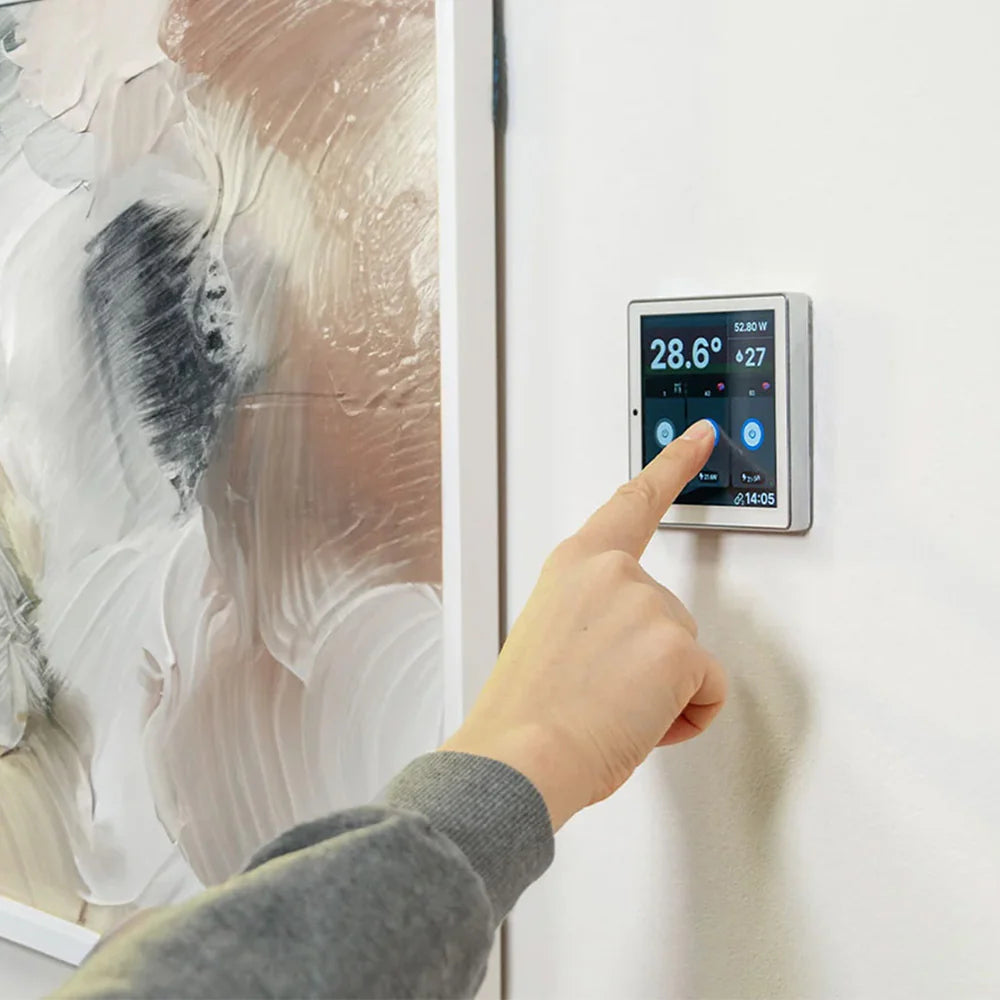

Shelly Wall Display is a wall-mounted smart home control panel with a 4-inch touch-sensitive colour display, designed to provide centralised room control, monitoring, and automation. It includes an integrated 5 A relay for appliance control, room-level power consumption monitoring, and built-in temperature, humidity, and light sensors to support advanced automations.

When paired with the Shelly BLU H&T sensor, the Wall Display can function as a room thermostat, enabling temperature-based control scenarios. The device connects via Wi-Fi with no hub required and also supports Bluetooth. It is intended for installation in a wall box and is suitable for residential, commercial, and institutional environments where a fixed control interface is preferred. A neutral wire is required for relay operation.

Key features

  • Touch-sensitive 4-inch colour display
  • Integrated 5 A relay for appliance control
  • Room-level power consumption monitoring
  • Built-in temperature, humidity, and light sensors
  • Supports room thermostat operation with Shelly BLU H&T
  • Customisable home screen and layouts
  • Wi-Fi and Bluetooth connectivity
  • Media player with Sonos integration
  • Supports scenes, schedules, and remote control via Shelly app

Product information

Use cases
  • Centralised room control
  • Use the wall display as a fixed control panel for lighting, appliances, and scenes within a room.
  • Room thermostat and climate monitoring
  • Pair with Shelly BLU H&T to enable temperature-based automation and thermostat-style control.
  • Energy visibility per room
  • Monitor and visualise power consumption of devices in a room to improve energy awareness.
  • Commercial and shared spaces
  • Deploy as a durable, always-on control interface in offices, meeting rooms, or shared environments.
Technical specifications
Power
Power supply
230 V AC, 50/60 Hz
Device consumption
< 1 W
Output
Relay output
Integrated
Maximum switching current
5 A
Maximum switching voltage
230 V AC
Inputs
Switch/button input
1 (screw terminal)
Power terminals
Live and neutral
Supported Loads
Resistive
Incandescent bulbs, heating appliances
Capacitive
Electronic equipment, capacitor banks
Inductive (with RC snubber)
LED drivers, transformers, fans, refrigerators, air conditioners, washing machines, dryers
User Interface
Display
4-inch touch-sensitive colour screen
Layout
Fully customisable
Sensors
Ambient temperature sensor
Yes
Humidity sensor
Yes
Light sensor
Yes
Internal temperature sensor
No
Connectivity
Wi-Fi
2.4 GHz 802.11 b/g/n
Wi-Fi range
Up to 30 m indoors / 50 m outdoors (environment dependent)
Bluetooth
4.2
Bluetooth range
Up to 10 m indoors / 30 m outdoors (environment dependent)
System
CPU
MTK6580
RAM
1 GB
Flash storage
8 GB
Firmware Capabilities
Schedules
Up to 20
Webhooks
Up to 20 (2 URLs per hook)
MQTT
Yes
Scripting
No
Physical

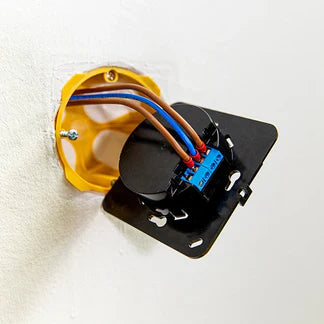

Mounting
Wall box
Dimensions
85 × 85 × 30 mm
Weight
180 g
Material
Plastic, aluminium, glass
Colour options
Black or White
Terminal torque
0.4 Nm
Conductor size
0.5–2.5 mm²
Stripped length
6–7 mm
Environment
Operating temperature
−20 °C to +40 °C
Operating humidity
30–70% RH
Maximum altitude
2000 m
What’s included
  • Shelly Wall Display
  • Mounting hardware
  • Quick start documentation
  • Shelly BLU H&T sensor
