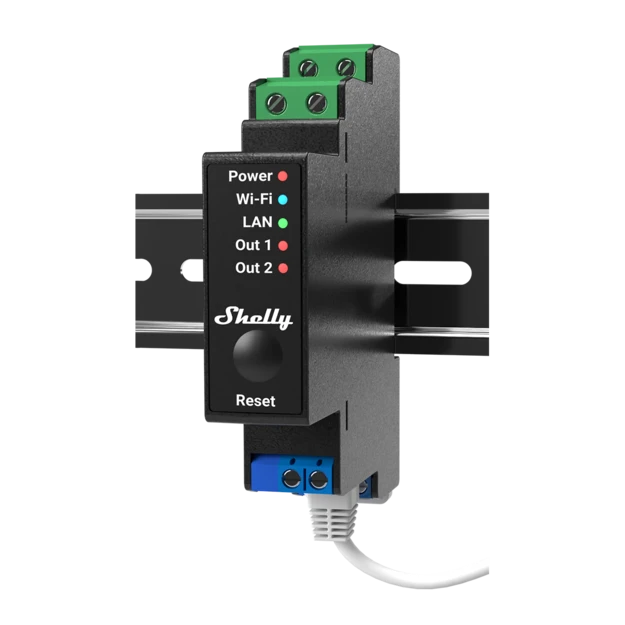

Shelly Pro 2PM

Original price £89.99 - Original price £89.99
Original price
£89.99
£89.99 - £89.99
Current price £89.99

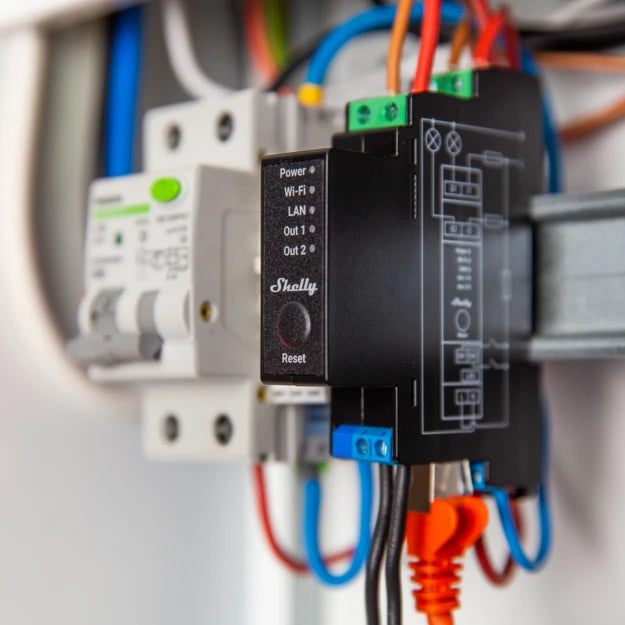

Professional 2-channel DIN rail relay with power metering & cover (roller shutter) control

  • LAN, Wi-Fi, and Bluetooth connection
  • 2 outputs, 16A each. Total device maximum of 25A
  • Power metering on each channel and free storage data
  • Cover (roller) control - roller shutters, awnings, gates, barriers, sliding doors, curtains, garage doors, bi-directional AC motors
  • 1-phase control
  • Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants





Specifications
POWER
Power supply AC 110 - 240 VAC, 50/60Hz
Maximum load 2 outputs, 16A each. Total device maximum of 25A
Channels 2 Channel
SPECIAL FUNCTIONS
Roller shutter mode Yes, with position control (roller shutters, gates, curtains, garage doors, awnings, bi-directional AC motors)
Device temperature protection Yes
Overload protection Yes
Power measurement Yes
FEATURES
HTTP/HTTPS webhooks Yes
Custom scripts (mJs) Yes
Operational temperature -20°C to + 40 °C
Device power consumption < 3 W
Intelligent On/Off Yes
Local and remote control Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
UL Listed option No
CONNECTIVITY
Wireless Yes
Max RF output power 13.34 dBm
Wi-Fi Protocol 802.11 b/g/n
Wi-Fi Radio frequency 2412 - 2483 MHz
Wi-Fi Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
Bluetooth Yes
Ethernet Yes
DIMENSIONS
Size 18,5mm x 89,5mm x 68,5mm
