Shelly Plus 2PM

Shelly Plus 2PM

£28.99

2 in stock

Categories: , , , Tag: Brand:

Overview

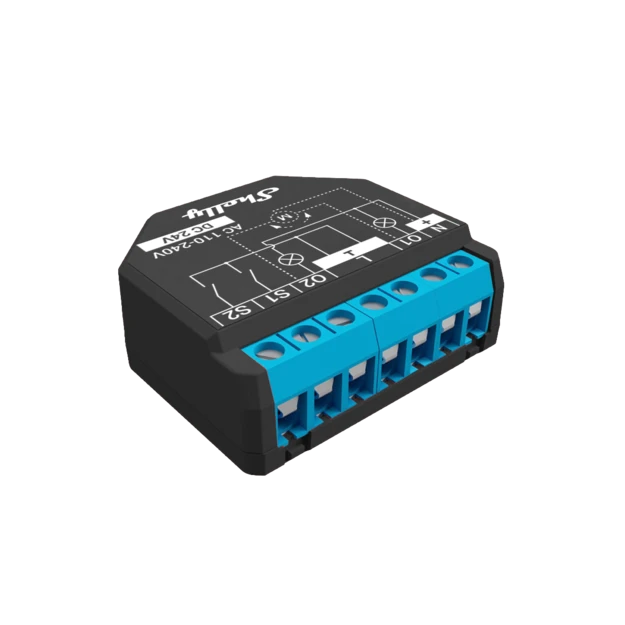

Shelly Plus 2PM is a Wi-Fi smart relay with two independent channels and precise power metering designed for advanced appliance control and motorised cover automation. It connects directly to your Wi-Fi with no hub required and supports roller shutter and bi-directional motor control with position feedback. Compact enough to fit behind standard wall switches and electrical boxes, Shelly Plus 2PM is ideal for retrofit installations, combining switching, power monitoring, and advanced automation via the Shelly app and home automation platforms.

Key features

  • Wi-Fi smart relay with no hub required
  • Two channels on the same phase with individual power metering
  • Supports up to 16A total current (18A peak)
  • Cover (roller) control with position adjustment for shutters, blinds, curtains, gates, and awnings
  • Suitable for bi-directional AC motors and motorised covers
  • Overheating and overload protection for improved safety
  • Compact design for installation behind wall switches
  • Supports schedules, scripting, webhooks, and REST API
  • Compatible with Amazon Alexa, Google Assistant, and Home Assistant

Product information

Use cases
  • Roller Shutter and Blind Automation
  • Automate and precisely control the position of roller shutters, blinds, awnings, and curtains.
  • Motorised Gate and Door Control
  • Control bi-directional motors for gates, sliding doors, and garage doors with position feedback.
  • Dual Appliance Control
  • Switch and monitor two independent electrical loads on the same phase.
  • Energy Monitoring
  • Track real-time and historical power consumption for each channel.
  • Home Automation Integration
  • Integrate switching, cover control, and energy data into advanced automations using REST API and supported platforms.
Technical specifications
Power
Power supply AC
110–240V ±10%, 50/60Hz
Power supply DC
24V ±10%
Channels and Load
Channels
2
Max. current per channel
10A
Max. total device current
16A (18A peak)
Max. switching voltage
240 VAC / 30 VDC
Special Functions
Dry contacts
No
Cover (roller) control
Yes, with position control for roller shutters, blinds, awnings, curtains, gates, shades, sliding doors, garage doors, bi-directional AC motors
Overload protection
Yes
Overtemperature protection
Yes
Power measurement
Yes
Working without a neutral line
No
Features
HTTP/HTTPS webhooks
Yes
Custom scripts (mJS)
Yes
Operational temperature
-20°C to +40°C
Device power consumption
< 1.4 W
Local and remote control
Yes
Sunrise/sunset
Yes
Weekly schedule
Yes
UL listed option
No
Connectivity
Wireless protocol
Wi-Fi 802.11 b/g/n
Wi-Fi radio frequency
2400–2500 MHz
Wi-Fi radio signal power
1 mW
Wi-Fi range
Up to 50 m outdoors and up to 30 m indoors (depending on building materials)
Dimensions
Size
42 × 38 × 17 mm
What’s included
  • Shelly Plus 2PM smart relay
