Shelly LAN Switch
£48.99
2 in stock
Overview
Shelly LAN Switch is a DIN-mountable Ethernet switch designed to provide reliable wired network expansion in electrical cabinets and structured wiring environments. With five RJ45 ports and 10/100 Mbps Ethernet support, it allows multiple devices to be connected over a stable LAN connection without additional power adapters.
The unit is powered directly from 110–230 V AC, making it suitable for permanent DIN-rail installations alongside other control and automation hardware. Status LED indicators provide at-a-glance visibility of power and network activity. Shelly LAN Switch is a non-managed network switch intended purely for Ethernet distribution and does not provide routing, PoE, or smart switching functions.
Key features
- DIN-rail mountable Ethernet switch
- Five RJ45 Ethernet ports
- 10/100 Mbps Fast Ethernet support
- Direct mains power input
- No external power adapter required
- LED indicators for power and link status
- Designed for control panels and cabinets
- Passive, non-managed network operation
Product information
Use cases

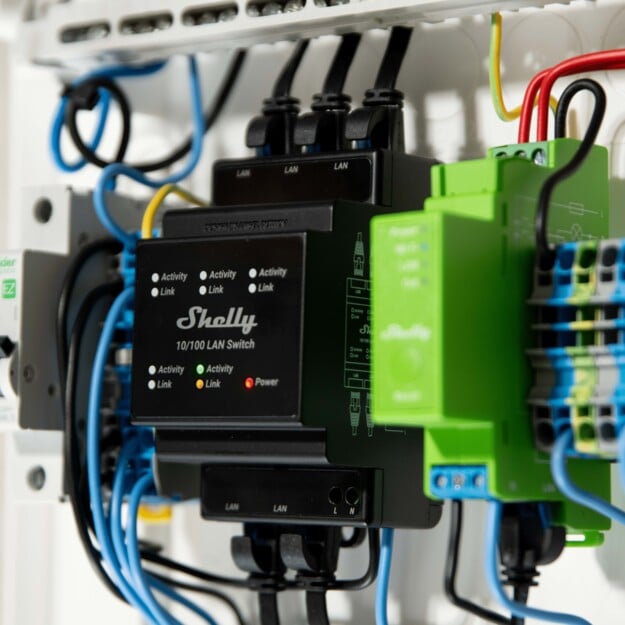

- Network expansion in control cabinets
- Add multiple wired Ethernet connections inside electrical or automation cabinets without additional adapters or power supplies.
- Reliable LAN for automation devices
- Provide stable wired connectivity for controllers, gateways, servers, or other networked devices where Wi-Fi is not preferred.
- DIN-rail structured installations
- Integrate cleanly into DIN-rail systems alongside relays, servers, and power supplies for organised infrastructure builds.
Technical specifications
Power
Power supply
110–240 V AC, 50/60 Hz
Power consumption
< 1 W
Networking
Ethernet ports
5 × RJ45
Ethernet speed
10/100 Mbps
Switch type
Unmanaged
Indicators
LED indicators
Power, link/activity
Physical and Environmental
Mounting
DIN-rail
Dimensions
96 × 53 × 59 mm
Weight
~87 g
Shell material
Plastic
Operating temperature
−20 °C to +40 °C
Humidity
30 % to 70 % RH
Maximum altitude
Up to 2000 m
What’s included

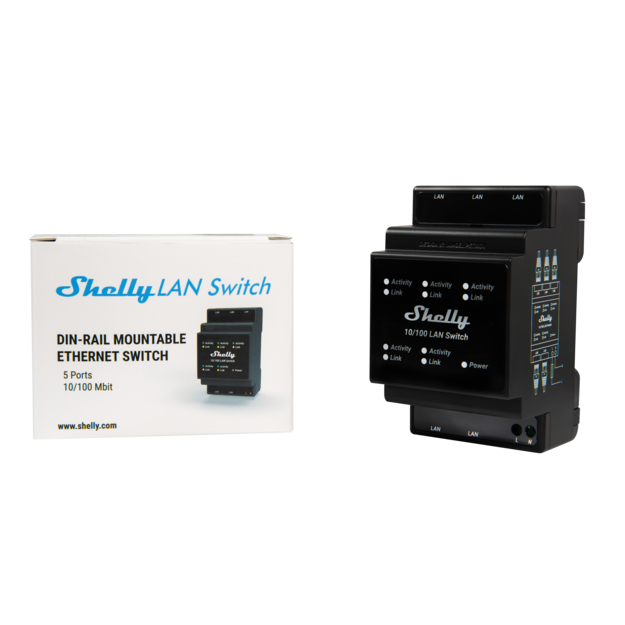

- Shelly LAN Switch
- DIN-rail mounting clip
- Quick start documentation
