Shelly TRV & Gateway Gen3
Shelly TRV & Gateway Gen3 - Image 2
Shelly TRV & Gateway Gen3 - Image 3

Shelly TRV & Gateway Gen3

£45.99

10 in stock

Categories: , , Brand:

Overview

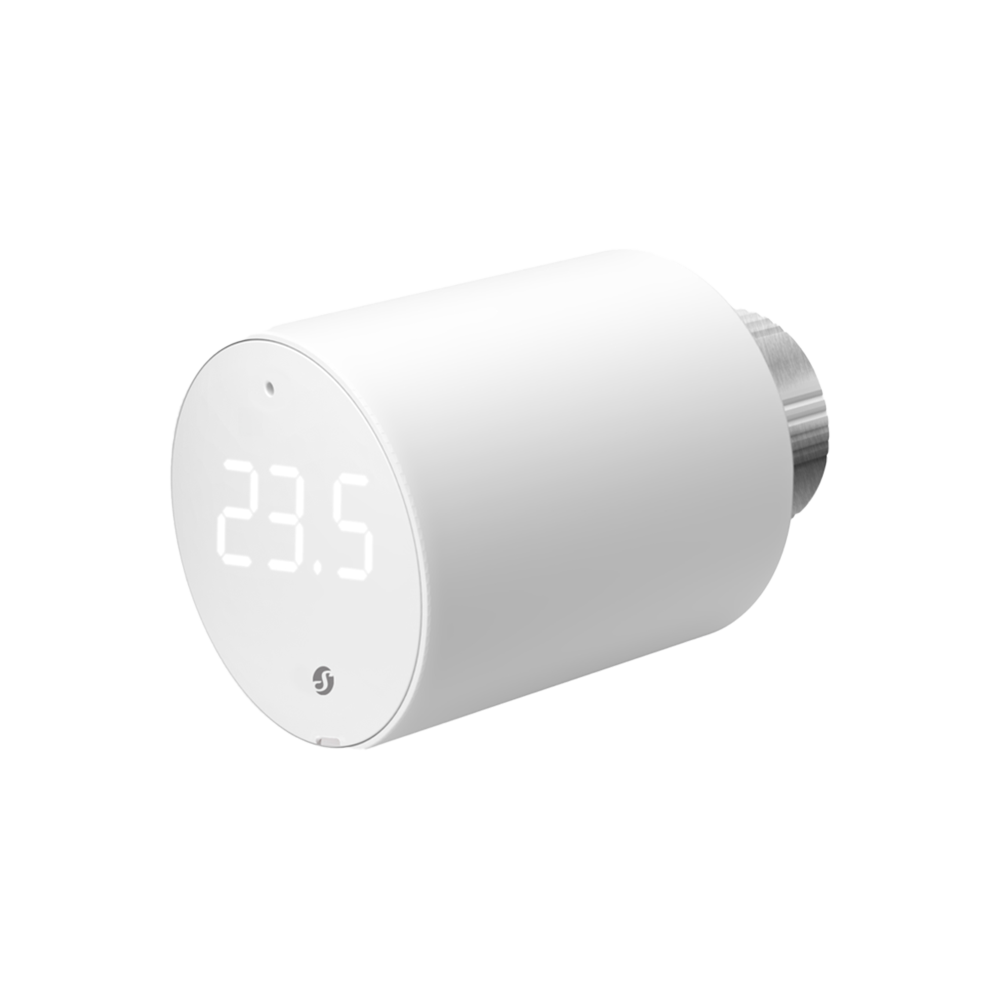

Shelly BLU TRV is a smart thermostatic radiator valve designed for precise and responsive room temperature control. It supports Bluetooth and Zigbee connectivity, allowing local operation, smart scheduling, and integration into Shelly and Zigbee-based heating systems. Temperature adjustments are handled with ±0.1 °C precision, using either the rotary dial or automations.

This bundle includes the Shelly BLU Gateway Gen3, enabling Wi-Fi connectivity for remote control, cloud access, and integration with platforms such as Home Assistant. The TRV supports smart schedules, boost mode for rapid heating, and can work with Shelly BLU H&T and door/window sensors for improved comfort and energy efficiency.

Key features

  • Smart thermostatic radiator valve with Bluetooth and Zigbee
  • Includes Shelly BLU Gateway Gen3 for Wi-Fi connectivity
  • Manual control via rotary dial with digital display
  • Temperature adjustment precision of ±0.1 °C
  • Boost mode for rapid heating
  • Rotatable display for flexible installation
  • Smart scheduling with daily programs
  • Supports external Shelly BLU temperature and door/window sensors

Product information

Use cases
  • Shelly BLU TRV
  • Shelly BLU Gateway Gen3
  • Quick start documentation
Technical specifications
Thermostat and Control
Temperature adjustment precision
±0.1 °C
Boost mode
Yes
Manual control
Rotary dial with digital display
Display
Rotatable digital screen
Connectivity
TRV connectivity
Bluetooth 4.2, Zigbee 3.0
Gateway connectivity
Wi-Fi 2.4 GHz
Wi-Fi frequency
2412–2472 MHz
Wi-Fi range
Up to 50 m outdoors / 30 m indoors
Bluetooth range
Up to 30 m outdoors / 10 m indoors
Power
TRV battery
2 × AA 1.5 V (included)
Battery life
Up to 2 years
Gateway power supply
5 V DC via USB Type-A
Gateway power consumption
< 1 W typical, up to 5 W peak
Mechanical
Valve mounting
M30 × 1.5
Material
Nickel-plated brass ring
Environment
Operating temperature
−20 °C to +60 °C
Operating humidity
25–80% RH
What’s included
  • Room-by-room heating control
  • Independently control radiator temperature per room with precise adjustment and scheduling.
  • Smart heating schedules
  • Create daily heating programs to match occupancy patterns and reduce energy usage.
  • Remote heating management
  • Control and monitor radiator temperature remotely via Wi-Fi using the included gateway.
  • Sensor-assisted temperature control
  • Improve comfort and efficiency by pairing with Shelly BLU H&T or door/window sensors.
