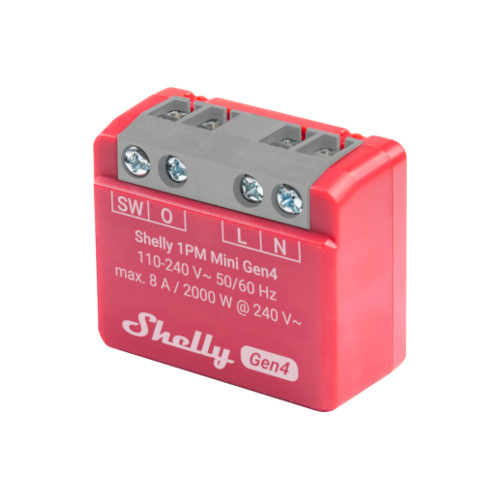

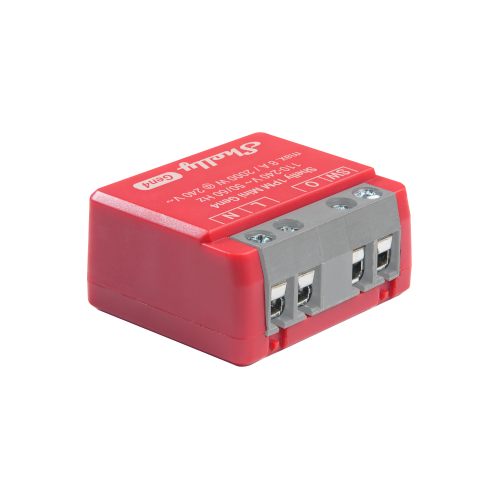

Shelly 1PM Mini Gen4

Overview

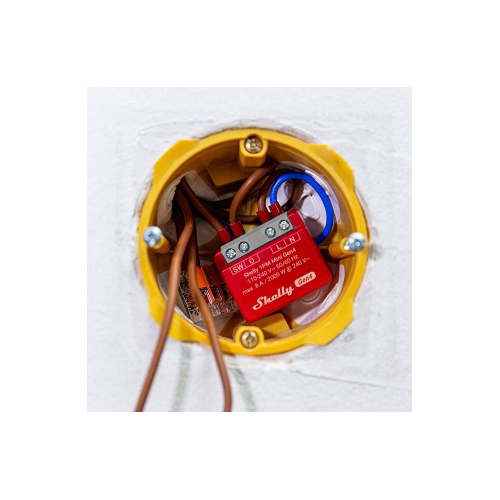

The Shelly 1PM Mini Gen4 is an ultra-compact smart relay with integrated power monitoring, designed for controlling lights and small electrical appliances where space is limited. With an 8A switching capacity and precise real-time energy monitoring, it is ideal for retrofitting behind wall switches or sockets without altering existing wiring layouts.

As part of the Shelly Gen4 range, the 1PM Mini Gen4 introduces multi-protocol connectivity, allowing you to choose between Wi-Fi, Zigbee, Bluetooth, or Matter, depending on your smart home setup. The upgraded processor delivers faster response times and smoother automation performance, while maintaining the same small form factor that makes the Mini series so popular.

The device operates without a hub when using Wi-Fi or Matter and integrates seamlessly with the Shelly Smart Control app, Home Assistant, Apple Home (via Matter), and other automation platforms. Built-in power metering allows you to track consumption, optimise energy usage, and create automations based on real usage data.

Features

• 1-channel smart relay with power monitoring
• Supports loads up to 8A at 240V AC

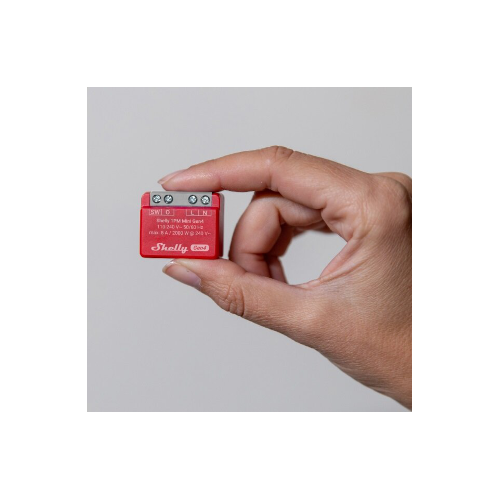

• Ultra-compact design – ideal for tight wall boxes and sockets
• Multi-protocol connectivity: Wi-Fi, Zigbee, Bluetooth, and Matter
• Matter-certified for broad ecosystem compatibility
• Works with Apple HomeKit via Matter
• Real-time power metering with cloud data storage
• New ESP-Shelly-C68F processor with 8MB memory
• Wi-Fi 6 support for improved network performance
• Acts as a Wi-Fi and Zigbee extender and Bluetooth gateway
• Supports schedules, scenes, and local automations
• Advanced scripting support (mJS)
• No hub required when using Wi-Fi or Matter
• Enhanced safety with voltage, current, and power protection

Specification

Power
Power supply: 110–240V ±10% AC, 50/60Hz
Max switching voltage (AC): 240V
Max switching current (AC): 8A
Max switching power (AC): 2000W
Power consumption: < 1.2W
External protection: 10A, tripping characteristic B or C, 6kA interrupting rating, energy limiting class 3

Features
Power measurement: Yes
Voltage protection / cutoff: Yes
Current protection / cutoff: Yes
Max power protection / cutoff: Yes
Internal temperature sensor: Yes
Ambient temperature: -20°C to 40°C / -5°F to 105°F
Humidity: 30% to 70% RH
Schedules: 20
Webhooks: 20 with 5 URLs per hook
MQTT: Yes
UDP: Yes
Scripting: Yes

Connectivity
Wi-Fi protocol: 802.11 b/g/n/ax (2.4 GHz)
Wi-Fi range: up to 50m outdoors / 30m indoors (depending on construction)
Zigbee protocol: 802.15.4
Zigbee repeater: Yes
Zigbee range: up to 300m outdoors / 100m indoors (depending on construction)
Bluetooth protocol: 4.2
Bluetooth range: up to 30m outdoors / 10m indoors

Dimensions
(H × W × L): 29 × 35 × 16 mm ±0.5 mm
(1.11 × 1.35 × 0.63 in ±0.02 in)

In the Box

1× Shelly 1PM Mini Gen4
User documentation
