Name: SenseCAP Indicator D1- 4-Inch Touch Screen IoT development platform
Brand: Seeed Studio
Price: 47.99 GBP
Availability: InStock

SenseCAP Indicator D1- 4-Inch Touch Screen IoT development platform

Save 13%

£54.99

£54.99 - £54.99

£54.99

£47.99

£47.99 - £47.99

£47.99

Availability:

in stock, ready to be shipped

Quantity

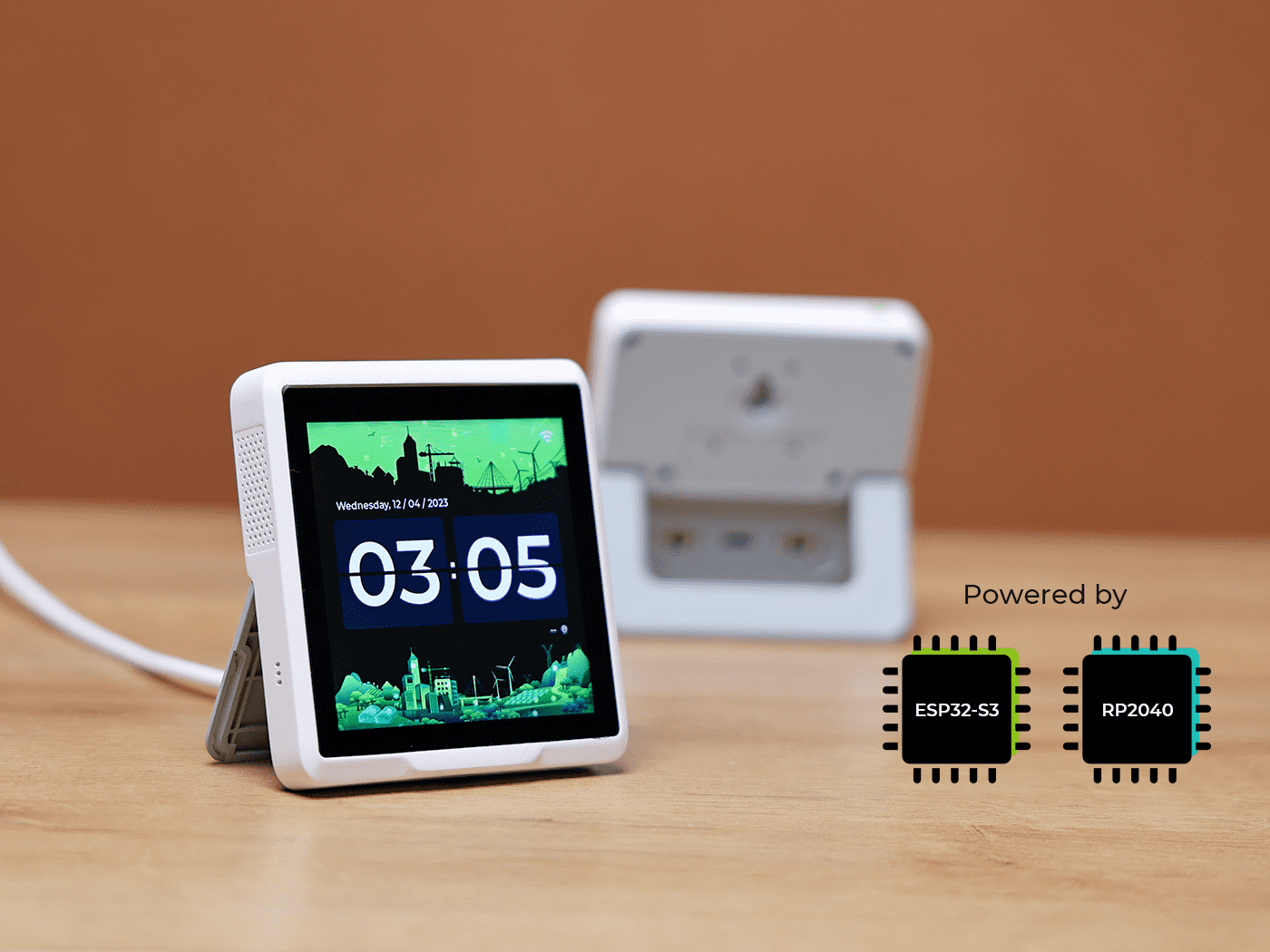

SenseCAP Indicator D1 is a 4-inch capacitive touch screen IoT development platform powered by dual MCUs (ESP32-S3 + RP2040), designed for local dashboards, sensor hubs, and smart-home integrations. With Wi-Fi, Bluetooth LE, and optional LoRa®, rich Grove/GPIO expansion, and fully open-source firmware, it enables rapid prototyping and production-ready IoT applications. Built-in air-quality sensors (CO₂, TVOC) support out-of-the-box monitoring, while the platform’s openness allows deep customisation and integration with ecosystems like Home Assistant, Matter, Node-RED, AWS, and more.

Key Features

Dual-MCU architecture: ESP32-S3 + RP2040 for UI and real-time control
3.95-inch capacitive RGB touch display (480 × 480)
Wi-Fi 2.4 GHz and Bluetooth 5.0 LE connectivity
Optional LoRa® (SX1262) for local LoRa hubs and long-range devices
Built-in CO₂ (SCD41) and TVOC (SGP40) sensors
External Grove temperature & humidity sensor support (AHT20)
Rich GPIO and Grove interfaces for easy peripheral expansion
USB-C power and data; Micro SD support up to 32 GB (not included)
Fully open-source firmware and SDKs across ESP32 and Raspberry Pi ecosystems

Use Cases

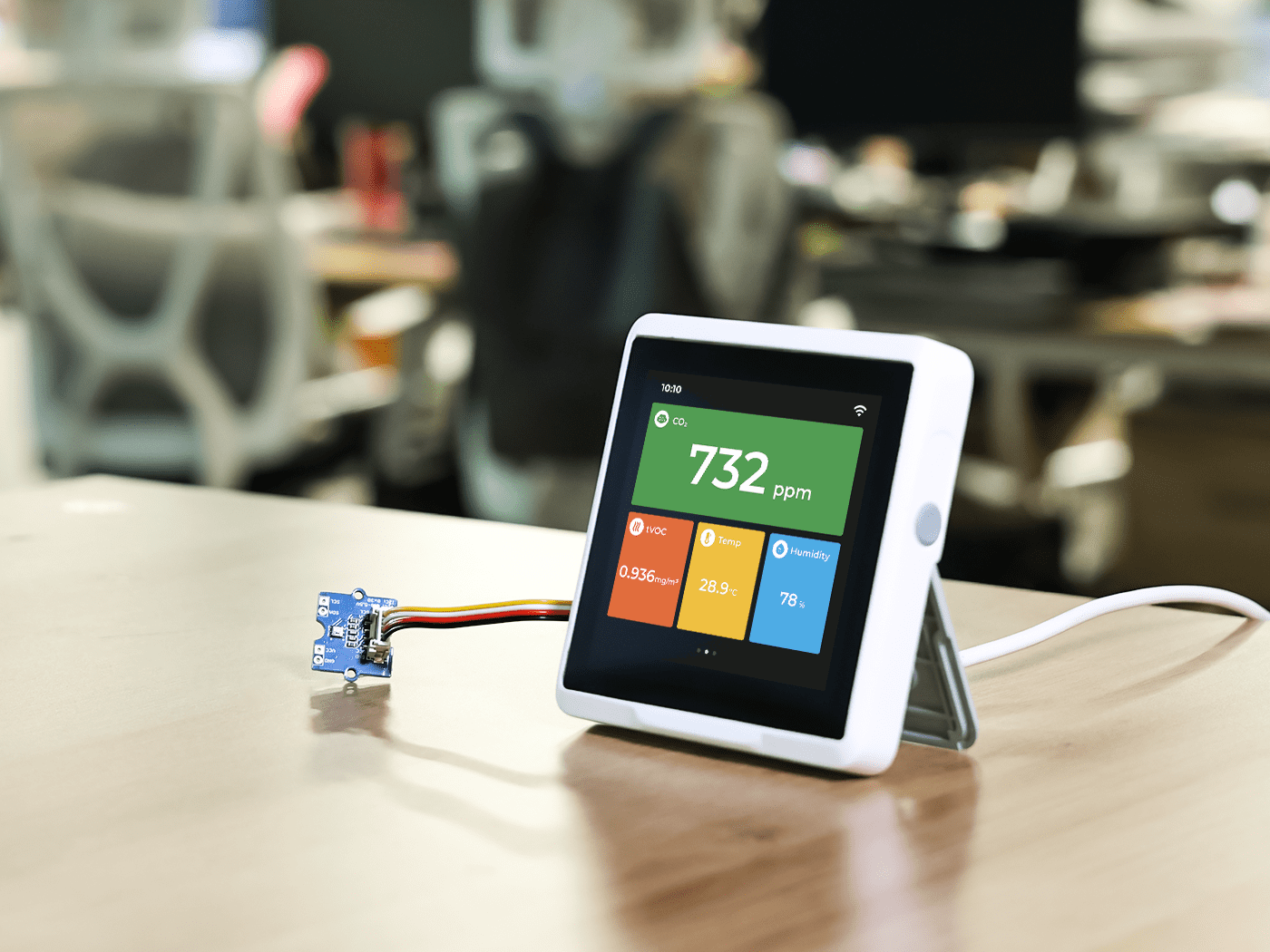

Air Quality Monitor

Use the built-in CO₂ and TVOC sensors to create a desktop or wall-mounted air-quality display.

Smart Home Dashboard

Build a local control panel for Home Assistant, Matter, or Node-RED with touch interaction.

IoT Sensor Hub

Aggregate local sensors via Grove/GPIO and forward data over Wi-Fi or LoRa®.

Developer Prototyping Platform

Rapidly prototype UI-driven IoT applications using open-source tools and libraries.

Data Display & Information Panels

Create weather stations, stock tickers, SOP reminders, or digital photo frames.

What’s Included

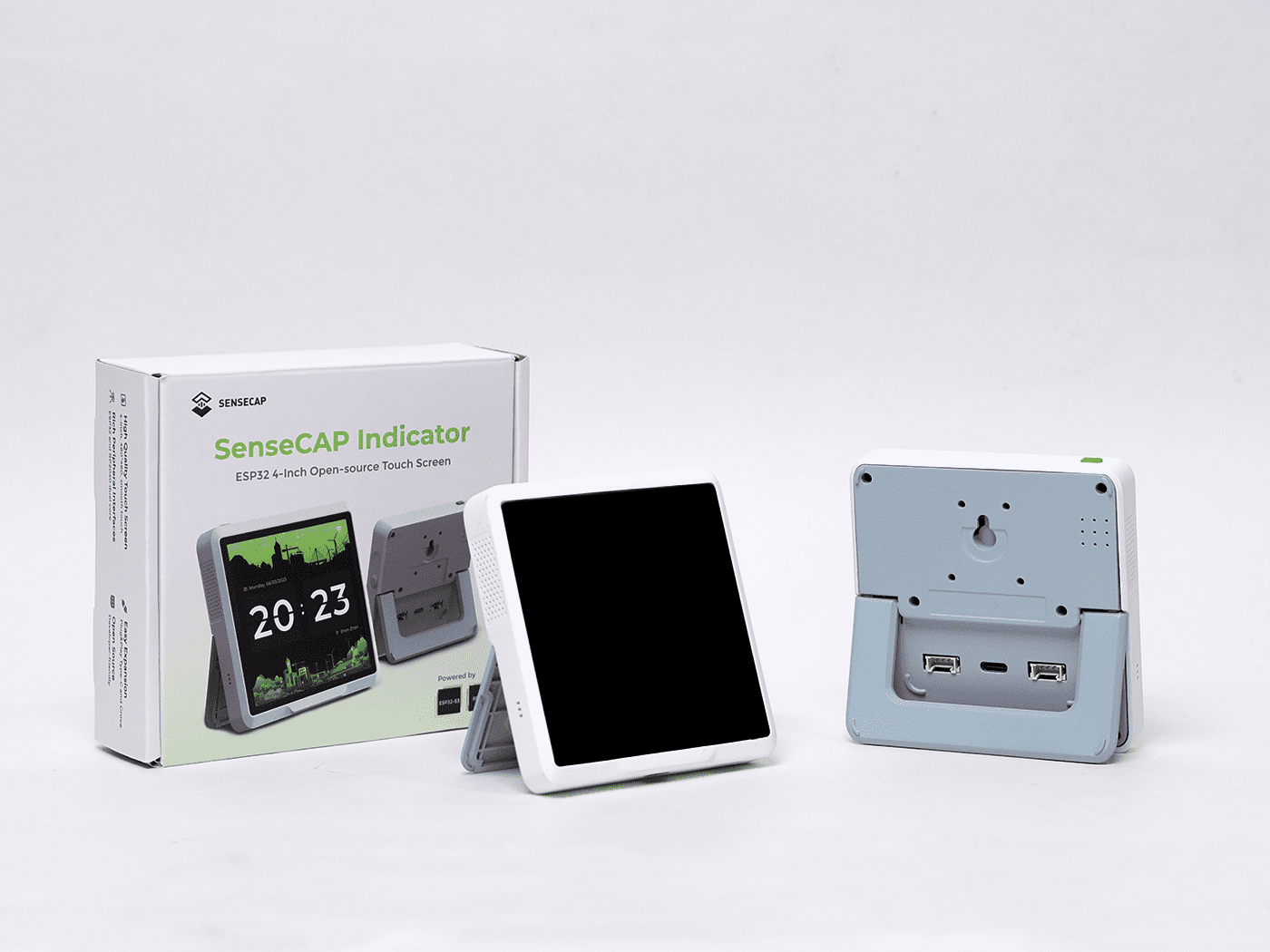

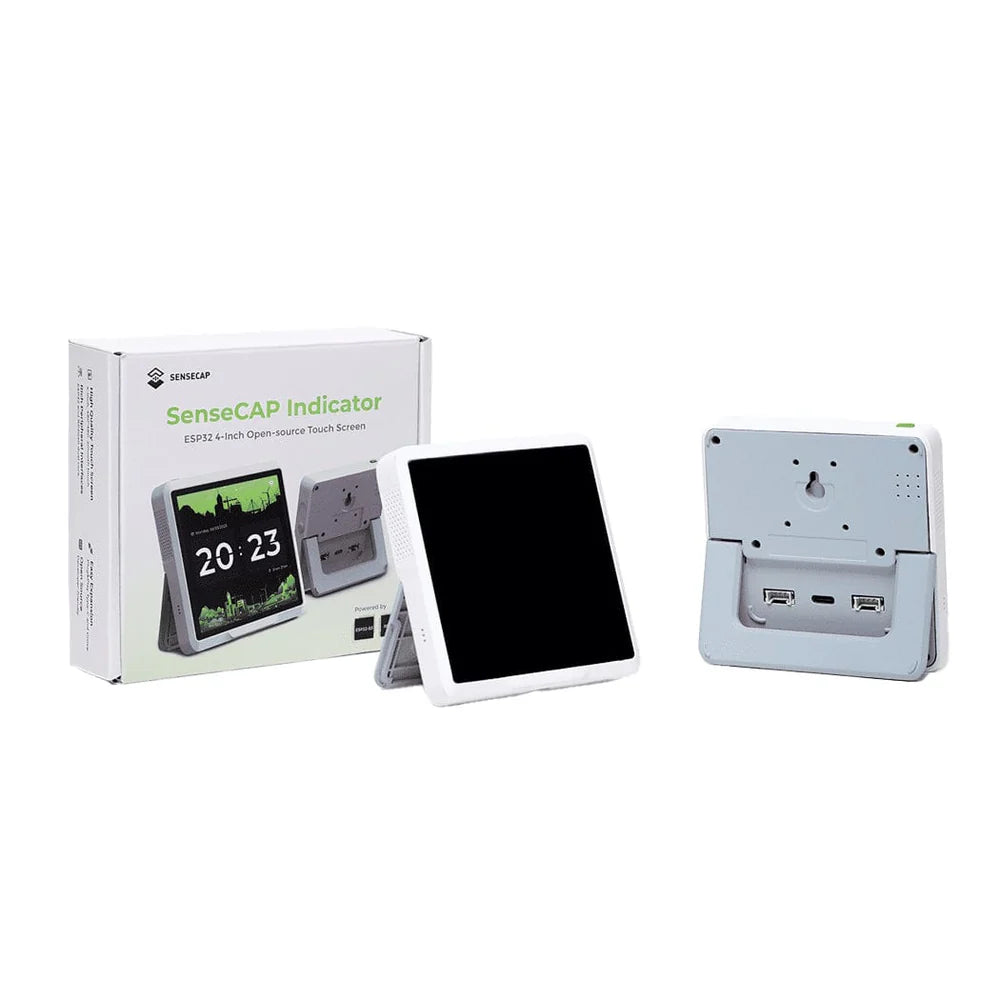

SenseCAP Indicator D1 device

Technical Specifications

Display

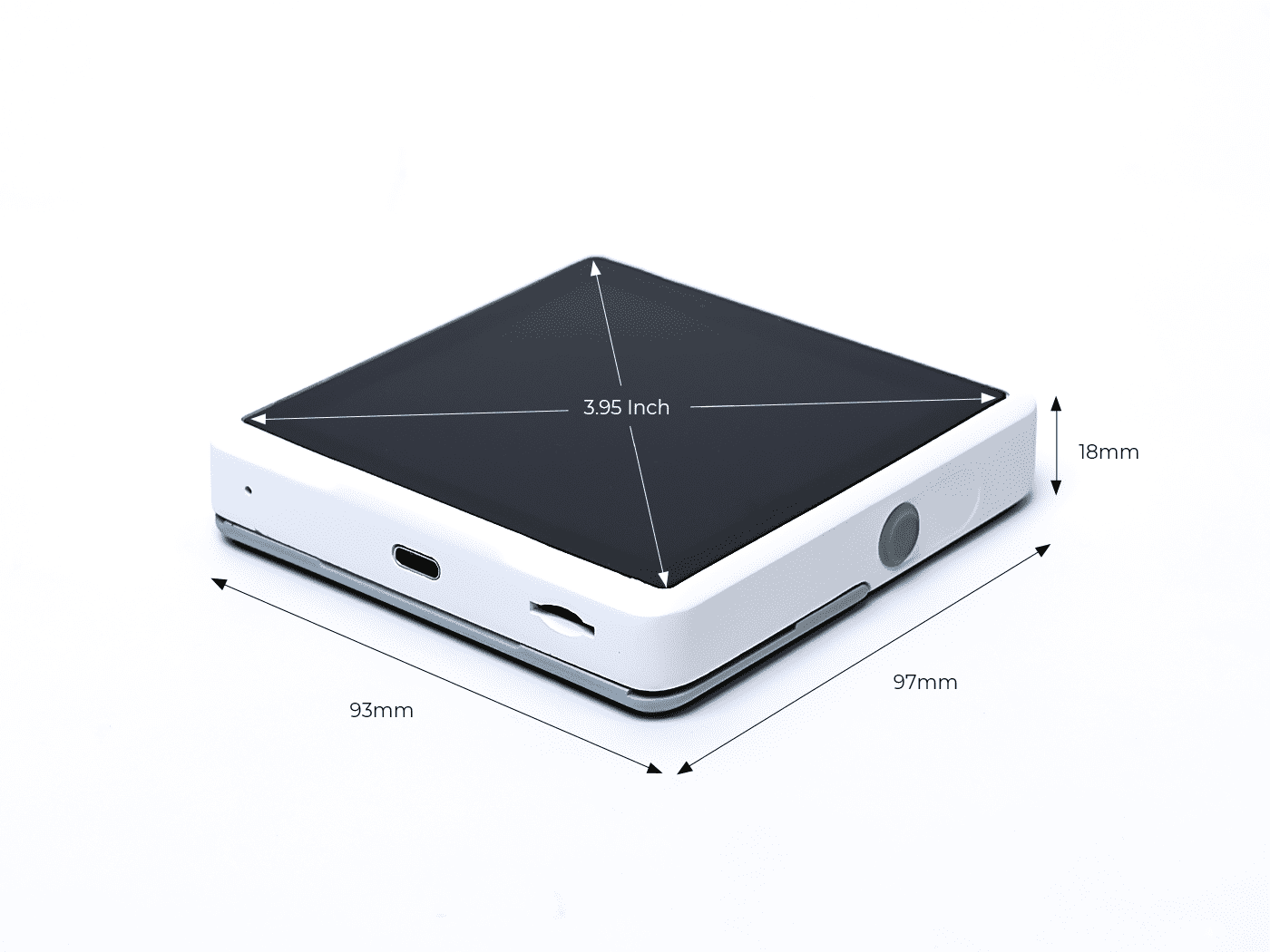

Screen: 3.95-inch capacitive RGB touch

Resolution: 480 × 480 pixels

Power

Power supply: 5 V DC, 1 A

Battery: N/A

Processing

ESP32-S3: Dual-core Xtensa® LX7, up to 240 MHz

RP2040: Dual ARM Cortex-M0+, up to 133 MHz

Memory

Flash (ESP32-S3): 8 MB

Flash (RP2040): 2 MB

External storage: Micro SD up to 32 GB (not included)

Connectivity

Wi-Fi: 802.11 b/g/n (2.4 GHz)

Bluetooth: Bluetooth 5.0 LE

LoRa® (optional): SX1262, up to 21 dBm TX, up to ~5 km (environment dependent)

Sensors

CO₂ (SCD41): 0–40,000 ppm, ±(50 ppm + 5% of reading)

TVOC (SGP40): 1–500 VOC index points

External temp & humidity (AHT20): −40 to +85 °C (±0.3 °C), 0–100% RH (±2% RH)

Audio

Buzzer: MLT-8530, 2700 Hz
