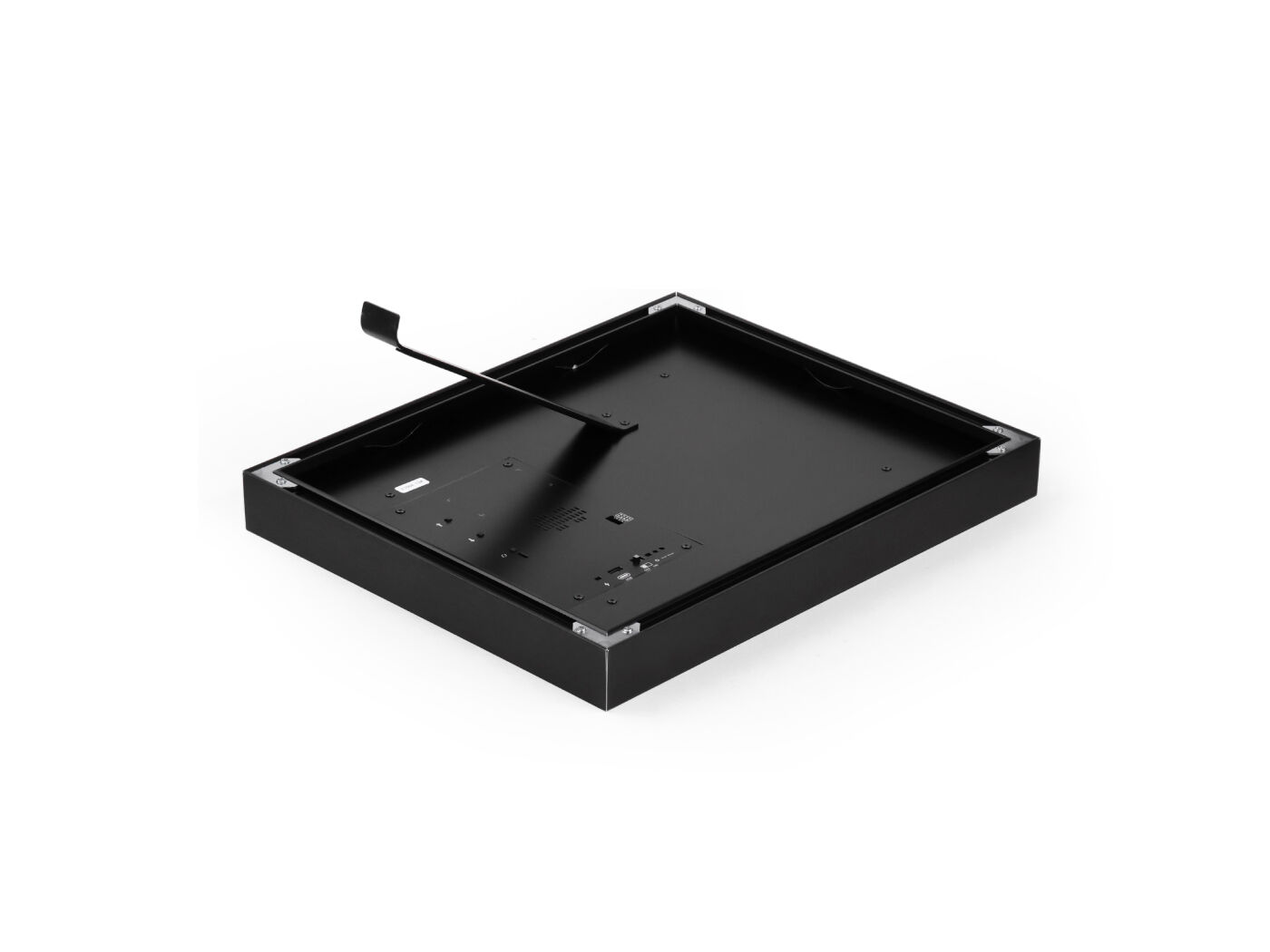

reTerminal E1004 13.3" ePaper Touch Display (ESP32-S3) - Image 6
reTerminal E1004 13.3" ePaper Touch Display (ESP32-S3) - Image 7
reTerminal E1004 13.3" ePaper Touch Display (ESP32-S3) - Image 8
reTerminal E1004 13.3" ePaper Touch Display (ESP32-S3) - Image 9

reTerminal E1004 13.3″ ePaper Touch Display (ESP32-S3)

£299.99

3 in stock

Category: Brand:

Overview

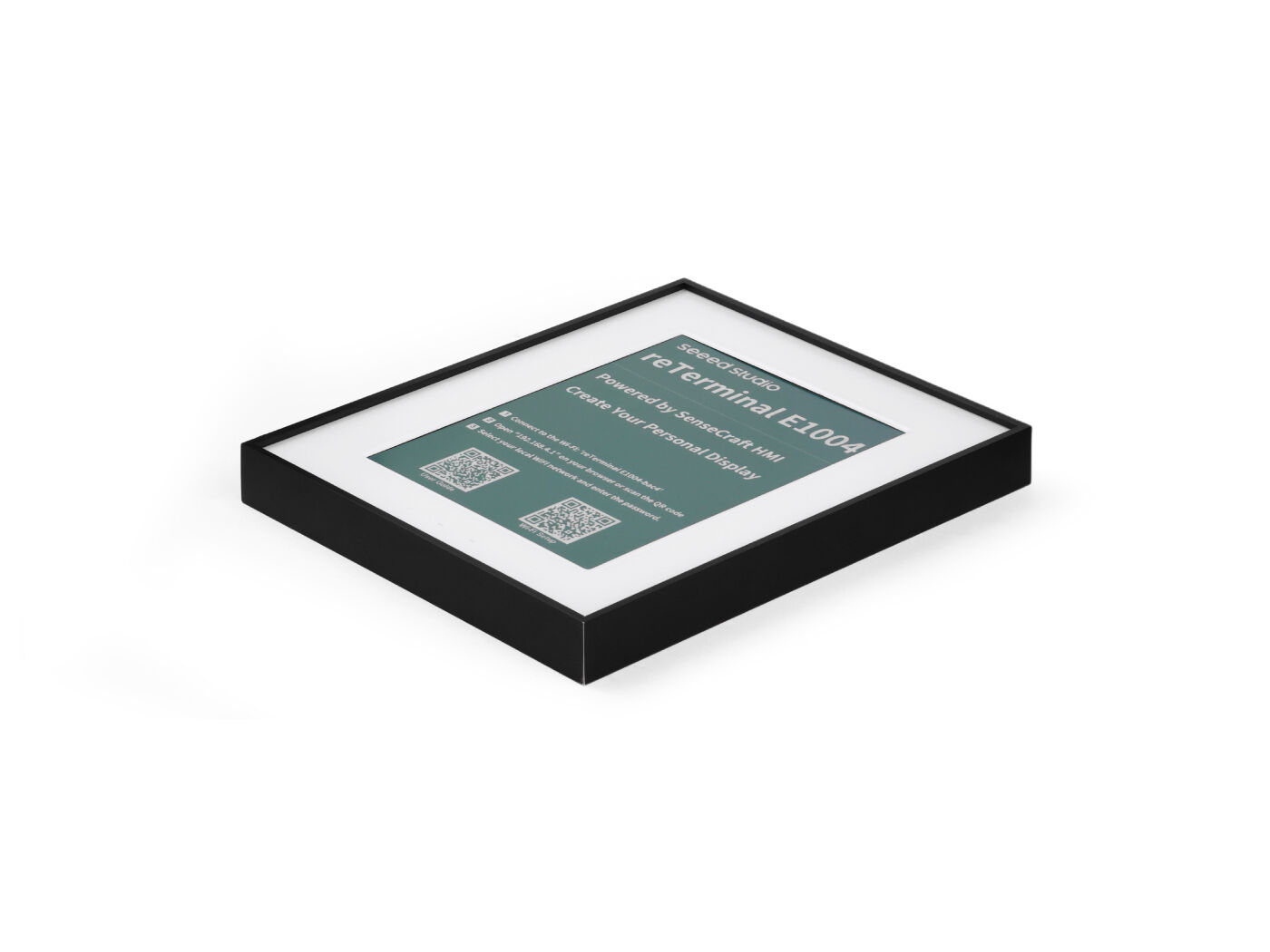

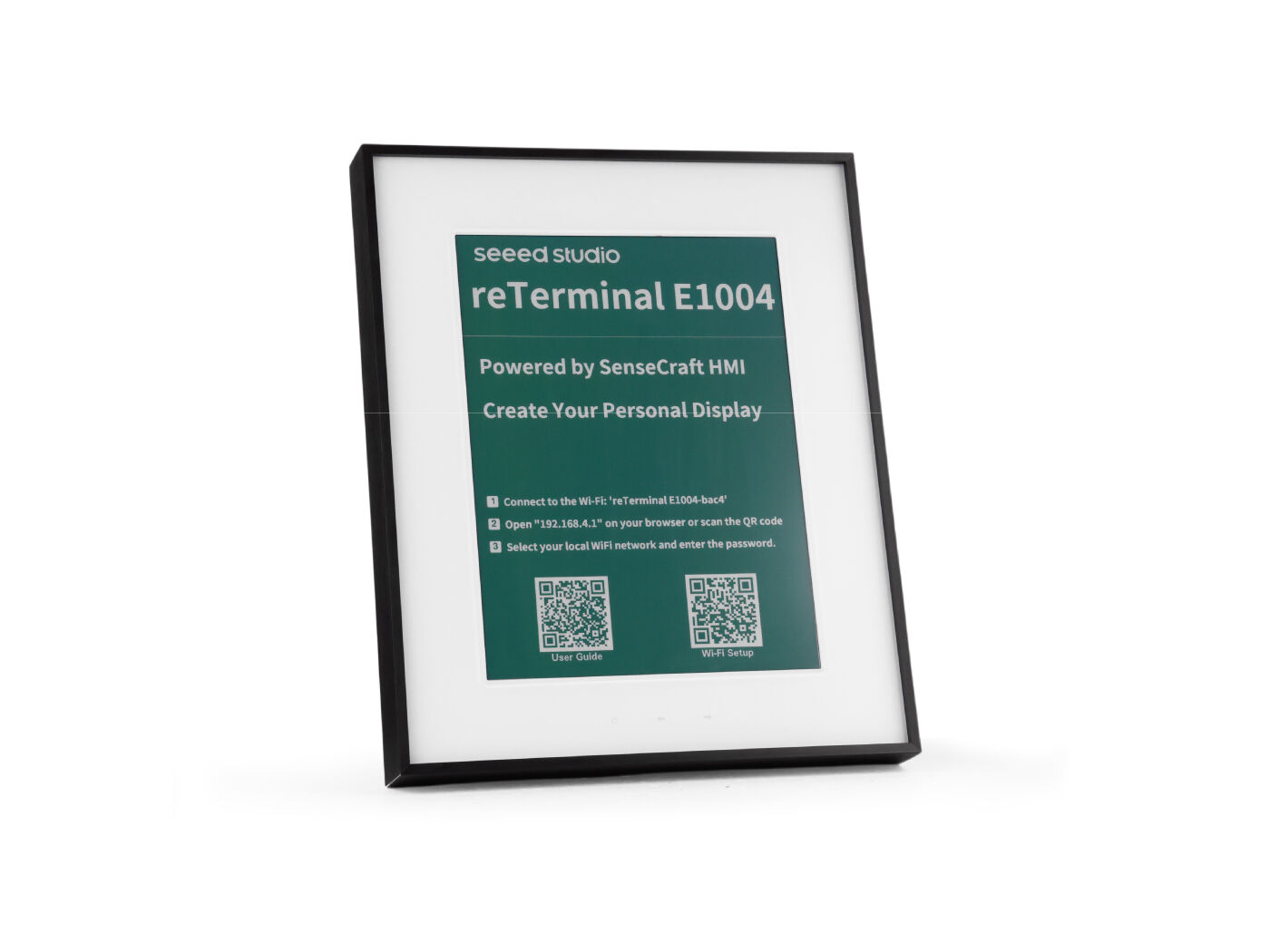

Large-format 13.3″ full-colour ePaper display powered by the ESP32-S3, designed for low-power dashboards, digital signage, photo displays and information panels. Its 1200 × 1600 E Ink Spectra 6 screen provides crisp text and paper-like colour visuals without requiring continuous display power.

The reTerminal E1004 includes Wi-Fi, Bluetooth, onboard environmental sensors, a 5000mAh battery and native support for the SenseCraft HMI no-code platform. It can be used on a desk or mounted to a wall, with battery life of up to six months in low-power configurations.

Key features

  • 13.3" E Ink Spectra 6 full-colour ePaper display
  • 1200 × 1600 resolution
  • Paper-like display with wide viewing angles
  • ESP32-S3 processor with 8MB PSRAM
  • 32MB onboard flash storage
  • Included 16GB MicroSD card
  • MicroSD expansion support up to 32GB
  • 2.4GHz Wi-Fi and Bluetooth 5.0
  • Native support for the SenseCraft HMI platform
  • AI-assisted and drag-and-drop dashboard creation
  • Built-in temperature and humidity sensors
  • Integrated buzzer for audible alerts

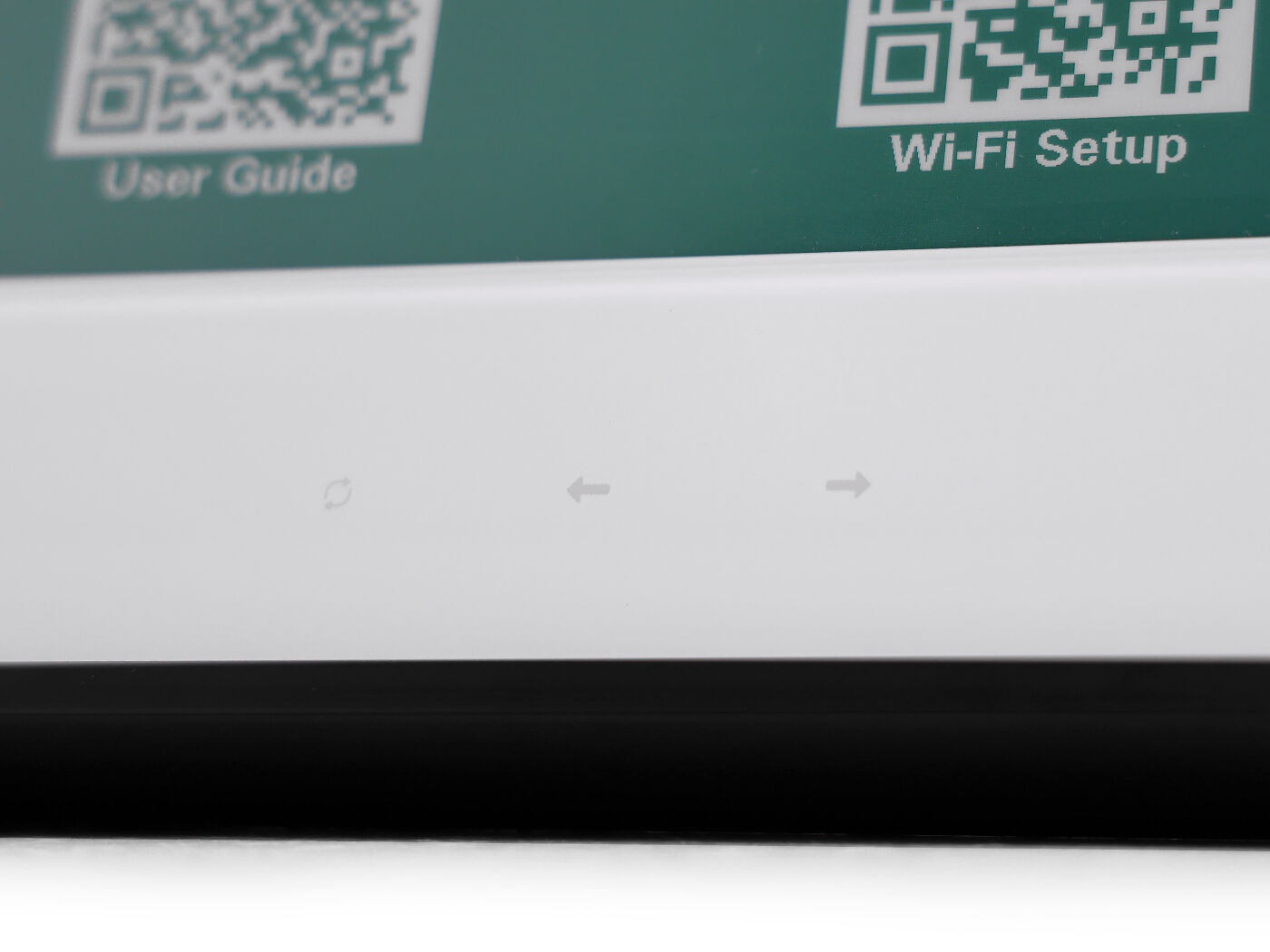

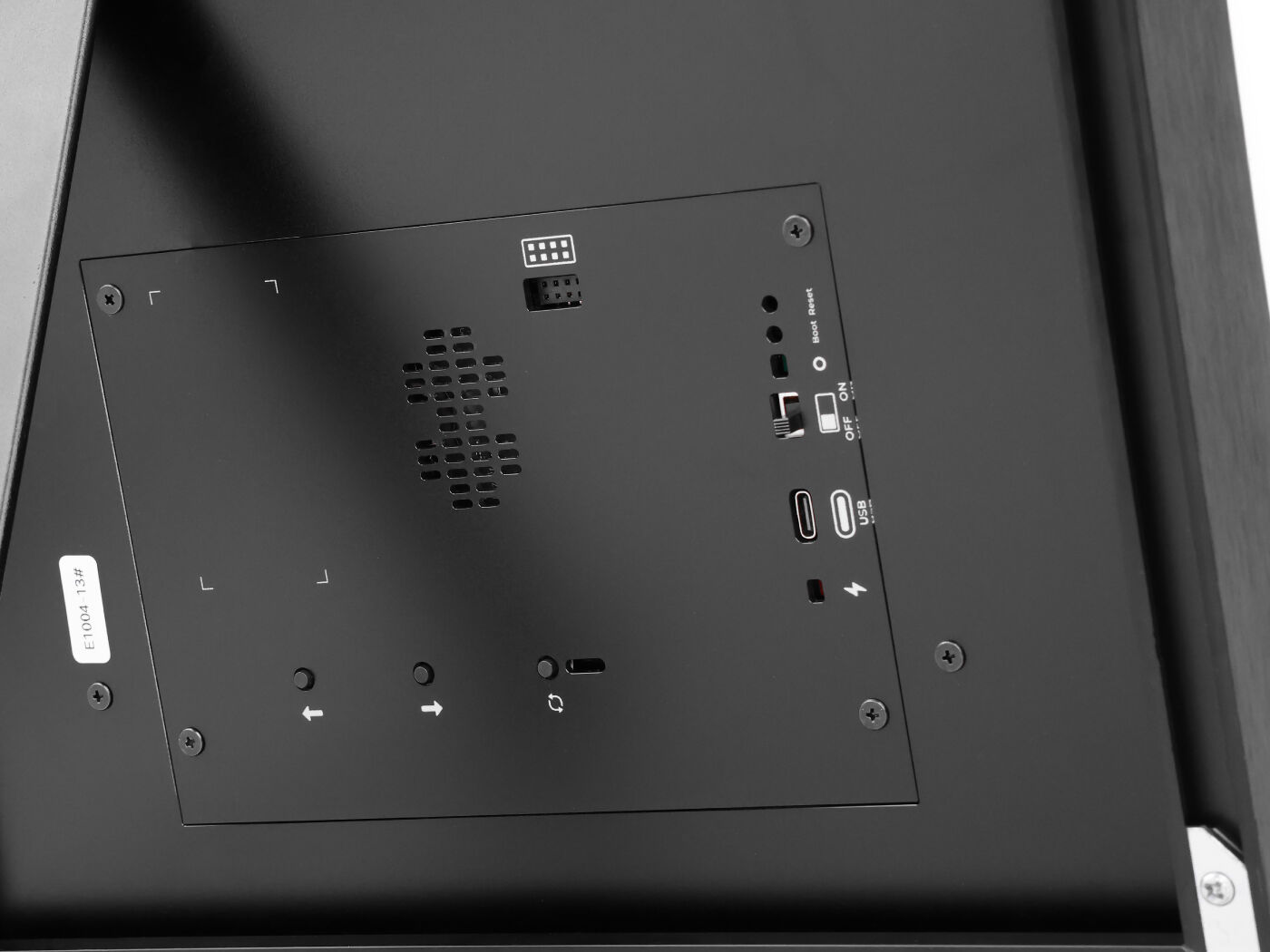

  • Physical touch controls for image refresh and switching

Product information

Use cases
  • Smart home information board
  • Display household calendars, weather information, reminders, notifications and smart home status information on a low-power screen that remains visible throughout the day.

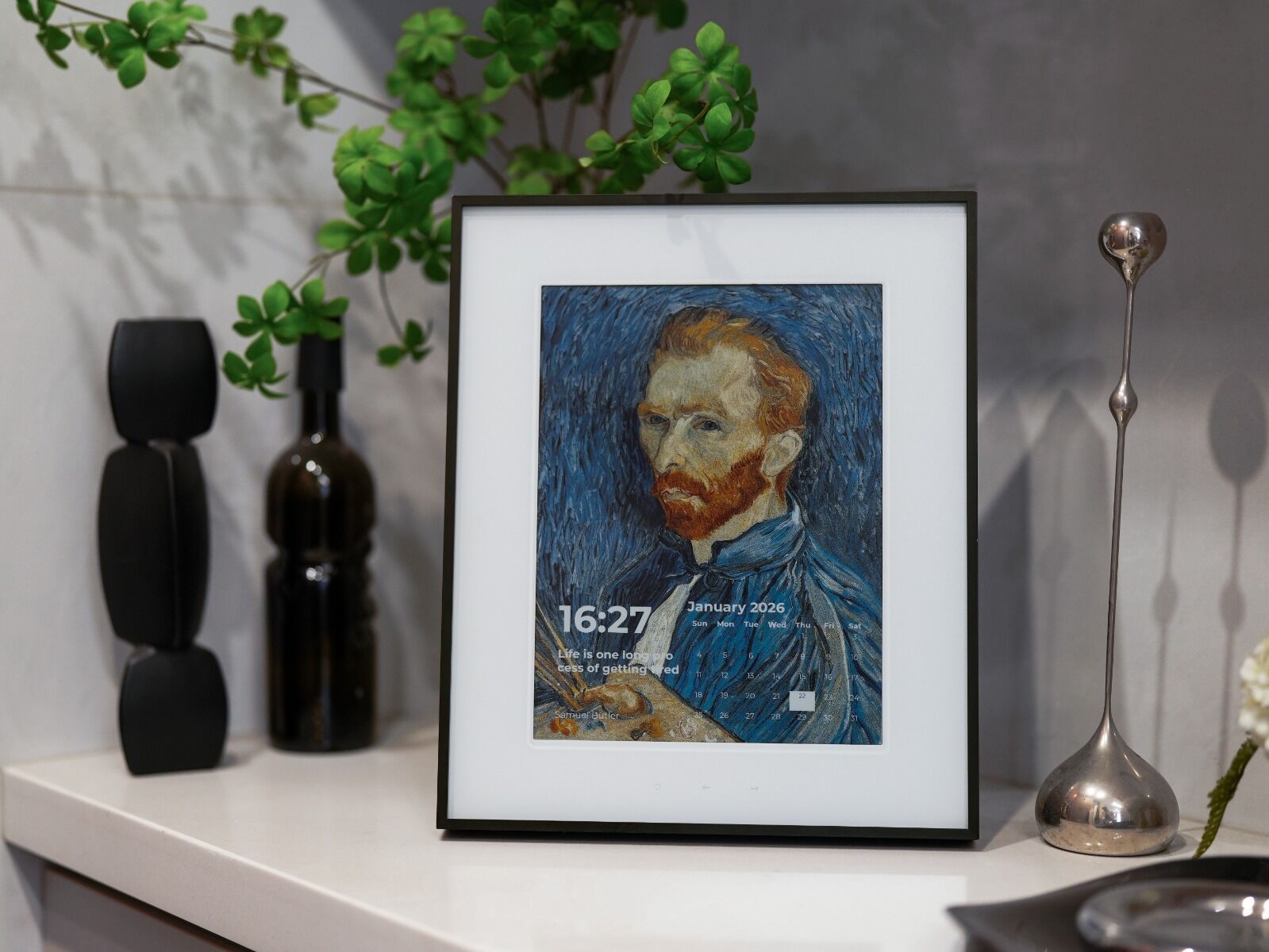

  • Digital photo frame
  • Create a cable-free electronic photo frame with remotely updated slideshows and scheduled image changes through SenseCraft HMI or compatible software.
  • Office information display
  • Show meeting-room availability, office schedules, visitor information, notices or directional guidance without using a continuously powered LCD screen.
Technical specifications
Processor
Chipset
ESP32-S3
PSRAM
8 MB
Storage
Flash
32 MB
MicroSD Support
Up to 32 GB (FAT32)
Display
Type
13.3" E Ink Spectra 6 full-colour ePaper
Resolution
1200 × 1600
Connectivity – Wi-Fi
Protocol
802.11 b/g/n (2.4 GHz)
Connectivity – Bluetooth
Protocol
Bluetooth 5.0
Sensors
Temperature Sensor
Yes
Humidity Sensor
Yes
Audio
Buzzer
Yes
Power
Battery
5000 mAh rechargeable
Battery Life
Up to 6 months in low-power mode
Input
USB-C, 5 V / 1 A
Environmental
Operating Temperature
0 °C to 40 °C
Physical

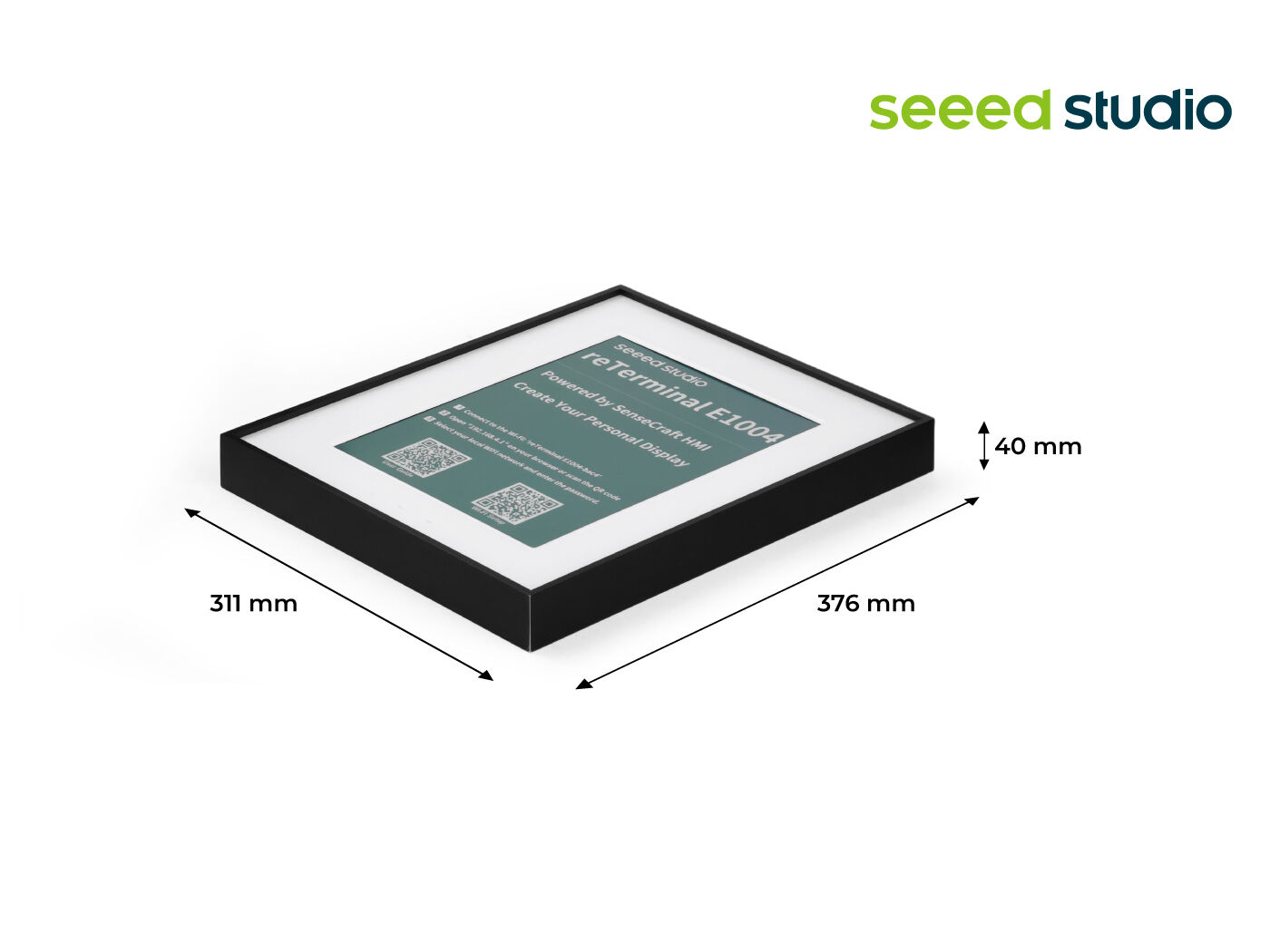

Dimensions
376 x 311 x 40 mm
What’s included
  • 1 × reTerminal E1004 full-colour ePaper display
  • 1 × USB Type-C cable

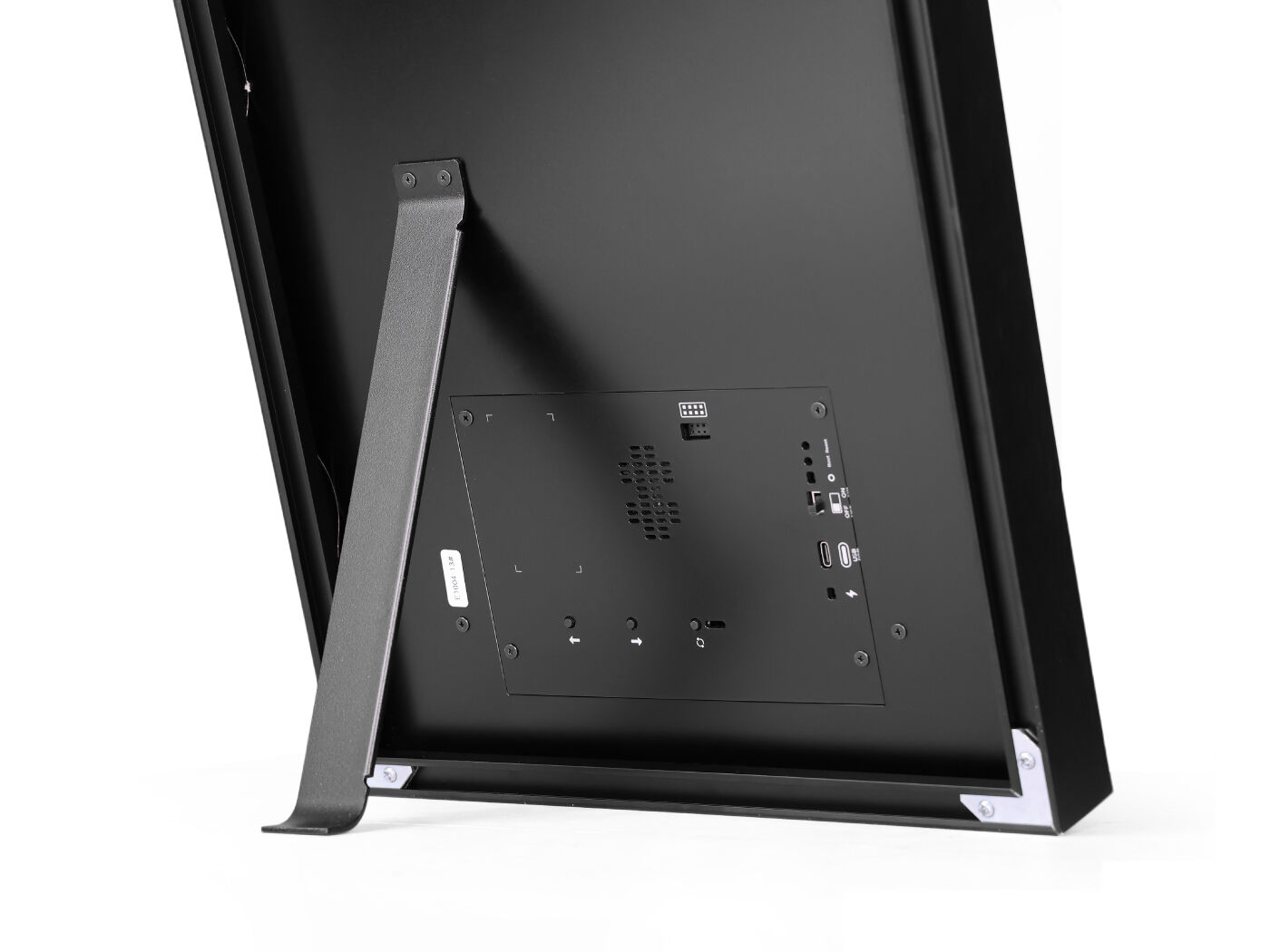

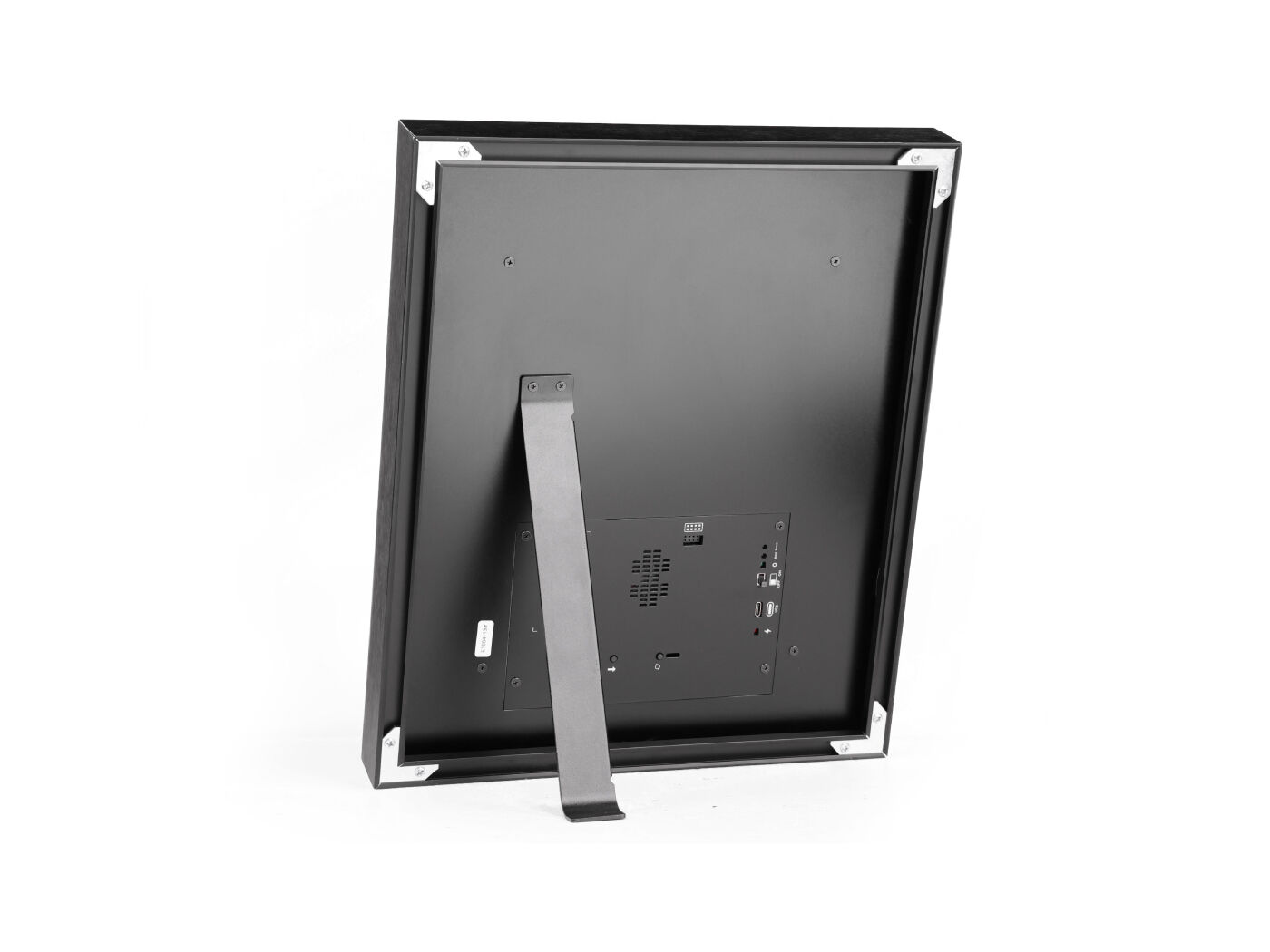

  • 1 × display stand with screw
  • 1 × screwdriver
  • 2 × frame hooks
