reTerminal E1003 10.3″ ePaper Touch Display (ESP32-S3)

£179.99

3 in stock

Categories: , , Brand:

Overview

Large-format monochrome ePaper display designed for low-power dashboards and control panels, powered by ESP32-S3. With a high-resolution 10.3″ screen and 16-level grayscale, it delivers crisp, paper-like visuals ideal for always-on information displays.

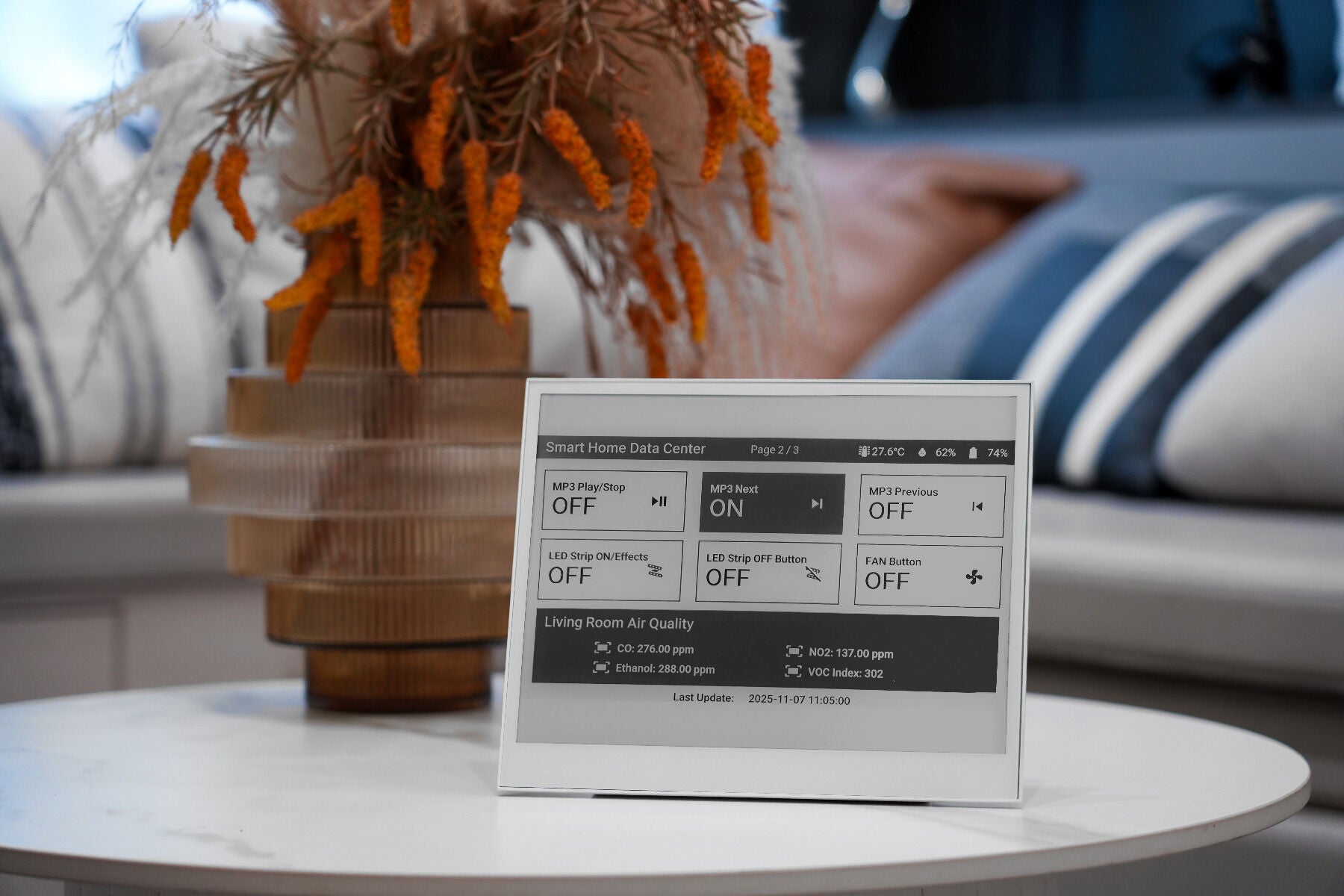

Built with touch support and native integration with SenseCraft HMI, this device enables interactive smart home dashboards, status panels, and custom UI interfaces with up to 6 months battery life on a single charge.

Key features

  • 10.3" high-resolution ePaper display (1404 × 1872)
  • 16-level grayscale for improved detail and readability
  • Fast full refresh time of ~3 seconds
  • ESP32-S3 with 8MB PSRAM for embedded processing
  • Touch support for interactive dashboards and control
  • Native support for SenseCraft HMI no-code UI platform
  • Up to 6 months battery life (low-power mode)
  • Wi-Fi and Bluetooth connectivity for IoT integration
  • MicroSD support for storage and assets
  • Ultra-low power display ideal for always-on usage
  • Clean, cable-free deployment with built-in battery
  • Expandable and customisable for OEM/DIY use

Product information

Technical specifications
Core System
Processor
ESP32-S3
RAM
8MB PSRAM
Storage
32MB Flash + MicroSD support (up to 32GB)
Display
Size
10.3"
Type
Monochrome ePaper
Resolution
1404 × 1872
Grayscale
16 levels
Touch
Supported
Connectivity
Wi-Fi
2.4GHz 802.11 b/g/n
Bluetooth
5.0
Sensors & Features
Sensors
Temperature, Humidity
Buzzer
Included
Power
Battery
3000mAh
Battery Life
Up to 6 months (low-power usage)
Input
USB-C 5V/1A
Physical

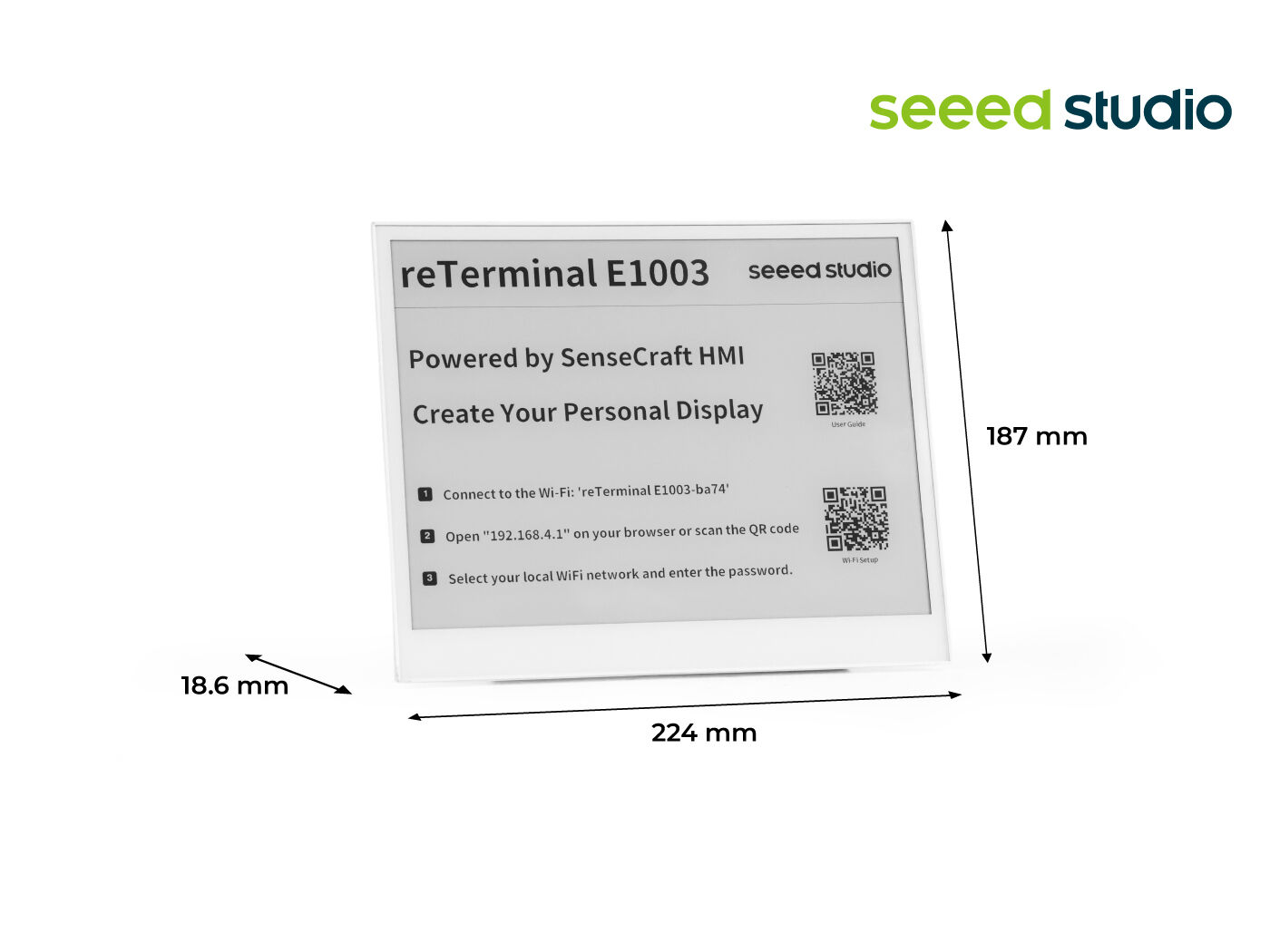

Dimensions
224 × 187 × 18.6 mm
Operating Temperature
0–40°C
What’s included
  • reTerminal E1003 ePaper Display
  • USB Type-C Cable
  • 3D Printed Stand
  • Screwdriver
  • Screw
