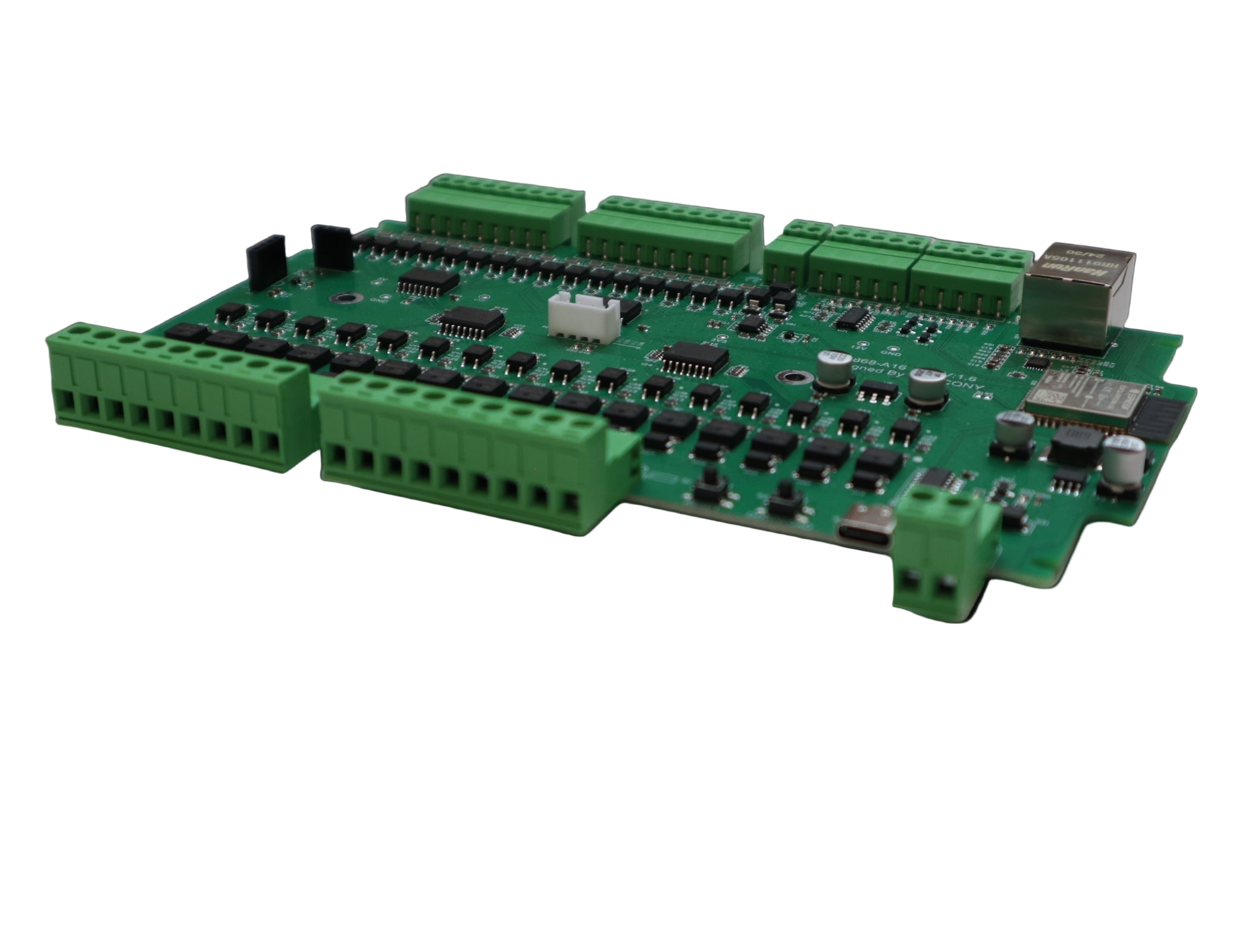

Kincony KC868-A16 Smart Controller
Kincony KC868-A16 Smart Controller - Image 2

Kincony KC868-A16 Smart Controller

£36.99

10 in stock

Categories: , , , Tags: , Brand:

Overview

Kincony KC868-A16 is an ESP32-based smart controller with Wi-Fi and Ethernet connectivity, designed for advanced DIY automation and small commercial control systems. Built around the ESP-WROOM-32 module, it provides flexible networking via Wi-Fi, Bluetooth, and wired Ethernet, making it suitable for both wireless and wired installations.

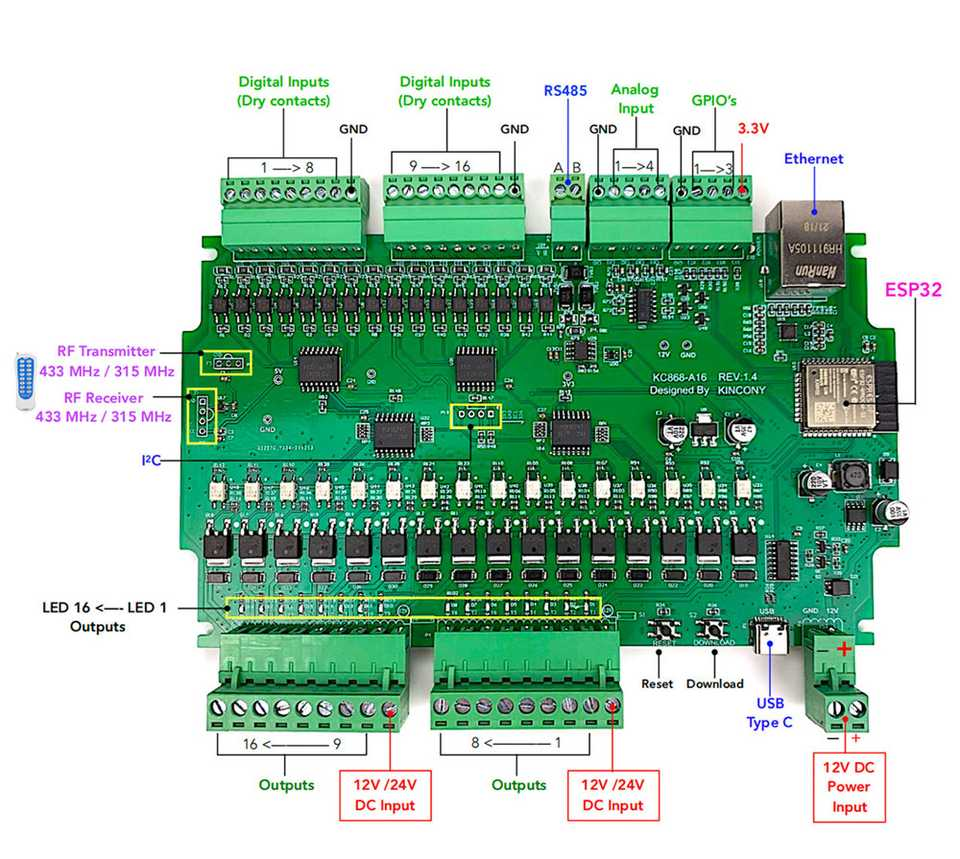

The controller features 16 MOSFET outputs, 16 optoisolated digital inputs, and multiple expansion interfaces, allowing integration with relays, sensors, actuators, and industrial communication systems. With support for RS485, 433 MHz modules, I2C expansion, and optional relay expansion via the KC868-E16 module, it is intended for complex automation projects requiring high I/O density and modularity.

Key features

  • ESP32 ESP-WROOM-32 microcontroller
  • Wi-Fi, Bluetooth, and Ethernet connectivity
  • 16 optoisolated digital inputs
  • 16 MOSFET outputs for 12/24 V loads
  • 4 analogue inputs (0–5 V)
  • RS485 interface for serial communication
  • 433 MHz wireless module support
  • I2C connector for expansion
  • USB Type-C for programming and firmware updates

Product information

Use cases
  • High I/O automation projects
  • Control multiple relays, actuators, and sensors in advanced home or light commercial automation systems.
  • Environmental and sensor monitoring
  • Connect temperature, humidity, and analogue sensors for data collection and control logic.
  • Industrial and serial communication
  • Integrate with RS485-based devices for building or industrial automation.
  • Lighting and irrigation control
  • Drive multiple outputs for lighting circuits, irrigation valves, or automation panels.
Technical specifications
Power
Supply voltage
12 V DC
MOSFET output voltage
12/24 V DC
Microcontroller
Module
ESP-WROOM-32
CPU
ESP32 dual-core
Wireless
Wi-Fi 802.11 b/g/n, Bluetooth 4.2
Digital Inputs
Quantity
16
Type
Optoisolated dry contact
Analogue Inputs
Quantity
4
Voltage range
0–5 V
Outputs
MOSFET outputs
16
Output type
Low-side switching for relays, contactors, actuators
Communication Interfaces
Ethernet chip
LAN8270A
RS485
Yes
433 MHz support
Yes (external module)
I2C connector
Yes
Additional GPIO
3 (3 V logic, pulled up)
Physical
Programming port
USB Type-C (CH340C serial)
Mounting
Wall or enclosure integration, DIN-rail compatible enclosure
What’s included
  • Kincony KC868-A16 controller board
