Flush Wall USB-C Power Adapter (30W)
Save 20%
Original price
£24.99
Original price
£24.99
-
Original price
£24.99
Original price
£24.99
Current price
£19.99
£19.99
-
£19.99
Current price
£19.99
Availability:
in stock, ready to be shipped

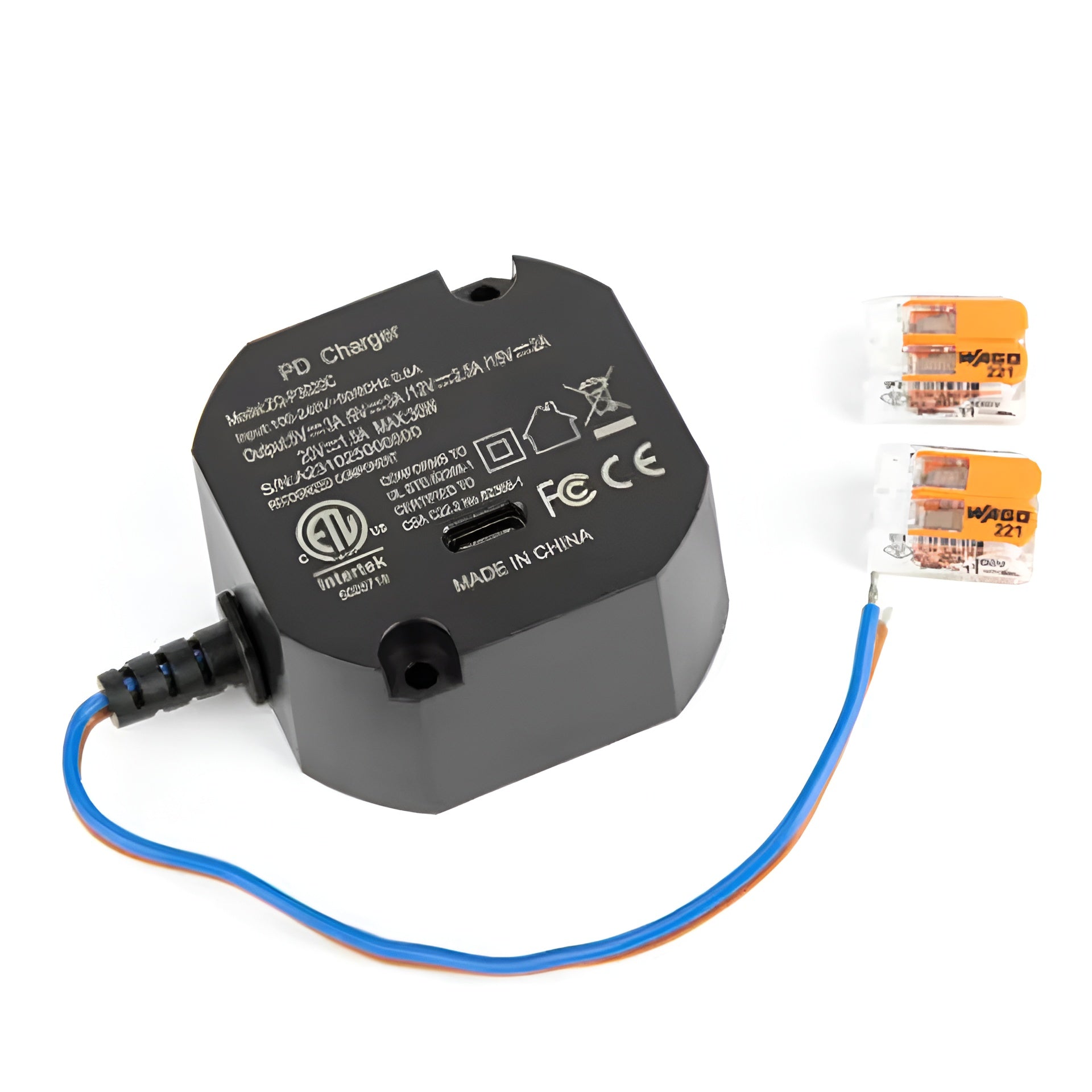

The ZQ-P3020C is a flush wall-mounted USB-C power adapter designed to provide continuous power to tablets and USB-C devices in fixed installations. It converts mains AC power to USB-C Power Delivery, delivering up to 30 W output while remaining completely hidden behind the device.

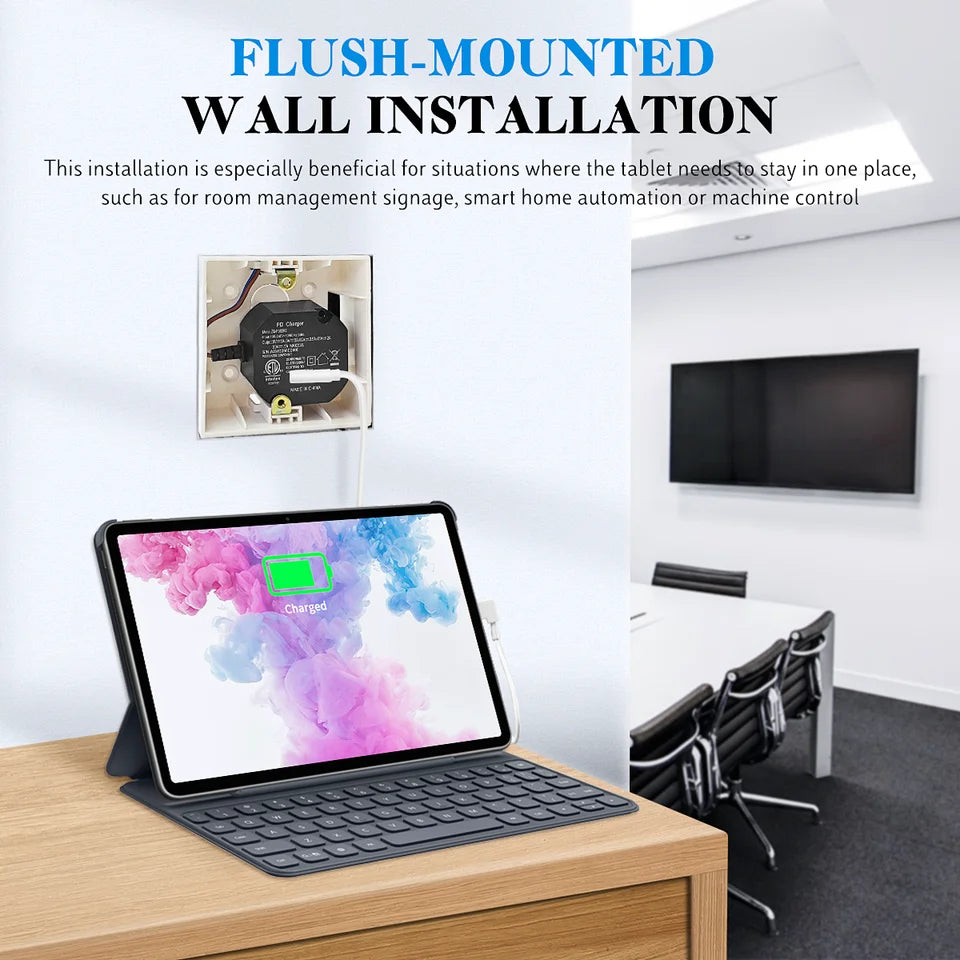

Designed for flush-mounted tablets such as Apple iPad, Samsung Galaxy Tab, and Microsoft Surface, the adapter installs inside a standard US single-gang or European wall box. Its compact form factor allows the tablet to mount directly over the opening with no visible power supply, making it suitable for professional wall-mounted control panels and kiosks.
Key Features
Use Cases
What’s Included
Technical Specifications
Power

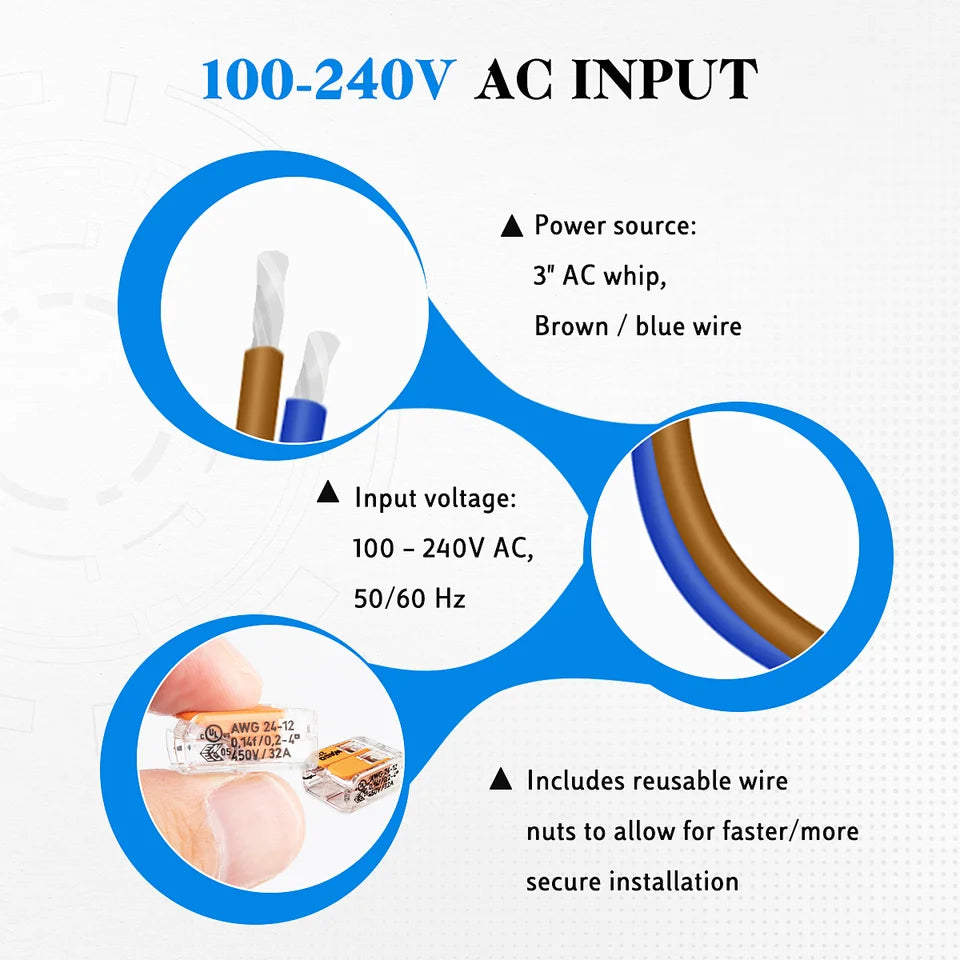

Input voltage: 100–240 V AC, 50/60 Hz
Input current: 0.8 A
Output power: Up to 30 W
Output profiles: 5 V 3 A, 9 V 3 A, 12 V 2.5 A, 15 V 2 A, 20 V 1.5 A
Isolation: Class II, 1500 V isolated
Input current: 0.8 A
Output power: Up to 30 W
Output profiles: 5 V 3 A, 9 V 3 A, 12 V 2.5 A, 15 V 2 A, 20 V 1.5 A
Isolation: Class II, 1500 V isolated
Connections
AC connection: 3-inch AC whip
USB output: USB-C female
USB output: USB-C female
Physical
Colour: Black

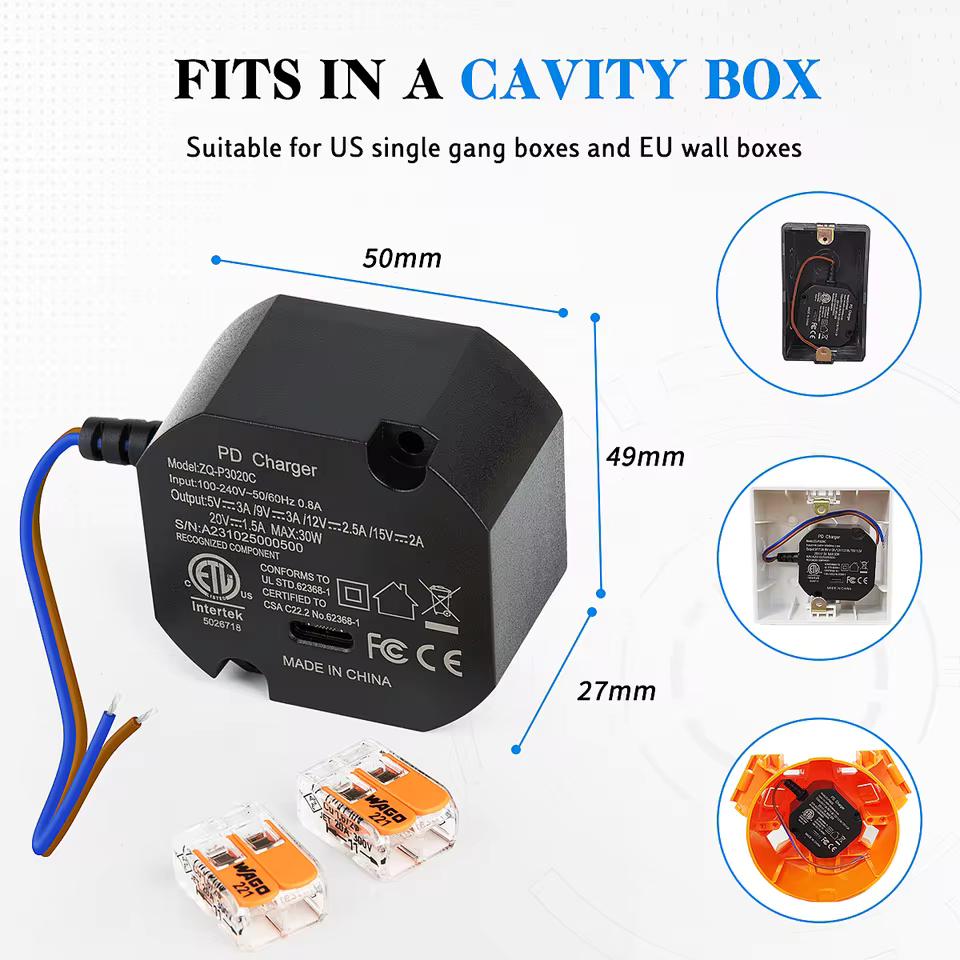

Dimensions: 49 × 50 × 27 mm
Cable length: Approx. 140 mm
Mounting: In-wall, cavity box installation
Wall box compatibility: US single-gang and EU wall boxes
Dimensions: 49 × 50 × 27 mm
Cable length: Approx. 140 mm
Mounting: In-wall, cavity box installation
Wall box compatibility: US single-gang and EU wall boxes
