Setting up HAOSKiosk

Turn Your Home Assistant Box into a Big-Screen Kiosk (No Extra PC Needed)

Want your Home Assistant dashboard on the TV or a wall-mounted touch display plugged into the same device that’s running Home Assistant OS?

With the community HAOS Kiosk add-on you can launch a full-screen Chromium “kiosk” over HDMI — no separate tablet, Pi, or desktop required. Setup takes minutes and survives reboots.

---

What You’ll Need

• A device running Home Assistant OS (Home Automation Server or Raspberry Pi 4/5).
• A display connected to that device (HDMI, DisplayPort adapter).
• Your Home Assistant URL (e.g. http://homeassistant.local:8123 or the box’s IP).
• The HAOS Kiosk add-on repository URL: https://github.com/puterboy/HAOS-kiosk

---

Step 1 – Add the HAOS Kiosk Repository

Tip: If it doesn’t appear straight away, refresh the page or try again — typos in the URL are the most common cause.

---

Step 2 – Create a “Kiosk” User

---

Step 3 – Configure the Kiosk

1. Open the Configuration tab in the add-on.
2. Fill out:
   • URL: http://homeassistant.local:8123
   • Username / Password: Kiosk credentials
   • Rotation / Scale: Adjust for screen readability
   • Auto-reload / Retry: Enable to recover from reboots or slow startups

---

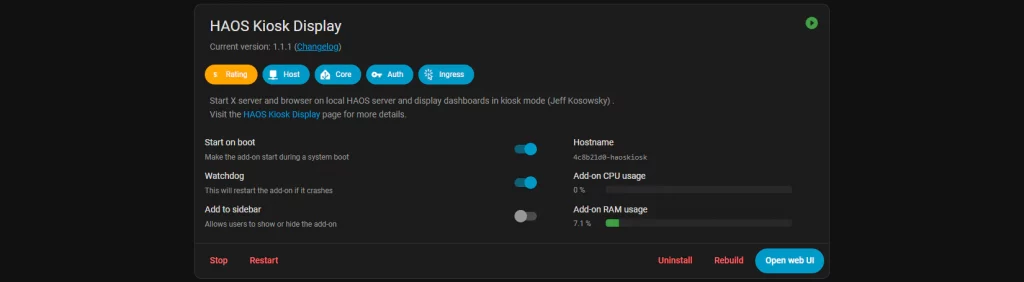

Step 4 – Start the Add-On

• Toggle Start on boot and Watchdog (recommended).
• Click Start.

---

Step 5 – Plug In and Enjoy

• Connect HDMI to your display.
• Restart the add-on (or the host).
• You should see your Home Assistant dashboard in full-screen on boot.

---

Troubleshooting

Add-on not showing up after adding the repo?
Double-check the URL, refresh the Add-on Store, and ensure you’re on Home Assistant OS (not just Container/Core).

Black screen / no signal on HDMI:
Verify the display is powered, try another cable/port, and confirm your device outputs to that connector (some mini-PCs have multiple display ports). Reboot the host after first install.

Touch rotation or scaling is off:
Adjust screen_rotation and device_scale_factor in the add-on config. For some touchscreens you may also need to calibrate in the add-on options.

HA starts after the browser:
Turn on retry/auto-reload in the add-on so it reconnects once HA is available.

---

Security & Housekeeping

• Least-privilege user: the Kiosk user should have access only to the dashboards it needs.
• No cloud exposure needed: the kiosk points at your LAN URL; you don’t need to open ports to the internet.
• Backups: the add-on config is included in regular HAOS backups.

---

FAQ

Can I point the kiosk at a specific view?
Yes — use a direct URL such as /dashboard/kiosk/0 or your chosen view path.

Does this work on Raspberry Pi and x86?
Yes. Performance depends on GPU/driver support, but Pi 4/5 and modern mini-PCs generally handle a single kiosk screen well.

Can I use a long-lived access token instead of a username/password?
Currently, the add-on supports standard username/password login. Long-lived tokens are not officially supported yet, but have been requested and this may change in future versions.

Can I run multiple displays?
HAOS Kiosk is designed for one local display. For multi-screen walls, consider additional devices or a separate OS driving a browser per screen.

What about CPU temperature and system stats on the dashboard?
Add the System Monitor integration or the Glances add-on/integration and drop those sensors onto your kiosk dashboard.

---

Why This Approach?

• One box, zero faff: No second machine required
• Appliance-like: Boots directly into dashboard
• Flexible: Supports rotation, scaling, auto-login, and retry

---

Credits

Community Add-on:
🔗 HAOS Kiosk Repository
Tested with HAOS on Raspberry Pi 4/5 and x86 mini-PCs.
