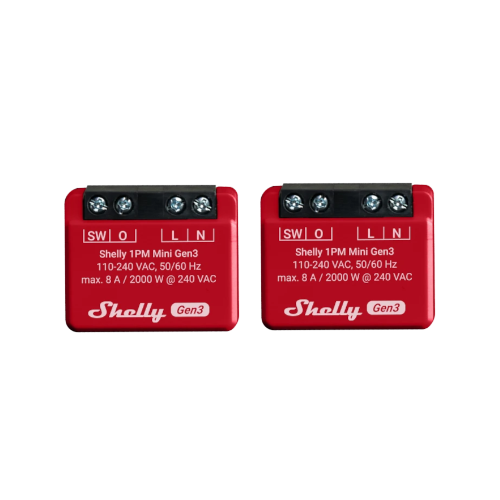

Shelly 1PM Mini Gen3 (2-pack)
Original price
£27.99
-
Original price
£27.99
Original price
£27.99
£27.99
-
£27.99
Current price
£27.99
Availability:
in stock, ready to be shipped

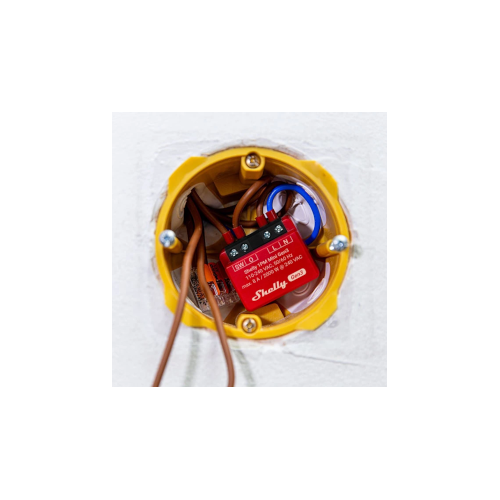

Shelly 1PM Mini Gen3 is an ultra-compact Wi-Fi smart relay with built-in power monitoring, designed to automate lights and small electrical appliances while tracking energy usage in real time. Its Mini form factor allows installation behind wall switches, sockets, or inside tight electrical boxes where space is limited.
Powered by the Shelly Gen3 platform with the ESP-Shelly processor and expanded memory, the device delivers faster performance, improved reliability, and advanced automation features. It connects directly to your Wi-Fi network with no hub required and integrates with platforms such as Home Assistant, Alexa, and other automation systems.
Key Features
Use Cases
What’s Included
Technical Specifications
Electrical
Power Supply: 110–240 V AC
Power Consumption: < 1.2 W
Relay Type: NO contact, single pole
Max Switching Voltage: 240 V AC
Max Switching Current: 8 A
Max Switching Power: 2000 W
Power Measurement: Yes
Power Consumption: < 1.2 W
Relay Type: NO contact, single pole
Max Switching Voltage: 240 V AC
Max Switching Current: 8 A
Max Switching Power: 2000 W
Power Measurement: Yes
Environmental
Operating Temperature: -20 °C to 40 °C
Humidity: 30% to 70% RH
Max Altitude: 2000 m
Humidity: 30% to 70% RH
Max Altitude: 2000 m
Connectivity
Bluetooth Protocol: 4.2
Bluetooth Range:
Up to 10 m indoors
Up to 30 m outdoors
Bluetooth Range:
Up to 10 m indoors
Up to 30 m outdoors
Hardware
Processor: ESP-Shelly-C38F
Flash Memory: 8 MB
Schedules: Up to 20
Webhooks: 20 (up to 5 URLs each)
MQTT: Yes
Scripting: Yes
Flash Memory: 8 MB
Schedules: Up to 20
Webhooks: 20 (up to 5 URLs each)
MQTT: Yes
Scripting: Yes
Physical

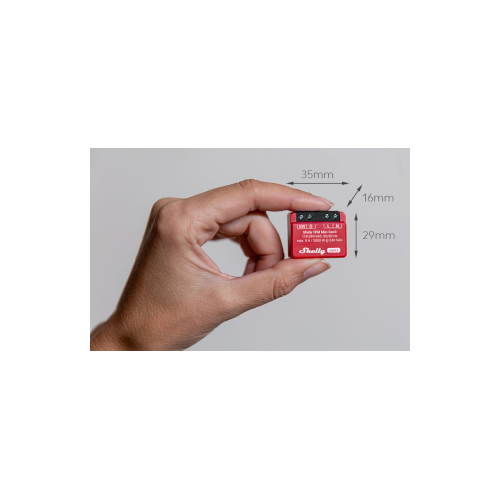

Dimensions (H × W × D): 29 × 34 × 16 mm
Weight: 18 g
Mounting: Wall box installation
Weight: 18 g
Mounting: Wall box installation
