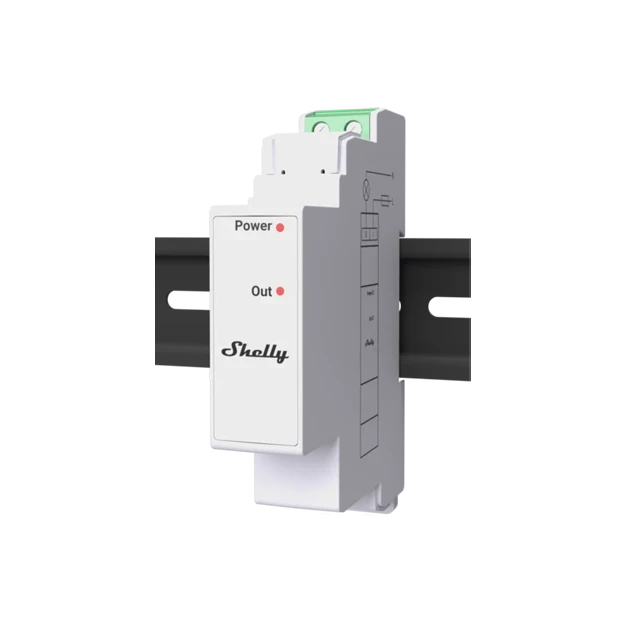

Shelly Pro 3EM Switch Add-On
Original price
£21.99
-
Original price
£21.99
Original price
£21.99
£21.99
-
£21.99
Current price
£21.99
Availability:
Low stock

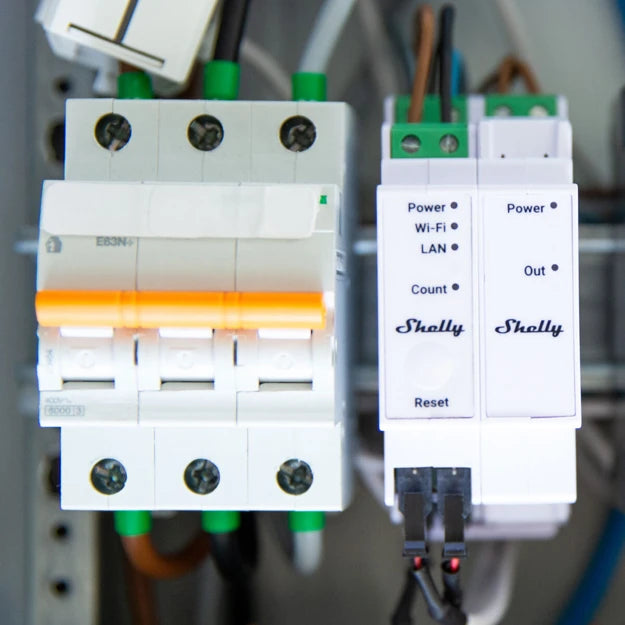

Add-on for Shelly Pro 3EM
A galvanically isolated switch designed to expand the capabilities of your Shelly Pro 3EM device. This add-on allows you to easily control contactors and other electrical devices, giving you greater flexibility and control over your consumption.
- Dry contacts
- DIN-rail mountable
*Only compatible with Shelly Pro 3EM!
Specifications
| PHYSICAL | |
|---|---|
| Size (HxWxD): | 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in |
| Weight: | 20 ±1 g / 0.70 ±0.05 oz |
| Mounting: | DIN rail, attached to a Shelly Pro 3EM |
| Screw terminals max torque: | 0.4 Nm / 4.43 lbin |
| Conductor cross section: | 0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded and bootlace lugs) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
| Shell material: | Plastic |
| Color: | White |
| ENVIRONMENTAL | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| ELECTRICAL | |
| Power supply voltage AC: | N/A |
| Power supply voltage DC: | 3.3 V and 12 V (from Shelly Pro 3EM device) |
| Power consumption: | < 1 W |
| OUTPUT CIRCUITS RATINGS | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | 30V |
| Max switching current AC: | 2A |
| Max switching current DC: | 2A |
