Shelly Wave 2PM
£31.99
5 in stock
Overview

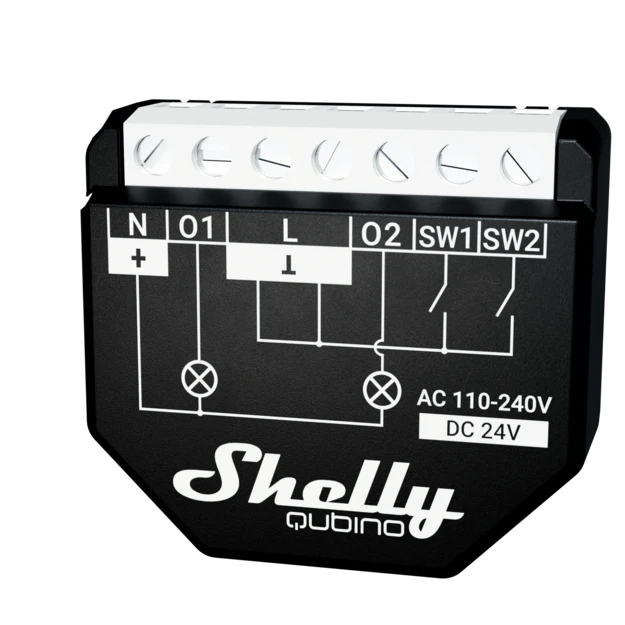

Shelly Wave 2PM is a compact 2-channel Z-Wave smart switch with integrated power metering, designed to independently control two electrical circuits while monitoring energy usage per channel and in total. Built on the Z-Wave 800 Series platform, it delivers improved range, security, and reliability for modern smart homes. Supporting AC or DC power input and SmartStart inclusion, Shelly Wave 2PM is ideal for lighting circuits and small appliances where separate control and clear energy visibility are required.
Key features
- Two independent relay channels in a single in-wall module
- 2 × 10 A outputs with 16 A total (18 A peak)
- Power metering per channel and combined total consumption
- Supports AC or DC power supply
- Very low idle power consumption under 0.3 W
- Built on Z-Wave 800 Series (S800) chipset
- SmartStart QR-code inclusion for fast setup
- Security 2 Authenticated with AES-128 encryption
- Over-the-air firmware updates via Z-Wave gateway
- Acts as a Z-Wave repeater in mesh networks
Product information
Use cases
- Dual Lighting Circuit Control
- Independently control two lighting circuits from a single in-wall module.
- Appliance Switching with Energy Visibility
- Switch small appliances while monitoring power usage per channel and in total.
- Energy Monitoring and Optimisation
- Track real-time and cumulative energy consumption to optimise usage and detect inefficiencies.
- Z-Wave Mesh Expansion
- Strengthen Z-Wave network coverage by acting as a repeater node.
Technical specifications
Power
Power supply AC
110–240 V AC, 50/60 Hz
Power supply DC
24 V DC ±10%
Power consumption
< 0.3 W
Switching Ratings
Max switching voltage AC
240 V
Max switching current AC
10 A per channel, 16 A total (18 A peak)
Max switching voltage DC
30 V
Max switching current DC
10 A
Power measurement
Yes
Z-Wave
Chipset
Z-Wave 800 Series (S800)
Frequency band (UK/EU)
868.4 MHz
Security
Security 2 Authenticated (AES-128)
Repeater function
Yes
Typical indoor range
Up to 40 m (environment dependent)
Max RF output power
< 25 mW
Environmental
Operating temperature
−20°C to +40°C
Humidity
30% to 70% RH
Physical

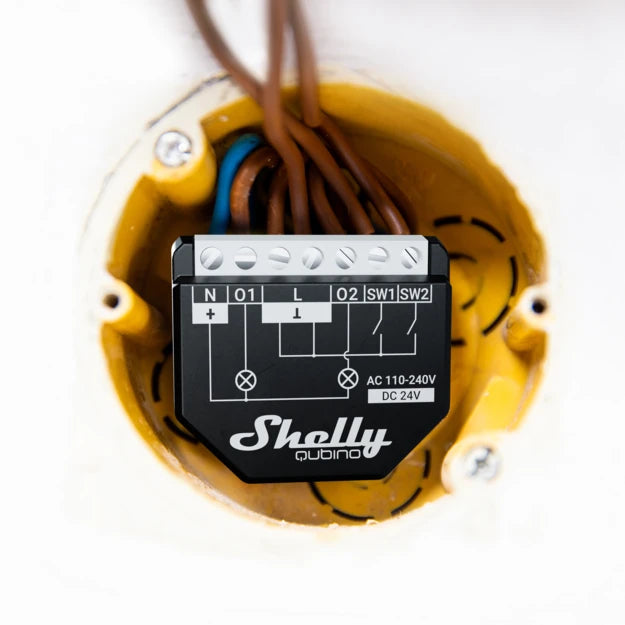

Mounting
In-wall
Dimensions (H × W × D)
42 × 37 × 16 mm
What’s included
- Shelly Wave 2PM smart switch
- Quick start guide
